Solid State Cockpit Voice Recorders (SSCVR) and Flight Data Recorder (FDR), aka "black boxes", are required by Civil Aviation Authorities to be installed in large commercial aircraft and some smaller commercial, corporate, and private aircraft used to help reconstruct the events leading to an aircraft accident. Manufactured by various manufactuers such as HONEYWELL AEROSPACE, UNIVERSAL™ AVIONICS and others they are offered in different models, as CVR, FDR or combined systems, certified by FAA, EASA and other CAAs and available in NEW Condition but also as USED (OVERHAULED) units for straight purchase or exchange. For additional information please consult the Product Description section, the supplied documentation or contact us for a quotatin.

The PAI-700 TSO'd Vertical Card Compass is manufactured exclusively by Precision Aviation, Inc. This non-liquid (dry) type compass is magnet driven thus it is subject to lead and lag, however, these tendencies are greatly reduced due to the absence of pendulosity.  It is inherently stable due to the use of eddy current damping which is a natural phenomenon built into the basic design and as such has no overshoot. The PAI-700 has been designed to replace the float/liquid type compasses eliminating leaking fluid or backward azimuth readings. Available for Southern and Northern Hemisphere and different supply systems (5V, 14V and 28V). Precision Avionics Inc. also manufactures different compass brackets for overhead or glare shield mounting.

The Precision PAI-700  Vertical Card Compass consists of a 2" vertical rotating dial which is compared with a fixed miniature airplane (lubber line) to present the magnetic heading of the aircraft at all times. Heading information is more natural because the heading is read at the12 o'clock position and off the nose of the miniature aircraft. The compass card rotates and presents all quadrants in their true relation to line of flight. Requires no power (except for lighting) to operate. Installed in many current production aircraft & helicopters. Size: 2-7/8"H x 2-3/8"W x 2-1/8"D. Wt. 0.6 lb. After installing compass must be compensated using standard compensation procedures. Also used in sailplanes.

Note: Compass deviation card is included. A mount, sold separately, is required for installation with the unit.

SCINTEX complete kit with digital gauge and dual flow meters enabling monitoring of the engine's supply and return lines. It comes with 2 fittings for each flow meter (to be specified at the time of ordering) and clamps. For installation wiring between the flow meters and the display unit is required (not included). This kit is intended for use in vehicles, machinery, generators and boats / marine and other engine applications. The flow meters are precision cut from steel and aluminum and they are highly accurate, repeatable and suitable for use with diesel, biodiesel, unleaded petrol and other fuels. The display unit is a 1.8”, high resolution, sunlight readable, wide viewing angle, LCD colour display with a completely sealed and waterproof display front panel. The gauge enclosure is a common 52mm round size to fit many existing cutouts. Key features include highly accurate with good repeatability displays consumption in Litres per Hour or other units, fuel remaining in up to 2 tanks, connection capabilities to a NMEA enabled RS232 GPS receiver,  one or two fuel flow senders and fuel level senders and a single fuel pressure sender and display. It can be powered by 12V - 36V power supplies. Please refer to the additional information and specifications provided or contact us.

HONEYWELL BENDIX KING® Aviation Database Services are offered for database updates of different navigation BENDIX KING® devices. They cover different geographical areas and are available for use in single or multiple devices, as single (one cycle) or multiple scheduled annual update cycles per year. They can be distributed through media (database cards/cartridges) and/or internet downloads (eliminating media and shipping costs). Database upgrades are subject to copyright restrictions and are allowed for use only in the specific aircraft and devices specified at the time of ordering. Orders for HONEYWELL BENDIX KING® database updates are fulfilled by AVIATIONEU TRAINING SYSTEMS & SERVICES which offers aviation database services, in cooperation with respective database providers, on a simplified subscription-based ordering process saving man effort, time and costs for customers. Please refer to our listed services or contact us for additional information.

MIL-DTL-38999 Series I Connectors are high-performance cylindrical connectors used on  aerospace and other applications. Sourced from reliable manufacturers such as AMPHENOL, TE CONNECTIVITY, CORSAIR and others they are offered in different sizes,  shell styles, materials and finishes. Designed for rugged reliability, they provide excellent vibration, corrosion and shock resistance, and offer excellent EMI protection and shielding effectiveness. Please refer to the supplied documentation for additional information.

These precision quartz electric aircraft clocks are constructed for easy installation in a wide variety of replacement applications for home builts. The rugged quartz movement is accurate within 2 sec. in 24 hrs under normal operations and runs accurately in temperatures from -30º to 180ºF. Available in 14 Volt or 24 Volt versions.

Product Specifications:

OD: 2-1/4"

Depth: 2"

Weight: 4 ounces

HONEYWELL BENDIX KING® KA 51B is a slave meter used in the KCS 55A compass system. Displays slaving error between the KMT 112 flux valve and KI 525A pictorial navigation indicator by means of small meter movement.

For use with most GPS and TAWS systems. Works well with most of today's mode S transponders.

The ACK A-30.5 altitude encoder adds Mode C capability to aircraft in the most cost-effective way. The ACK encoder is the smallest, lightest, highest quality encoder available today and features the latest solid-state electronics for high reliablity. Installation is quick and easy and usually is completed in less than one hour. It is compatible with most transponders in use today and reports altitude to 30,750 ft. Includes quick-release mounting try, 4-ft. color-coded wiring harness with prewired jack, static line and fittings for installation in any aircraft, and installation manual in any aircraft, and installation manual with popular transponder pin-outs. 3 year warranty.

Product Includes:

• Quick Release Mounting Tray

• 4 Foot Harness

• 4 Foot Static Line

• Installation Manual

Product Features:

High Quality Construction

Gold Plated Connectors

Diecast Aluminium Chassis

Anodized

Product Specifications:

Approvals: FAA TSO C-88a

German LBA 10.221/4

Range: MOD 4 –950 to 30,750 feet /w gray code Output MOD 8 –950 to 42,000 feet /w 2x RS232 Outputs

Accuracy: Typical +- 20 feet Maximum +- 50 feet

Size: L 6” W 2.65” H 1.3”

Weight: 5.1 oz (144 grams)

Operating voltage: 10 to 32 VDC

Operating current: 60 mA typical

Operating temp: -4 to +131° F -20 to +55° C

Warm-up current draw: 14VDC 420 mA 28VDC 220 mA

Warm-up time: 70° F ambient 60 seconds 0° F ambient 210 seconds

Altitude resolution: Gray code (parallel) output 100ft

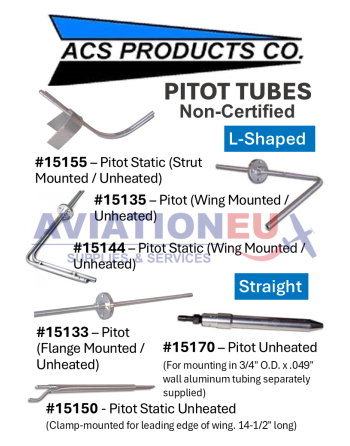

ACS Model 15144 'L' shaped, aluminium pitot heads are simple, inexpensive, good-quality suitable for homebuilts. They are available either as pitot only or pitot static. Both have flange mounting to aid underwing fitting.

AeroControlex ST300-2PT 28V electric heated static port is FAA/PMA approved for use on Embraer ERJ145, Tucano GA Predator, Pilatus PC-9, Shorts SD330, SD360, Rockwell Commander, Bandierante and Westwind aircraft.

Dimensions (L x W x H): 7.38 x 6.38 x 5.32 in.

Weight: .88 lb

AERO INSTRUMENTS® Company, now part of AEROCONTROLEX® Group, Inc., has been a supplier of Air Data Sensors for aircraft applications for over 85 years. AEROCONTROLEX® current manufacturing  of Air Data Sensors has been transitioned to AEROSONIC® Corporation which manufactures aviation instrumentation and avionics equipment including air data systems, standby displays, digital and mechanical standby instruments, sensors and probes.

AEROSONIC® / AEROCONTROLEX® extensive portfolio of pitot probes, including pitot, pitot static and pitot/angle-of-attack probes, are designed and today in use  on a wide range of aircraft ranging from military and large commercial transports to helicopters and UAVs , meeting the requirements of virtually any type of aerospace application. Product range  includes electrically heated pitot probes, pitot-static probes, static pressure ports, angle of attack, temperature sensors and flight test equipment for the aerospace and defense industries. They are designed to meet or exceed all applicable standards, including SAE AS393, DOD MIL-T-5421B, TSOC-16, AN5813 and BS2G.135 and feature heating elements to prevent ice accretion and water ingression for reliable operation in the most adverse environmental conditions. AEROSONIC® / AEROCONTROLEX® Pitot Probes are designed with rugged heating elements to prevent ice accretion and water ingression for reliable operation in the most adverse environmental conditions. Probes may be configured as stand alone with pneumatic outputs to the Air Data Computer, or they may integrate the computing function and eliminate the pneumatic connection.

Product Information & Features:

All probes are customizable to customer requirements

Common plating options available: chrome, dull chrome and electroless nickel

Electrically heated for anti-icing protection.

Enhanced dual heat zone in the mast and sleeve.

Multiple voltages available: 12V, 24V, 28V, 115V

Accuracy up to 600 knots

Temperature range -65°C to +70°C

Angle of attack ranges from -40° to 40°

Aircraft Applications:

Chinook CH-47

Cessna Citation

General Atomics Predator

Eurocopter EC135/145

Dash-8

Bell Helicopter 204/206/407/429/430

Boeing Apache

Piper Maibu

Agusta Westland AW609
