AVIATIONEU NEA ERA Aviation (Air Crew) Headsets
Sourced from quality manufacturers, our own branded (AVIATIONEU NEA ERA) aviation (air crew) headsets are offered in two main families or series (100 and 400) each with PNR and ANR models suited for use in fixed and rotary wing aircraft.

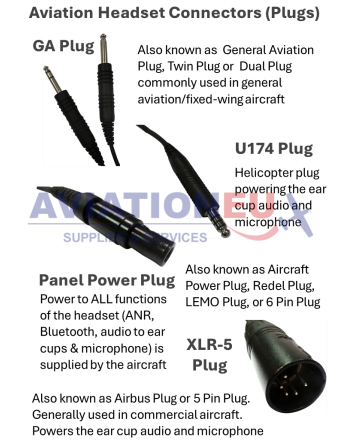

Two different plug types are offered, PJ-055/PJ-068 dual plugs widely used in General Aviation and other airplanes and Military grade U174 plug used on helicopters and military aircraft.
With their competitive prices, advanced design and features, quality materials and rigid construction, AVIATIONEU NEA ERA headsets combine performance, functionality and comfort to provide cost effective solutions for air crew communications.
ANR models (*) are offered with or without Bluetooth capability for music and mobile communications. All our headsets are accompanied by the Manufacturer and our Certificate of Conformance and come with a 12-months manufacturer warranty.

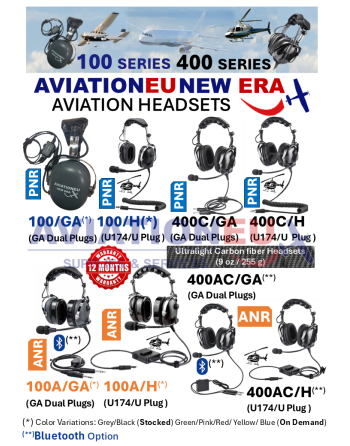

100 Series
AVIATIONEU NEA ERA 100 Series of aviation headsets includes PNR model 100 (GA) with dual plugs for airplanes and 100 (H) with U174 plug for military/helicopter operations. They feature 23dB and 24dB noise reduction ratings respectively. 100 Series PNR headsets are Low cost, entry level headsets, ideal for General Aviation pilots and flight schools. Their ANR counterparts (Models 100A (GA) & 100A (H) are offered with a 29dB noise reduction rating and without or with Bluetooth capability, indicated by the letters "BT" in the product reference number (SKU). Pilots' style requirements are also covered through multiple colors, with Grey/Black (commonly stocked) and Green/Pink/Red/Yellow/Blue (On Demand as special order).
AVIATIONEU NEA ERA 100/100A Series Headset Features/Specifications and Model Differentiations
Fully adjustable spring steel headband, half gel/half foam (or optionally, full gel) ear pads, low-profile volume control knob, 270 deg. spring tension boom, noise-canceling electret (or optionally, dynamic) microphone, clear hear audio speakers, small battery box with toggle switch. Supplied with GA dual plugs or U174/U plug.
Passive noise reduction (PNR) headset with electret microphone (Models 100/100H)
Noise Reduction Rating (NRR): PNR 23dB (Models 100/100H)
Active noise reduction (ANR) headset with electret microphone (Model 100A)
GA PJ-055/PJ-068 dual plugs (PNR & ANR (GA) Models)
Military grade U174/U Plug (PNR & ANR (H) Models)
Noise-canceling electret microphone (or optionally, dynamic microphone)
Strong flexible boom for perfect microphone adjustment
Fully adjustable spring steel headband (Model 100A)
Super soft foam head pad
Half gel and half foam ear pad (Models 100/100H)
Low-profile volume control knob
Small battery box with toggle switch (Model 100A)
Clear Hear performance audio speakers (Model 100A)
Weight: 530 g (PNR) / 365 g (ANR) Models
Available in different colors:Grey/Black (Stocked) and Green/Pink/Red/Yellow/Blue (On Demand)
Manufacturer Warranty: 12 months
AVIATIONEU NEA ERA 100/100A Series Headset Specifications and Model Differentiations
Headphone:
Type: Dynamic (F50)
Frequency Response:100Hz to 8 kHz
Sensitivity:95+/-5 dB SPL (1 kHz, 1 mW input per earcup side)
Full volume on ear simulator
Impedance:150 ohms (300 ohms each; wired in parallel)
Rate Input:100mW
Max. Input: 250mW
Microphone and Amplifier:
Element Type: Noise-canceling electret
Frequency Response:100Hz to 5 kHz
Operating Voltage (supplied by aircraft ):8-32 Volts DC
Matching Impedance: 150-1000 ohms
Sensitivity:-33+/-4 dB (ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load)
Operating Temperature: -20 to 70 °C
Cordage (from headset to Intercom connection plug): Straight cord 130 cm (Model 100) / 150 cm (Model 100A)
Cordage (from headset to Intercom connection plug): RAN-1000AH Coiled cord 70 cm (Model 100AH)
Earphone Plug: PJ-055 ( .25"F6.3 phone plug)
Microphone Plug: PJ-068 ( .206"F5.2 phone plug)
Headset size range height: 10 to 14 cm
Boom: Spring tension boom
Noise Reduction Specifications:
Attenuation Frequency Band: 20Hz~20KHz
Main Attenuation Frequency Band: 20Hz~600Hz
Attenuation Capability: 18~21dB
Power Consumption: 30 mW
Headset size range height: 10 to 14 cm
(*) ANR function is powered by an AA battey in a supplied battery box with toggle switch. The headset will shut off automatically when unplugged from the battery box, manually turned off from the toggle switch or when the radio or avionics master switch is turned off.
Aircraft equipments or intercoms should be working when ANR function is in use. ANR function is powered by a 9V battery from supplied battery box (not equipments or intercoms). When the battery power is low, the red LED indicator will flash. The Active Noise Reduction will cease to operate after one hour.

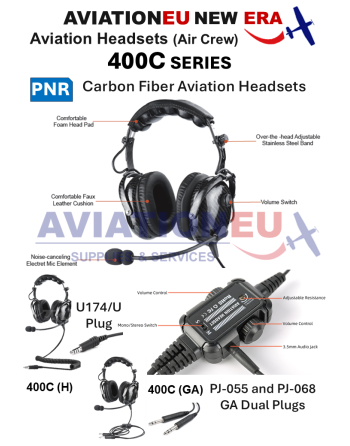

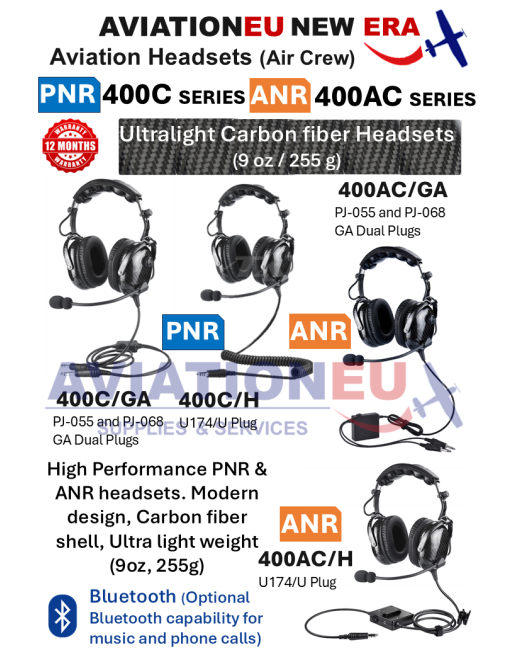

400C Series (Ultra Light Carbon Fiber Aviation Headsets)
Combining high performance, modern design, robust construction and an ultralight weight (only 9oz, 255g) the AVIATIONEU NEA ERA 400C series headsets are intended for use in air transport and military operations or by demanding pilots who seek high performance, functionality and confort headsets with an ultra light weight. Offered in carbon fiber black color. Various models include:

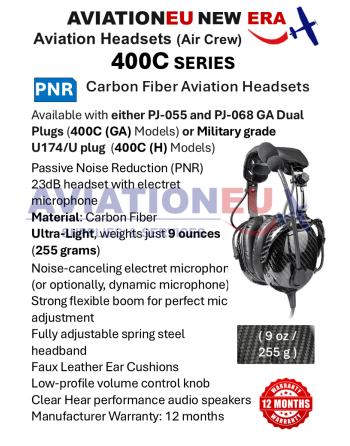

400C (GA) and 400C (H) PNR and 400AC (GA) and 400AC (H) ANR headsets offered with dual plugs and U174 single plug respectively and a noise reduction capability of 23dB (400C PNR) 29dB (400AC ANR).They come with or without Bluetooth capability.
Product Features (Depending on selected model)
Fully adjustable spring steel headband, faux leather ear cushions for extra comfort, noise-canceling electret (or optionally, dynamic) microphone with a 270 deg. rotatable boom, premium speakers and microphone for crystal clear audio and standard S/M switch, with dual volume control knobs on the control module, PJ-055/PJ-068 dual plugs (airplanes) or military grade U174 plug and a tough, durable coil cord (helicopters).

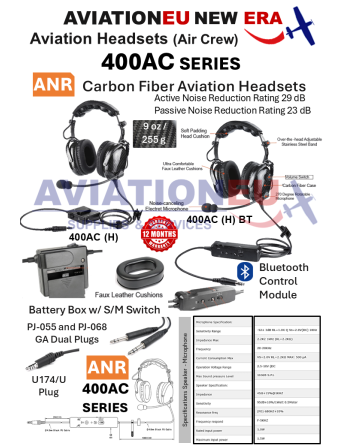

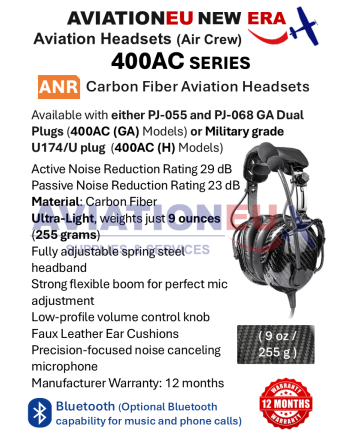

AVIATIONEU NEA ERA 400AC Series Headset Features & Specifications (model without Bluetooth)
Material: Carbon Fiber
Weight: 9oz / 255g (nearly half of other aviation headsets)
Earphone Plug PJ-055, Microphone Plug PJ-068 (Models 400AC/400AC-BT))
Military grade U174 plug (Model 400AHC-BT)
Straight cord from headset to molded plug, 150 cm.
Boom: Spring tension boom
Active noise reduction ratings (NRRs): 29dB (*)
Passive noise reduction ratings (NRRs): 23dB
Small AA battery box with toggle switch
Ultra comfortable faux leather cushions
Clear Hear performance audio speakers
Noise-canceling electret Microphone (or optionally, dynamic) microphone
Fully adjustable spring steel headband
Low-profile volume control knobs on ear cups
Optional Bluetooth capability for music and phone calls (400AC-BT/400AHC-BT)
Manufacturer Warranty: 12 months
Microphone Specifications
Sensitivity:- -52+/-3 dB RL=1.0K Q Vs=2.0V(DC) 1KHz
Impedance Max: 2.2 K2 1KHz (RL=2.2KΩ)
Frequency: 20Hz-20KHz
Current Consumption Max: VS=2.0 V RL=2.2KΩ Max: 500μA
Operating Voltage: 2.5-10 Volts (DC)
Max, Sound Pressure Level: 110 dB S.PL
Speaker Specifications
Impedance: 450Ω+15%@1KHz
Sensitivity: 95 dB+10%/1 Watt 0.5 Meter
Resonance Frequency: (FO) 680 Hz+20%
Frequency response: F-5KHz
Rated input power: 1.0 W
Max. input power: 1.5 W
(*) The headset will shut off automatically when unplugged from the battery box, manually turned off from the toggle switch or when the radio or avionics master switch is turned off. Aircraft equipments or intercoms should be working when ANR function is in use. ANR function is powered by a 9V battery from supplied battery box (not equipments or intercoms). When the battery power is low, the red LED indicator will flash. The Active Noise Reduction will cease to operate after one hour.
