GOEBEL® is leading manufacturer of high quality fasteners with product lines extending from blind Rivets, self-tapping/drilling screws, and sealing washers, to drill bits, nut drivers, toggle latches, hand & power tools, PPE equipment, and many more innovative specialty products. GOEBEL® blind rivets, much like other GOEBEL® fastening products, are widely recognized used by leading companies in nearly every industry including oil & gas, automotive, HVAC, railroad, aerospace, telecommunications, and construction.

Blind rivets are offered in different product families in different materials, finishes head styles and sizes to meet intended application requirements. They include Standard, Multi-Grip, Semi Structural & Structural, Tri-Folding & Load Spreading as well as Specialty blind rivets. More information on GOEBEL® Structural Blind Rivets is included in the Product Description. Additional information on GOEBEL® Blind Rivers is also available in the documentation in the Attachment section.

Rivet cutters of different types are commonly used in Aerospace and many industrial applications. These quality heavy duty tools are made by different manufacturers mostly in hand-held but also in bench mounted versions and can be used for cutting rivets of aluminum and other materials od different diameters and lengths. Some of them are briefly presented below.

ATI® TOOLS 501 series aerospace heavy duty rivet cutters are designed to quickly and easily shear aluminum rivets. They are adjustable for 1/4˝ to 3/4˝ long rivets in 1/16˝ increments. Available in two models with standard handle (ATI 501R) and long handle (ATI 501S).

The RC-1 heavy-duty rivet cutter manufactured by LANCASTER PUMP is designed to mount onto a workbench (or held in vice), and will cut five (5) different diameter rivets, wire, and screws to any of seven (7) different lengths. It is made of hardened steel and the cutting surfaces are ground to exacting tolerances for consistently clean, distortion-free cuts. Accepts diameters: 1/16", 3/32", 1/8", 5/32", and 3/16". Cuts lengths: 5/32", 7/32", 9/32", 11/32", 13/32", 15/32", and 17/32". Shipping weight 3 lbs ( appr. 1.5kg).

For more information on these tools please consult the supplied documentation or contact us.

Blind rivets (also commonly referred to as POP Rivets) are mainly used in applications where there is no access to the rear (blind side) of the joint. They are two-piece fasteners consisting of the rivet body (aka shell, or hat) and the stem or mandrel, pre-assembled and ready to use. They are not material specific and therefore they can be used to join two different material types together.

Rivets are installed by using a riveting tool to draw the mandrel which causes the body to deform and clamp down on the joint. Upon reaching the designed clamping force, the mandrel snaps and is discarded.

They come in different materials, sizes, military or industrial standards, and cover a wide range of structural and non structural applications.

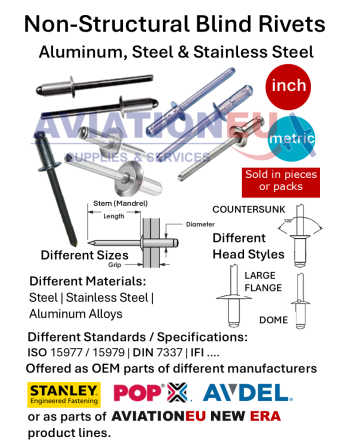

Non structural blind rivets are those designed for applications where the connection doesn't need to withstand significant load-bearing forces. They are offered by different  manufacturers under their respective brands, such as STANLEY® Engineered Fastening AVDEL® & POP®, and others but also as part of our own labelled (AVIATIONEU NEW ERA) product lines, sourced by quality suppliers and intended as cost-effective alternatives to OEM parts. Depending on the rivet, they are made of different materials such as steel, stainless steel,  alluminum alloys, or combinations, and supplied in different head styles, in Inch or Metric (M) diameters, lengths and grip ranges.

Blind rivets conform to national and international military, aerospace and industrial standards such as MS, AIA/NAS, DIN, ISO and others.

Non structural blind rivets produced in accordance with the German DIN 7337 Standard or respective replacing ISO Standards (ISO 15983 for Protruding Head, and ISO 15977 for Flat/Countersunk Head blind rivets) are offered as part of AVIATIONEU NEW ERA product lines.

Sold in pieces but mostly in packs with the number of rivets per pack indicated in the product SKU after the letters "PK". Appearing sale prices are per unit of sale used each time. Depending on the selected rivet & prevailing stock conditions alternate part numbers of the same rivet may be supplied in lieu of the ordered, meeting or exceeding Standard specifications. For additional information on different products please refer to the Product Description section, the supplied documentation or contact us.

Jo-Bolt is a trade name for an internally threaded three-piece rivet. A Jo-Bolt consists of three factory preassembled parts, a threaded steel alloy bolt, a threaded steel nut, and an expandable stainless steel sleeve. During installation the bolt is turned while the nut is held. This causes the sleeve to expand over the end of the nut, forming the blind head and clamping against the work. When driving is complete, a portion of the bolt breaks off. The high shear and tensile strength of the Jo-Bolt  fasteners makes them suitable for use in high-stress applications where some of the other blind fasteners would not be practical. Other advantages include their excellent resistance to vibration, weight saving, and fast installation by one person. Jo-Bolts are often encountered in the permanent structure of late model aircraft, in areas which are not often subjected to replacement or servicing. Manufactured to different aerospace standards such as NAS 1669, 1670, 1750, or 1751 they are offered as OEM parts of their respective producers or as respective Standard part numbers under our own labelled (AVIATIONEU NEW ERA) product lines.

Boeing & Airbus, the two leading airframe builders, have developed specifications for fasteners, hardware and other parts manufactured by different companies. Compliance with  Boeing (aka BAC) and Airbus (aka ASNA) Standards is a  prerequisite for installation or use of these parts on their respective aircraft. In many cases, Boeing & Airbus fasteners and other parts have the same fit, form, and function and they are considered as alternatives or substitutes to the respective parts designed and/or manufactured by industry leaders such as HI-SHEAR  or HOWMET in the case of fastening products.They also conform to widely accepted Military & Aerospace Standards such as AN, MS, NAS and others. However, caution is required as, depending on their series & conforming standard, fasteners are offered in Imperial (in.), Metric (mm) systems, or  both, with resulting variations in their dimensions and units of measurement of their properties.

As a result of the extensive portfolio of fastening products (including screws and bolts, nuts, washers, pins, rivets, clamps, and many others) from different leading suppliers, and those falling under Boeing, Airbus, Military and Aerospace Standards, these are listed separately in our Web Platform for Supplies.  It must be noted that, depending on the intended application, usually more than one options are available to prospective buyers and selection is finally made, apart from specifications, on the basis of price or lead time required for non-stock parts. Whenever possible,correlation tables and other information and documentation is provided to facilitate the users' awareness on interchangeability of offered fasteners and the selection of the right parts for their intended application. For additional information please contact us.

Blind rivets (also commonly referred to as POP Rivets) are mainly used in applications where there is no access to the rear (blind side) of the joint. They are produced in accordance with different standards specifying their properties, sizes/dimensions, materials, finishes, installation methods & other information for their application. A benefit of blind rivets is that they are not material specific and therefore they can be used to combine two different material types together.

This listing relates to those manufactured in accordance with National Aerospace Standards NAS 1919 & 1921, U.S. industry standards for the aerospace industry created and maintained by the Aerospace Industries Association (AIA).

NAS 1919 & NAS 1921 rivets are general-purpose, mechanically-locked blind rivets used in aerospace and industrial applications for creating permanent and strong joints. They feature a self-plugging, serrated stem and a protruding (NAS 1919) or 100° (NAS 1921) flush head style. Produced by different manufacturers (such as PCC CHERRY AEROSPACE or HOWMET AEROSPACE HUCK) they are offered in different materials (aluminum, corrosion resisting A286 stainless steel or Monel) and finishes, different nominal shank diameter sizes & corresponding grip ranges in inches.

NAS 1919 / 1921 rivets are sold under OEM brands and part numbers or as  Standard part numbers under our own branded (AVIATIONEU NEW ERA) product lines, in pieces or packs where the specified number of fasteners per pack is indicated after the letters "PK" in the product reference number (SKU).

Depending on the selected size & stock conditions alternate part numbers of the same fastener may be supplied in lieu of the ordered, meeting or exceeding Standard specifications. For more information please refer to the attached documentation or contact us.

AVERY TOOLS (*) manufactures and supplies gauges for shop rivet heads and rivet lengths.

AVERY TOOLS rivet head gauges are offered as a set of four gauges for -3, -4, -5, & -6 rivets. Each gauge measures MINIMUM height and MINIMUM diameter of shop heads AFTER setting. Eliminates guessing if your rivets are properly set. Works for measuring both universal head and flush rivets. Precision machined to size from 2024 aluminum. Rivet size permanently stamped on each gauge. Color coded anodized finish.

A rivet length gauge is also available to check for proper length of rivets BEFORE setting and can be ordered separately or as kit with the head gauges.

(*) AVERY TOOLS aviation tools and products are now available only through retail suppliers.

Economy models of gauges for shop rivet heads and rivet lengths are available from ATS.

ATS rivet head gauges are offered as a set of four gauges for -3, -4, -5, & -6 rivets. Each gauge measures MINIMUM height and MINIMUM diameter of shop heads AFTER setting. Works for measuring both universal head and flush rivets. Color coded anodized finish.

ATS rivet length gauge measures -3, -4, -5 & -6 rivets. Used to check length of rivets BEFORE setting. Works with universal and flush head rivets.

The set of rivet head gauges and the length gauge can be ordered as kit or separately.

ATS Pro-X rivet guns offer unmatched controllability when setting rivets of any type or size. They are used in aircraft manufacturing plants such as Boeing and Lockheed-Martin. With the improved variable power control, proper riveting can be accomplished with confidence.  Different models serve specification requirements (see attached table). 1/8" Aluminum (3/32" Steel) Rivet Capacity. These guns accept all .401 shank rivet sets and attachments. Non-slip Powder Coat Finish. 1/4" NPT Inlet. Lifetime ATS-Pro Warranty.

AICRAFT TOOL SUPPLY (ATS) is a manufacturer of tools and hardware for the aviation industry. ATS offers an extensive range of aircraft countersink cutters and piloted aircraft stop countersink cutters (aka Micro-Stop cutters or Microstop Countersinks) used to make precision countersinks to accept flush-head fasteners.

Our offered ATS countersinks include:

HSS 1/4-28 male threaded 3 cutting flute pilot cutters,

HSS 1/4-28 male threaded, 1/2” diameter zero flute pilot cutters,

HSS 1/4-28 male threaded removable pilot cutters with solid carbide tip (require 1500P pilot),

Hollow cutters designed to cut away swagged or threaded collars from fasteners,

Respective offered ATS Microstops include:

133-HD heavy duty Microstop Countersink with ball bearings for ultra smooth operation. The ball bearing design also makes it run much cooler than a standard microstop,

133-Mini Microstop Countersink for use  in tight areas that can’t be reached by a standard cage.

133-Slim Microstop Countersink packing all the features of a standard microstop in a slim design of only 11/16” in diameter.

 Complete kit is a great package deal featuring our 133

133 Microstop Countersink Kit which includes the Microstop and 4 pilot cutters (1000-100 series) in sizes #40, #30, #21, and #12. The kit is also offered with the countersink only.

For additional information please consult the supplied documentation or contact us.

AIRPRO INDUSTRY CORP. manufactures professional quality air tools, hand  & auto repair tools and accessories for professional applications under  the brand name AIRPROWU. AIRPROWU extensive product line ranges from aircraft tools to industrial, automotive/motorcycle ,tooling/molding, construction and auto body shop solutions and solutions for electronic assembly lines. AIRPROWU compression riveters include different models covering different capacity requirements for aluminum and steel. They come in different dimensions and are  offered with matching yokes to cover various application needs. Please refer to the specifications of individual compression riveters.

AIRPRO INDUSTRY CORP. manufactures professional quality air tools, hand  & auto repair tools and accessories for professional applications under  the brand name AIRPROWU. AIRPROWU extensive product line ranges from aircraft tools to industrial, automotive/motorcycle ,tooling/molding, construction and auto body shop solutions and solutions for electronic assembly lines. AIRPROWU product line of Hydraulic Riveters include pneumatic, industrial hydraulic, air hydraulic riveter tools and others. Please refer to the specifications of individual riveters.

Solid shank rivets are relatively low-cost,  permanently installed fasteners used as structural parts in aircraft and other applications where reliability and safety consist a priority.  These rivets are produced in accordance with military and other international standards such as US Army-Navy (AN) standard and Mil-Spec (MS) that followed. AN426/MS20426 and AN470/MS20470 Series rivets are solid aluminum rivets with countersunk head or universal head respectively. Sourced from quality suppliers they are offered as part of our own labelled (AVIATIONEU NEW ERA) product lines. They are  available in different diameters and lengths and sold by the pound (lb). Those designated by the letter "A" in their part numbers are "soft" rivets fabricated from 1100-grade aluminum with a tensile strength of 16,000 PSI while rivets designated by the letters "AD" are fabricated from 2117 aluminum and heat treated to the T4 condition. They have a shear strength of 26,000 PSI and a tensile strength of 38,000 PSI. For additional information please refer to the article on an overview of our fasteners, other supplied documentation, the individual product presentations or contact us.

Solid shank rivets are relatively low-cost,  permanently installed fasteners used as structural parts in aircraft and other applications where reliability and safety consist a priority.  These rivets are produced in accordance with military and other international standards such as US Army-Navy (AN) standard and Mil-Spec (MS) that followed. AN426/MS20426 and AN470/MS20470 Series rivets are solid aluminum rivets with countersunk head or universal head respectively. Sourced from quality suppliers they are offered as part of our own labelled (AVIATIONEU NEW ERA) product lines. They are  available in different diameters and lengths and sold by the pound (lb). Those designated by the letter "A" in their part numbers are "soft" rivets fabricated from 1100-grade aluminum with a tensile strength of 16,000 PSI while rivets designated by the letters "AD" are fabricated from 2117 aluminum and heat treated to the T4 condition. They have a shear strength of 26,000 PSI and a tensile strength of 38,000 PSI. For additional information please refer to the article on an overview of our fasteners, other supplied documentation, the individual product presentations or contact us.

Countersinking is used to ensure that flat head screws or fasteners sit flush against the workpiece. Countersinks used in aerospace and industrial applications are made of durable materials such as High Speed Steel (HSS) known for its hardness, toughness, and ability to withstand high temperatures. High Speed Steel (HSS) countersinks are well suited for cutting aluminum sheet metals. When combined with Cobalt, an alloying agent in steels to improve the hardenability, strength, and wear resistance in machining applications but also due to its ability to resist wear at higher temperatures, the  respective countersinks are often used for cutting stainless steel and other aluminum alloys.

Sourced from quality suppliers, integral (fixed) pilot Microstop countersink cutters are offered as part of our own labeled (AVIATIONEU NEW ERA) product lines. Made from HSS or HSS Steel with Cobalt, they consist ideal tools for aircraft manufacturers, aircraft maintenance/ repair stations or  industrial manufacturers for precise and accurate countersinking, cost-effective alternatives to other OEM products and and stocked by our suppliers for fast deliveries.

Offered in different flutes, body and pilot diameters and sold  either separately (*) or in custom sets to address specific customer needs in machining applications.

Because of the difference in composition between HSS and Cobalt, main strengths of HSS countersinks are their high hardness and wear resistance. Therefore, as a general rule, they consist a better choice when you want your countersinks to retain their strength even when exposed to extreme wear or abuse. For higher hardenability, strength, and wear resistance and in applications when when countersinks are to be exposed to extremely high temperatures, cobalt countersinks should best be used.

AVIATIONEU NEW ERA countersinks can be used with popular adjustable or Microstop countersinking units utilizing a threaded shank drive (sold separately). For additional information please consult the supplied documentation or contact us.

(*) Minimum Order Quantities apply depending on the selected countersinks or their sets.

MS20604 and MS20605 Standard pull-thru rivets are unique blind rivets typically used in nut plate applications. MS20604 and MS20605 series blind rivets are superseded by those of NASM20604 and NASM20605 respectively.They are both non structural blind rivets with universal head (MS20604) or 100 deg. flush head (MS20605). These rivets are ideal in circumstances with very limited clearance while allowing for a secure set on both sides of the application. The symmetrical insertion allows for access and installation on either side while retaining its blind rivet capacity of one-sided installation. NASM/MS 20604 rivets come with a Universal Head, allowing for ease of installation while retaining strength and security.

Sourced from quality manufacturers, NASM20604/MS20604 and NASM20605/MS20605 blind rivets are offered either as part of our own label (AVIATIONEU NEW ERA) product lines or as OEM parts of PCC CHERRY® AEROSPACE and other manufacturers (separately listed). They are available in different mil-spec approved materials, such as 2117-T4 grade Aluminum or 5056 Grade Aluminum, finishes and sizes. They are sold in packs of specified number of rivets per pack indicated after the letters "PK" in the product reference code (SKU).

Structural screws are made of alloy steel, are properly heat treated, and can be used as structural bolts. Those commonly used in aircraft applications are manufactured to aerospace/military standards/specifications. They are offered as part of our own branded (AVIATIONEU NEW ERA) product lines structured in different series based on the standard of their conformance. Some of the screws commonly used include NAS204 through NAS235 and AN509/AN525 series.

MS24694 Series structural screws have a 100° countersunk Phillips head. They replace the respective AN509 series structural screws of materials and finishes. Minimum tensile strength for steel is 125,000 psi. They are fabricated from alloy steel and cadmium plated per specification QQ-P-416A, Type II, Class 3 or 300 Series Stainless Steel unplated designated by the letters "S" and "C" respectively in the product part number after MS24694 and before the size number.

Sourced from quality suppliers, AVIATIONEU NEW ERA MS24694 series structural screws are offered in different thread sizes and lengths in inches and sold in pieces or packs of specified number of screws designated after the letters "PK" in the product reference number (SKU). For more information, please refer to the individual product presentations, the supplied documentation or contact us.

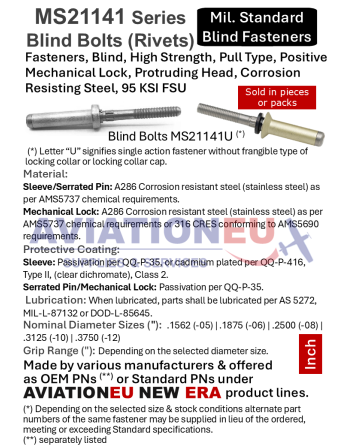

The MS21141 Series of blind fasteners are high srength pull type protruding head blind bolts (or otherwise termed as rivets) made of corrosion resisting steel (typically A286 stainless steel) with a 95 KSI shear strength. These fasteners are produced by different manufacturers and sold uder their respective brands and part numbers. Indicative examples include PCC CHERRY AEROSPACE CR7621 Series of Maxibolt® Blind Bolts or  HOWMET AEROSPACE Unimatic® UBP-EU Blind Bolt Fasteners. These blind bolts are offered in different nominal diameter sizes & corresponding grip ranges in inches, passivated or cadmium plated and with or without lubrication. They can be installed with the use of single action tools and they are supplied either as OEM part numbers of their respective manufacturer or MS21141 Standard part numbers under our own branded (AVIATIONEU NEW ERA) product lines. In the case of OEM parts, these are listed separately. Sold in pieces or packs where the specified number of fasteners per pack is indicated after the letters "PK" in the product reference number (SKU).

Depending on the selected size & stock conditions alternate part numbers of the same fastener may be supplied in lieu of the ordered, meeting or exceeding Standard specifications.

For more information please refer to the attached documentation or contact us.

HOWMET® AEROSPACE Inc. (formerly ARCONIC Inc.) develops and manufactures high performance, engineered products and solutions for the aerospace, industrial gas turbine, commercial transportation and oil and gas markets. HOWMET® FASTENING SYSTEMS product range under different brands offers the greatest breadth and depth of fastening solutions available including self-locking nuts, quick-release fasteners, draw latches, threaded inserts, lock-bolts, and structural blind fasteners.

HOWMET FASTENING SYSTEMS structural blind fasteners and lockbolts (including those under HUCK® brand) are designed to provide permanent, vibration-resistant, superior-quality joining solutions for use in aerospace and industrial applications. Suited for applications where the joints are integral to the structure, they offer high tensile, shear & clamp properties.  For additional information please refer to the Product Description section and the supplied documentation. Installation tool systems (separately listed) are also offered.

JIFFY® AIR TOOL is a market leading solutions provider specializing in professional grade hand held, limited access, pneumatic drilling and fastener installation tools for the aerospace and aircraft industries. Manufactured in the USA, their product portfolio includes an extensive line of specialty hand-held pneumatic tools designed and built for easy, trouble-free operation and reach into difficult areas. Their tools are widely used by airframe assembly, maintenance, repair and overhaul facilities.

Modular Drill Motors & Attachments (JMD)

JIFFY® AIR TOOL pioneered the “Modular Tool” platform for drill motors and attachments (JMD). JIFFY® motors can accept a wide variety of drill attachments to meet limited access requirements.JIFFY® Pistol Grip Straight style drilling tools are offered in models with forward running, reverse running and reversible functions, safety trigger option, 250 – 20,000 RPM, and 0.3 – 1.5 HP.  Available Thread Sizes: 1/4-28, 10-32, 9/32-40, 5/16-24, 3/8-24 and 7mm Collet.

Modular Fastener Installation Tools (JMI)

With JIFFY® modular fastener installation platform installation motors can accept a wide variety of install attachments to meet limited access requirements. The latter are available in 17° indexable or fixed, 20° indexable or fixed, “L”, and straight install type offered in various series correlating to the torque capacity of the fastener. Their versatility is further enhanced by the three offered drive styles: a socket and key system,a flush gear with a key and a hex through with no key control to allow access to confined space installations.

In addition to the modular installation tools, ratchet install tools in straight, 17° and 20° head styles are also available. Their pneumatic ratchet wrenches can be used for HI-SHEAR fastener (*) installation quickly, easily, and efficiently. Their new & improved spring loaded hex tip holder allows the use of special hex tips that will hold the HI-LOK™ style fastener in place when installing non-interference fasteners. With the new & improved design, hex tips are easier than ever to change and can literally be changed in just a few seconds.JIFFY®  sockets and hex tips (sold separately) can be used with these wrenches.

For additional information please refer to the supplied documentation or contact us.

 (*) HI-SHEAR CORPORATION Fastening System includes HI-LITE™, HI-LOK™ and HI-LOK™/HI-TIGUE™ pin and collar fastener combinations. The HI-LOK™ fasteners are the second most used fasteners in aircraft structural assembly after the solid rivets MS20470 and MS20426. The HI-LOK™ fastener system includes a rivet pin (similar to a screw but with additional advantages) and a collar (similar to a nut). Pneumatic installation/removal tools for HI-LOK™ or HI-LOK™ style fasteners are also offered by  HS Tooling and U.S Air Tool Co. (USATCO). Please refer to the respective product presentations.

HI-SHEAR Fasteners are patented fasteners of HI-SHEAR CORPORATION (Patent Holder), subsidiary of LISI AEROSPACE, a manufacturer of advanced aerospace fasteners and installation equipment used in space, military and commercial vehicles. Depending on the fastener, they are made by quality fastener manufacturers (licensees) in different  countries including but not limited to LISI AEROSPACE companies, HOWMET ALCOA / SIMMONDS / FAIRCHILD, PCC  SPS, and others.

The HI-SHEAR rivet pin range offers a versatile solution for most of structural assemblies. They consist a very common type of threaded fastener used for clearance, transition and low interference fit throughout the airframe (metallic and composite), from wings to fuselage, in engine fairings, and more. Easily installed from one side, by one person with conventional tooling.

HI-SHEAR rivet pin product portfolio includes the original HI-LOK™ (HL™) system, the latest HI-LITE™ (HST™) pins with an improved recess and HI-TIGUE™ (HLT™) pins with improved fatigue benefits. They can be used in shear and/or tension applications on plain or sloped surfaces and feature controlled preload, a wide range of sizes and variety of materials and coatings for installation in all structures.

Most fasteners are mainly loaded in shear. That should be the only way for rivets as their tension capability is relatively low. Whenever there is a substantial tension load in a fastener, a threaded bolt should be used.

Additional information is available in Product Description section and the supplied documentation.

Rivet Pin Gauges from HI-SHEAR CORPORATION,  subsidiary of LISI AEROSPACE, can be used for inspection or measurement of correct grip length of HI-LITE™ / HI-LOK™ rivet pins. Different HI-SHEAR Pin Protrusion Gauges are offered for respective HI-LITE™ / HI-LOK™series pins. HI-SHEAR Grip Gauge Assemblies can be used to measure the “grip length” of HI-LOK™ and HI-LITE™ pins, shear lockbolts, structural screws and bolts. The HI-SHEAR 2-651 Grip Gauge Assembly includes one HI-SHEAR 2-612 Grip Gauge & one HI-SHEAR 2-615 Grip Gauge Slide. The 2-612 Grip Gauge measures in increments 1/16” to 3”(1 mm to 75 mm). Made from spring temper stainless steel, 3/4" x 6-1/4".

HI-SHEAR Fasteners are patented fasteners of HI-SHEAR CORPORATION (Patent Holder), subsidiary of LISI AEROSPACE, a manufacturer of advanced aerospace fasteners and installation equipment used in space, military and commercial vehicles. Depending on the fastener, they are made by quality fastener manufacturers (licensees) in different  countries including but not limited to LISI AEROSPACE companies, HOWMET ALCOA / SIMMONDS / FAIRCHILD, PCC  SPS, and others.

HI-SHEAR nuts and collars are designed to fit with their related HI-LOK™/HI-TIGUE™ and HI-LITE™ pins  (separately presented) forming the respective fastener system. HI-LOK™ nuts and collars are designed to fit HI-LOK™ & HI-TIGUE™ pins. HI-LITE™ nuts and collars are designed to fit HI-LITE™, PULL-IN™, PULL-STEM™ & TAPER HI-LITE™ pins.

With a wide range of shapes, materials and coatings, they are suited for most of structural assemblies and are commonly used in the aerospace industry in tension and shear applications. Collars’ wrenching element is designed to break-away at a controlled preload. It has been tested over time and has proven its reliability when installed with non-torque-controlled tools. Main features of nuts and collars include:

- controlled preload

- wide variety of materials and coatings for installation in all structures

- suitable for shear or tension applications, with captive washer, self-aligning or self-sealing options

- limited access installation, using conventional tooling

- designed with a counterbore to fit nominal and oversized pins

- nuts allow customized torque and preload & low height design for low access areas

Please refer to the supplied documentation for additional information.

Blind Rivets are multi-piece rivet assemblies, capable of being installed from one side of the workpiece.Traditionally, blind rivets were used on aircraft leading edges, trailing edges, and close out areas which are limited to access to one side of the structure.  Current blind rivet usage has expanded to many additional areas of the aircraft in an effort to decrease labor expense and to address the ergonomic issues of solid riveting.

The CherryMAX® locked spindle blind rivets by CHERRY® AEROSPACE are the most reliable, high strength structural fasteners with visual inspectability in the world today. They are also known as "bulbed" fasteners due to their large blind side bearing surface, developed during the installation process. They feature a a visibly inspectable  "Safe-lock" locking collar for more reliable joint integrity, and their own installation washers, which eliminate the problems resulting from worn tool anvils. CherryMAX® rivets are used in thin sheet applications and in materials that may be damaged by other types of blind rivets. They meet the requirements of PS-CMR-3000 and can be supplied in 1/8" through 1/4" diameters in both nominal (CR3212 and CR3213 Series) and 1/64" oversize diameters (CR3242 and CR3243 Series).

Please refer to the supplied documentation and the Product Description section for detailed information on CherryMAX® rivet and other blind rivets manufactured by CHERRY® AEROSPACE.

Blind Rivets are multi-piece rivet assemblies, capable of being installed from one side of the workpiece.Traditionally, blind rivets were used on aircraft leading edges, trailing edges, and close out areas which are limited to access to one side of the structure.  Current blind rivet usage has expanded to many additional areas of the aircraft in an effort to decrease labor expense and to address the ergonomic issues of solid riveting.

The CherryLOCK® blind rivets by CHERRY® AEROSPACE come in below  mentioned types, and in different sizes, materials and strength levels. A complete range of recommended power tools, hand tools and pulling heads are also available.

CherryLOCK® ‘A’ Code “non-shift”, self-plugging blind rivets

Single action, mechanically locked, wire-drawing fasteners providing excellent hole-fill and sheet take-up capability. They conform to the Procurement Specification NAS 1400 and Standards Pages NAS 1398 and NAS 1399.These rivets are offered in aluminum, monel and A-286 stainless steel materials in a wide variety of diameters and grip ranges. CherryLOCK® ‘A’ Code  "Wiredraw"  rivets are locked spindle flush fracturing structural rivets manufactured in 3/32", 1/8", 5/32", 3/16" and 1/4" diameters in 100° flush head and protruding head style configurations and offer grip ranges from .020 in the smaller diameters to 1.073 in the larger diameters. The 3/32" diameter rivet is available in A-286 only with grips ranging from .020 to .562. Rivets 1/8" diameter and larger have head markings to identify grip, material and manufacturer for ready inspection. The flush fracturing spindle eliminates the need for shaving and meets the flushness requirement of the NAS 1400 specification. These rivets are especially suited for sealing applications and joints requiring excellent sheet take-up and allow simple installation with a wide variety of Cherry® nonshifting and shifting tools.

Both CherryLOCK® ‘A’ & Wiredraw Rivets rivets are designed to provide strong, reliable fastening solutions, but the choice between them may depend on specific application requirements, such as material compatibility, strength needs, and installation conditions. Both offer a wide grip range, making them versatile for different thicknesses.

Bulbed CherryLOCK® locked spindle and flush fracturing structural rivets

They consist a complete shear fastening system.  Their features can be utilized for optimum strength and performance in both thick and thin sheets. They provide the highest possible design integrity, particularly in double dimple or thin backside sheet applications. CherryLOCK® hydroshift installation tool systems are required for installation. They conform to Procurement Specification NAS1740 and Standards Pages NAS1738 and NAS1739.

For additional information on CherryLOCK® rivets and other blind rivets manufactured by CHERRY® AEROSPACE (separately listed) please refer to the supplied documentation and the Product Description section.

The CHERRY® Nut-Plate family of fasteners offers an extensive range of head styles in a low cost, pull through style rivet. Rivet heads include the CCR/CCMR274, “Universal”, CCR/CCMR264, 100° Flush, and the CCR/CCMR244, 100° Reduced Flush head (NAS 1097). Sleeve materials include C1018 steel or A-286 CRES stainless steel. Single action installation tools are all that is required to complete this low cost fastening system. Recommended installation tools include the G29 hand tool, which is sold complete with pulling head, or the G902/G902-15 lightweight power tool with pulling heads sold separately.

For additional information please refer to the supplied documentation or contact us.

CHERRY® AEROSPACE MBC® Blind Fastening System  is one of the industry’s simplest and most versatile riveting systems available today. These fasteners are offered as standard MBC® rivets, simple, two-piece assemblies comprised of a MBC® rivet sleeve and a stem with an integral locking feature and as MBC® Lock Creator rivets (MBC®-L/C), same as the standard MBC® rivets with the addition of a lock creator anvil. This additional component simplifies installation of the fastener by allowing a single nose tip for installing the three available diameters, as in the CherryMAX® type rivets. Whether standard MBC® or MBC®-L/C rivets are used, each rivet comes complete as a single-piece assembly, ready for installation. CHERRY® AEROSPACE MBC® Blind Rivets are offered in aluminum and stainless steel versions and in different finishes. Both the aluminum and stainless steel series MBC® rivets are available in 1/8" (3.2mm), 5/32" (4.0mm) and 3/16" (4.8mm) diameters, with flush, reduced flush or protruding rivet head styles. Respective information is designated in their part numbers by respective codes as follows:

CHERRY® MBC® Blind Rivet PN Structure NAS17 (NAS Number) (Head Style) (Material Code) (Rivet Diameter) L (Grip Size) (Finish Code)

NAS Number  (19, 20 or 21)

Head Style

Material Codes: C - CRES Stainless Steel, H - 2014A Aluminum

Rivet Diameters: -4 (.125), -5 (.156) -6 (.188)

L indicates Lock Creator, Dash (-)indicates Standard

Grip Sizes: NAS Grip sizes are correlated with respective CHERRY® AEROSPACE Grip Numbers (please consult the supplied documentation).

Finish Codes: A Clear Anodize per SAE AMS-A-8625, F Chemical Film per SAE AMS-C-5541, Passivation per AMS 2700, W Cadmium Plate AMS QQ-P-416, N Natural Finish

Sold in pieces but mostly in packs where the specified number of rivets per pack is indicated after the letters "PK" in the product reference number (SKU). Appearing prices are always for the units of measurement used each time.

For over 60 years, CHERRY® AEROSPACE Installation Tools have been specified and used by aircraft manufacturers and repair facilities throughout the world. Each CHERRY® AEROSPACE fastening system is combined with a full range of tools to provide an overall systems approach that ensures optimum compatibility and consistent installation performance. Used worldwide, Their tools are are manufactured to provide maximum service with minimum care. They are offered in a wide variety of hand, pneumatic and pneumatic/hydraulic versions, with optional accessories to permit their use in difficult and limited access areas. The size and type of fastener being installed dictates the type of tool to be used. All installation tools are manufactured at CHERRY® AEROSPACE's plant in Santa Ana, CA, USA.and they are CE Certified.

For additional information please refer to the supplied documentation or contact us.

CHERRY® AEROSPACE MAXIBOLT® Blind Bolts (also termed as rivets) are multi-piece assemblies, capable of being installed from one side of the workpiece. Typically used in higher strength aircraft structural areas they are offered as Maxibolt®,  Maxibolt® Plus and Titanium Maxibolt® Blind Bolts. They can be installed with the use of CHERRY® tools for a most reliable installation performance.

CHERRY® Maxibolt® Blind Bolts are supplied in alloy steel and A-286 CRES materials. They conform to MS90353/MS90354, and MS21140/MS21141 Standards, meet MIL-F-81177 and MIL-F-8975 requirements, and are listed in QPL81177 and QPL8975. Shear strength for the steel version is 112 KSI and  95 KSI for the A286 CRES version.  CHERRY® Maxibolt® Plus Blind Bolts are available in -5, -6, and -8 diameters and stainless steel, and titanium materials. One tool and pulling head installs all three diameters. Creating a larger blind side footprint, they provide excellent performance in thin sheet and non-metallic applications. The flush breaking stem eliminates shaving while the extended grip range accommodates different application thicknesses. CHERRY® Titanium Maxibolt® Blind Bolts feature expanded performance capabilities for metallic and composite blind fastening applications. They provide a flush, burr- free installation with no shaving required. The Titanium Maxibolt® bolts offer fast and consistent installation by utilizing single action tooling with a unique shift washer design. The all-titanium sleeve and stem are compatible with exotic composite materials. They cause no delamination of the exit side of the structure during installation, and offer a blind-side slope tolerance up to 7°.

For more information please refer to the supplied documentation or contact us.

RAPCO produces quality FAA-PMA approved replacement organic and metallic brake linings for Cleveland and McCauley brake assemblies on most general aviation aircraft. Organic linings are actually made from a semi metallic mix. RAPCO combines brass, copper and Kevlar fibers with a high temperature binding compound to provide outstanding performance and long service life. Most RAPCO organic linings have a built in wear indicator, which reduces the risk of damage to the brake disc and helps to optimize lining life. RAPCO organic linings are available in boxes of 10 or in organic lining kits containing the proper number of linings and rivets necessary for replacement on Cleveland or McCauley brake assemblies. They are convenient to have on hand when the need for relining occurs. Metallic lining replacements for the Cleveland brake assemblies are made of sintered steel, a specially developed process that fuses metallic particles to a steel carrier plate. RAPCO metallic linings offer long life and excellent braking performance.

RAPCO Brake Rivets are FAA-PMA approved quality tubular rivets produced from plated steel for mounting aircraft brake linings. The RAPCO RA825 Rivet Tool Kit is recommended for proper installation.

Please refer to the attached Application Guide for additional information.

Countersinking is used to ensure that flat head screws or fasteners sit flush against the workpiece. JITTERBUG Pilot Countersink Cutters can be used with flush rivets in different countersinking applications. They consist cost effective alternatives to other brands. They are available separately or in convenient sets of different pilot diameters. Offered sets include 6 pieces (1/4 5/16 3/16 5/32 3/32 1/8 in.) or 4 pieces (3/16 5/32 3/32 1/8 in.) per set. For additional information please consult the supplied documentation or contact us.

ATI® TOOLS 107A series flush straight drive rivets are manufactured from S2 high-grade shock-resistant steel and machined in accordance with MIL-STD GGG-R-425. Large radii at critical points enable these rivets to withstand continuous rugged use.They are slightly crowned with a highly polished face designed for rapid flush riveting where a smooth skin surface is essential and feature large radii at critical points to prevent breakage, protection with plastic coating to prevent damage during shipment and storage, blended radius between cup and chamfer with no sharp edges, which coin or mar skin, highly polished precision cup, free of machine marks and ridges and chamfered corners. Shank diameter 0.401".  Different sizes are available serve specification requirements for face diameters and lengths.

ATI® TOOLS 110C series flush straight drive rivets with rubber guard are manufactured from S2 high-grade shock-resistant steel and machined in accordance with MIL-STD GGG-R-425. They feature protection with plastic coating to prevent damage during shipment and storage, blended radius between cup and chamfer with no sharp edges, which coin or mar skin, highly polished precision cup, free of machine marks and ridges and chamfered corners. Shank diameter 0.401".  Different sizes are available serve specification requirements for face diameters and lengths.

ATI® TOOLS 100A series (straight drive) and 101A series (offset drive) AN470/MS20470 universal-head cup shaped  rivets are manufactured from S2 high-grade shock-resistant steel and machined in accordance with MIL-STD GGG-R-425. Respective flush head rivets of ATI® TOOLS 100A/101A series are designated by the letter "F" after the series number (i.e. 100AF/101AF respectively. They feature protection with plastic coating to prevent damage during shipment and storage, blended radius between cup and chamfer with no sharp edges, which coin or mar skin, highly polished precision cup, free of machine marks and ridges and chamfered corners. Shank diameter 0.401". Available in different rivet sizes, body diameters and lengths in inches.

ATI® TOOLS 106A series flush swivel type rivets are manufactured from S2 high-grade shock-resistant steel and machined in accordance with MIL-STD GGG-R-425. They feature protection with plastic coating to prevent damage during shipment and storage, blended radius between cup and chamfer with no sharp edges, which coin or mar skin, highly polished precision cup, free of machine marks and ridges and chamfered corners. Rivet Type: Flush Swivel Type. Shank diameter 0.401".

ATI® TOOLS 105A series AN470/MS20470 universal-head cup shaped double offset drive rivets are manufactured from S2 high-grade shock-resistant steel and machined in accordance with MIL-STD GGG-R-425. They feature protection with plastic coating to prevent damage during shipment and storage, blended radius between cup and chamfer with no sharp edges, which coin or mar skin, highly polished precision cup, free of machine marks and ridges and chamfered corners. Rivet Type: AN470/MS20470 universal-head. Shank diameter 0.401".  Available in different rivet sizes, body diameters and lengths in inches.

ATI® TOOLS ATIST1111BK3 anti-slip rivet set, H13 magnetic particle tested. Manufactured to Boeing® specifications. It features polyurethane rim to prevent slipping and damage to skin surfaces. Shank diameter 0.401". Length 2-1/2″. Face diameter 1-1/4″.

POP® PRG510A/MCS510A series air rivet guns are strong, compact, and trouble-free pneumatic tools ideal for continuous high-production riveting. Αvailable with either a deflector (PRG) or with a Mandrel Collection System (MCS). The PRG-511 A offers an extended nose housing for improved access. Sets aluminum in sizes 3/32″ – 3/16″ in open-end and closed-end POP rivets.

Avdel® is part of STANLEY® Engineered Fastening, offering a wide range of structural and non-structural blind rivets, speed blind rivet fasteners, lockbolts, and tooling systems.

Avdel® blind rivets are made of steel, plastic or other materials with different strengths and material thicknesses.They are ideal for situations where access to the connecting materials is only possible from one side, and used in all manufacturing industries worldwide for almost every assembly task to ensure a secure hold.

Avdel® structural rivets are made for the highest demands due to their high resistance against shear and tensile forces and come in different product lines including Avibulb® XT, Avinox® XT, Hemlok®, Monobolt®, Interlock®, Q-Rivet®, and Klamp-Tite® Structural.

Avdel® non-tructural rivets are used on assemblies without high requirements regarding resistance against shear and tensile force. Like their structural counterparts they come in different models including Avex®, Stavex®, Avinox®, Avibulb®, Bulbex®, T-Lok®, Avdelmate®, and Klamp-Tite® Non-Structural.

 Avdel® Avdel Speed Blind Fasteners are designed for fast and reliable fastening of metals, plastics, composites, and passive electronic components in mid- and high-volume application. Available in a broad choice of materials, finishes, lengths, and diameters, they have been originally designed for the aerospace industry, but now on assembly applications for household goods, lighting, electronic sub-assemblies, light metal fabrication and automotive. Speed blind fastener solutions include Briv®, Chobert®, NeoSpeed®, Rivscrew®, Avsert®, Avtronic®, Avlug®, Grovit®, and Double Flush Chobert®.

Avdel® Lockbolts are two-piece fasteners designed for high-strength and secure assemblies.Quick and easy to use, they provide protection against unwanted loosening and are the ideal when a welding or a screw-nut connection is not not possible, practicable, or too time consuming. Frequently used in commercial vehicles, railway, construction, solar field construction and container manufacturing. Avdel® lockbolts offer perfect resistance to vibration and material fatigue due to the swaged lock which forms collar material permanently into the circular grooves of the bolt. Respective product lines include NeoBolt®, Avdelok®, Avdelok® XT, Maxlok®, Avtainer®, and Avbolt®.

Avdel® Blind Rivet Nuts provide a fast, reliable and cost effective system for the introduction of high-quality, load-bearing threads. They offer many advantages against weld nuts, thread forming screws, press nuts and screw / nut combinations. Product range includes Eurosert®, Nutsert®. Hexsert®/Euro Hexsert®, High Strength Hexsert®, Squaresert®, Versa-Nut®, Jack-Nut®, and Well-Nut®.

In addition to fasteners Avdel® offers a range of powerful and lightweight manual hand tools, hand-held hydraulic tools, hydro-pneumatic tools, battery powered hand tools for processing blind rivets, speed rivets, blind rivet nuts and lockbolts.

Different pins, rivet pins & collars used on Textron Aviation Cessna, Beechcraft and Hawker aircraft. Also available are alternative respective parts from other manufacturers. HI-SHEAR HI-LOK™ pins and collars are catalogued as TEXTRON AVIATION part numbers but the alternative HI SHEAR part number is also included in the product reference number (SKU). When fasteners are sold in packs the specified number of pieces per pack is designated after the letters "PK" in the product SKU.

MONOGRAM AEROSPACE FASTENERS® is part of TRIMAS AEROSPACE™ which serves the world’s markets with industry leading products including specialty fasteners, temporary fasteners for fixturing and alignment, fastener installation tools, finishing and removal tools and the design of innovative fastening solutions for the aerospace industry. The blind rivet portfolio of MONOGRAM AEROSPACE FASTENERS® includes:

The Visu-Lok® family of high strength fasteners available to 112 KSI shear. Designed for use in metal structures they address the need for cost-effective one-sided fastener installation as they are fully installed and verified from one side of the structure. Features: High strength. ease of installation, self-locking resisting loosening in severe vibration, available in a wide range of materials, unified or metric sizes, head styles, including oversize and close tolerance interference fit configurations, compliance with NAS standards, easily adapted to robotic or automated installation.

Composi-Lok® fasteners, industry's standard for blind fastening of composite laminates but equally well-suited to metal structures, they  provide superior joint integrity. Approved on virtually all composite airframe programs throughout the world. Features: large blind upset eliminating composite damage, easy, labor-saving one-sided installation, controlled clamp-up, compatible with graphite, available in titanium or CRES materials to resist galvanic corrosion, visual locking, fuel-tight sealing capability.

Radial-Lok® unique hole-filling, high strength blind fasteners. With their uniform radial expansion throughout the entire fastener grip, they are uniquely suited to offer both enhanced fatigue strength & lightning strike damage protection. Uniform radial expansion throughout the entire length of the clearance fit hole. Features: interference fits to .006″, enhanced fatigue life, eliminate costly hole preparation, clearance fit before installation, easy one-sided installation, high clamp-up,  large blind-side upset, tighter joints, ideal for aluminum and composite applications, available in 3/16″ through 3/4″ diameters, including oversizes, .100″ grip accommodation, 7-deg. blind slope capability.

OSI-Bolt®, the only blind bolts capable of equivalent usage with solid shank bolts offering a full 1.5D bearing area. Direct replacement for solid shank pin-and-collar systems. Suited for primary structures they deliver strength with the added advantages of simple one-sided installation & a flush break-off for installed cost savings in both metal and composite structures. The updated titanium Ti-OSI® combines all these advantages in a weight-saving configuration. Features: availability in 95 & 112 KSI shear and a variety of hex, tension, shear, and protruding head styles, diameters from 5/32″ to 1/2”, 1/64” and 1/32” oversize availability, 1/16” grip with +/- .015” capability, “Vise-like” sheet take-up, flat, uniform blind-side footprint ...

U.S. Air Tool Company Inc. (USATCO) is a manufacturer and worldwide distributor of high quality tools for the aerospace/aviation industry. Their offered product range includes installation, assembly, and repair tools and related accessories for air drilling,punch & cutting,  clamp & fastening, cable, wiring & tubing,  lighting & inspection, testing & measuring, riveting, sheet metal forming, sanders & grinders, files,  abrasives & saws, an extensive range of hand, assembly, shop & application tools and more.

For additional information onUSATCO product portfolio please refer to the Product Description section, the supplied documentation or contact us.

HSTOOLING (formerly HI-SHEAR TOOLING) is a brand of ZEPHYR Manufacturing Co., Inc. (aka Zephyr Tool Group) designing and manufacturing the highest quality aerospace and industrial assembly tools and tooling systems.

HSTOOLING product porfolio includes installation, assembly and repair tools for Aerospace (air drills, riveters, both conventional rivet hammers and compression riveters, specialty fastener installation and other tools and accessories).

HSTOOLING ULTRALITE® compression riveters include different models covering different capacity requirements for aluminum and steel.They are  offered in Alligator jaw and C-Yoke models and feature ergonomic design, weight reduction vs. comparable-force models, high-strength forged jaws and C-yokes, precison bearings and shafts.  The new 702 and 702T alligator models posess outstanding force-to-size ratios.

HSTOOLING Air Driver Assemblies are designed specifically for installing HI-SHEAR CORPORATION HI-LOK™ (*), HI-LITE™,  and HI-LOK™/HI-TIGUE™ pin and collar fastener combinations. They come in a variety of sizes and configurations, to drive fasteners in both open and restricted-access areas. Compact, lightweight, fast and reliable HSTOOLING tooling systems generate low noise compared with conventional riveting, require minimum employee training, and are designed to operate at a normal factory air pressure of 90 psi with 1/4 or 3/8 inch air lines.

Installation/removal tools for Hi-Lok™ or Hi-Lok™ style fasteners made by Jiffy Air Tool and USATCO are also offered. Pleae refer to the respective product presentations.

For additional information please refer to the supplied documentation or contact us.

(*) The HI-LOK™ fasteners from HI-SHEAR CORPORATION, subsidiary of LISI AEROSPACE, are the second most used fasteners in aircraft structural assembly after the solid rivets MS20470 and MS20426. The HI-LOK™ fastener system includes a rivet pin (similar to a screw but with additional advantages) and a collar (similar to a nut).

ZEPHYR TOOL GROUP (aka ZEPHYR Manufacturing Co.) is a manufacturer of highest quality assembly tools and tooling systems for the aerospace, automotive, and manufacturing industries. ZEPHYR TOOL GROUP product ranges include assembly tools, maintenance tools, fastener installation and removal tools for the aerospace market, power tool accessories for use in the general industrial tool industry, and commercial products. Brands within their family of tools and products include ZEPHYR Aerospace, ZEPHYR Industrial, KWIK-LOK, LOK-FAST, U.S. INDUSTRIAL TOOL (USIT), HSTOOLING  and MARTIN Aircraft Tools.

U.S. INDUSTRIAL TOOL (USIT) 114 series C-Type compression riveters can be used for assembly operations in aircraft, automotive, truck, bus components, boats, metal furniture, toys, electronic chassis & appliance assembly. One man operated, USIT rivet squeezers increase productivity securing high joint integrity with no dependance on operator's skill level. Available in standard and high output configurations. CE certified. They feature tandem cylinder doubling compression force available from tool, rolling cam and wedge assembly multiplying compression force of piston, "squeeze" action with throttle controllable speed allowing easy control, exceptional accuracy and uniformity & swivel air inlet aiding maneuverability. They develop full squeezing force at 90 P.S.I.
