EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Eaton’s hydraulics were acquired by DANFOSS and form part of DANFOSS product portfolio.

DANFOSS EATON AEROQUIP® AE246/AE446/AE546/AE846 Series Hoses are based on AE246 advanced technology designed, tested and proved high pressure 3000 psi PTFE hose with Hi-Pac®braid reinforcement containing densely packed small diameter wires braided over a minimum thickness Teflon tube. This reinforcement offers up to 50% lighter in weight while the wires absorb stress more uniformly resulting in a stronger wire braid with less metal. Available in different tubing sizes and internal diameters in inches. They meet or exceed AS1339 performance requirements.

The AE546 series hoses feature an integral braided polyester chafe guard (manufactured by braiding polyester yarn onto existing hose styles) while those of  AE246 series come with an integral silicone firesleeve.

The AE446 and AE846 Series hoses are AE246 high pressure teflon hoses with an integral silicone asbestos free fire protection (sleeve), adhering directly onto the hose metal braid and end fittings to form a smooth, tight bond.

Common end fittings used with these hoses include CRES fittings of -3 to -12 thread size, flared (MS33656), flareless (MS33514) or BSP type offered in straight, 45 deg and 90 deg styles.

“Super Gem” Reusable Flared Fittings can also be used with these hoses. They consist of 3 pieces: a socket, sleeve and nipple assembly.Made from corrosion resistant materials elbow fittings are available in standard, 45°, and 90° styles. Mate with AS4395 and AS33514 end connections. These service proven flared fittings provide permanent protection against leakage, even after high temperature aging and pressure impulsing to 250,000 cycles or more. This is due to the separation of the sealing function from the retention function.

The AEROQUIP® hoses are priced and sold by the foot unless otherwise specified. Fittings can be separately purchased in pieces.

For additional information please consult the Product Description section and the supplied documentation.

EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON AEROQUIP® products form now part of DANFOSS product portfolio.

DANFOSS EATON AEROQUIP® wire reinforced synthetic rubber hoses are offered in different series (types) described below to meet respective application requirements.

The AE701 hoses consist an upgraded version and a direct replacement for old 601 ones, widely used for aircraft fuel and oil lines where flexibility and light weight are prime considerations. They are made from specially formulated synthetic rubber  inner tube with two layers of stainless steel wire outer braid reinforcement.  Because of their lighter weight and lower operating pressure than type 303 hose, AE701 hoses are not recommended for hydraulic lines. The AE501 hoses are AE701 hoses overlaid with a blue braided chafeguard cover of tough polyester yarn. Both AE701 and  AE501 hoses meet MIL-H-83797, TSO C53a,Type A specification.

The AE401 series hoses are AE701 hoses with an integral cover of silicone rubber compound. They meet MIL-H-83797, TSO C53a,Type C specification.

Product Features:

Flexibility

Light weight

Non-age sensitive (no shelf life)

Fluid temperatures: -65°F (-54°C) to +300°F (+149°C)

TSO C53a, Type A and Type C approvals (with fire sleeve)

Mil-Spec Approvals: MIL-H-83796/1 through MIL-H-83796/9 Assemblies & MIL-H-83797 Hose, MIL-F-83798 Fittings

Field attachable fittings

Applications:  fuel, engine oil and coolants.

Available in different tubing sizes and internal diameters in inches. Priced and sold by the foot.

For additional information please refer to the supplied documentation ot contact us.

AN823 45° Flared Tube & Pipe Thread Elbow Fittings are superseded by those of Military Standard MS20823 and these are superseded in turn by SAE-AS5196 standard. These fittings are  offered as part of AVIATIONEU NEW ERA product lines in steel or aluminum in different tube outer diameters and thread sizes in inches. Aluminum fittings are designated by the letter "D" after the suffix number.

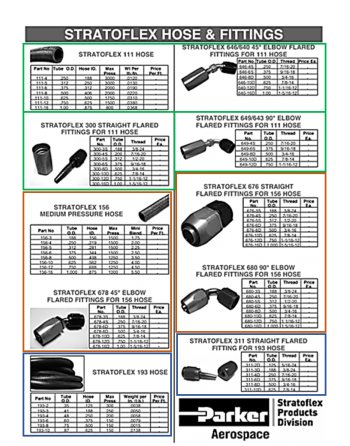

The  Parker Aerospace (Stratoflex Products Division) offers a broad array of PTFE, rubber and metal hose and hose assemblies, hose fittings, rigid tube assemblies, couplings, quick disconnects, swivel joints, fuel break-away valves, hydraulic fuses, and flow regulators, and specialty fittings including permanently swaged and welded fittings suitable for virtually any aerospace application. 676 Series are straight fittings  for use with Stratoflex 156 hoses. They come in different outside diameters (OD) and thread sizes in inches. Please refer to the attached Stratoflex catalog for offered hoses and fittings or contact us.

EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON AEROQUIP® products form now part of DANFOSS product portfolio.

DANFOSS EATON AEROQUIP® 491 and 471 hose fittings consist of an AN818 style nut, an externally threaded 37 nipple and an internally threaded hose socket. Fittings of sizes 3 through 6 have nuts and nipples of cadmium plated steel. Nuts and nipples for size 8 and larger are of anodized aluminum. Fittings conform to MS24587. Available in different tube and thread sizes in inches.

For additional information please consult the supplied documentation or contact us.

REFFLEX® INTERNATIONALl B.V. manufactures prefabricated hoses, tubes, fittings and tools for refrigeration applications. Their REFFLEX® advanced systems of refrigeration flexible hoses are offered in two sizes, DN-2.0mm, and DN-5.0mm while larger sizes are covered by their COLDLEX® system. They are both strong and reliable, easy to use, ozone, UV and oil resistant, with a highly flexible, short bending radius and capability of absorbing all possible multi directional vibrations. They are vailable in different colors.

DN-2.0mm is used for connecting pressostats, pressure gauges etc. while DN 5.0mm is mainly used for connecting oil separators and level regulators.

REFFLEX® fittings 1/4 “flare, 6mm ODS, 1/4 “flare or 3/8” flare are also offered for use with their DN-2.0mm, DN-5.0mm hoses together with different tools.

For additional information please refer to the supplied documentation.

EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON AEROQUIP® products form now part of DANFOSS product portfolio. Made from different materials (S Steel, B Brass, C Stainless steel or D Aluminum alloy) DANFOSS EATON AEROQUIP® adapters & swivel Joints come in different types  and sizes. For additional information please consult the supplied documentation or contact us.

Flared sleeve fittings are cylindrical metallic parts designed to be used on tubing to back up the flared end and provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.

Coupling sleeves conforming to SAE International, standard AS5176 standard replace respective MS20819/AN819 sleeves and they are offered as part of our own (AVIATIONEU NEW ERA) product lines. Sourced from quality producers these fittings are manufactured in different materials including 4130 Steel, Copper, Corrosion Resistant Steel (CRES) and Aluminum & Titanium Alloys. Material Code Letters in the part numbers indicate the composition of the fitting.

Depending on their Part Number they are sold in pieces but also in packs a with specified number of fittings indicated after the letters "PK" in the product reference number (SKU).

In close co-operation with their respective quality manufacturers, AVIATIONEU NEW ERA industrial hoses address application requirements in many different industries. Combined with an extensive range of available fittings they consist cost-effective solutions with their high quality, cost savings and prompt deliveries.  Apart from the hoses, custom hose assemblies can be furnished with fittings pre-installed as per customer specifications.

Hoses are sold in feet or meters and fittings or hose assemblies in pieces. For additional information please consult the Product Description section or contact us for a quotation.

EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON AEROQUIP® products form now part of DANFOSS product portfolio.

DANFOSS EATON AEROQUIP® BLIND-MATE quick disconnect couplings are utilized in advanced liquid cooled electronics and avionics thermal management systems. These couplings are used between removable cold plates and fixed manifolds to allow for quick leak free removal and replacement of both evaporative and liquid flow through systems. Blind-mate couplings provide unequaled performance in pressure drop, radial misalignment, and envelope. In addition, these couplings incorporate a patented integral thermal relief feature that prevents pressure buildup when the liquid cooling module is disconnected. Like other EATON AEROQUIP® quick disconnect couplings, they can be ordered as separate halves. Available in different sizes.

AEROQUIP® BLIND-MATE  couplings have been tested to meet or exceed SAE AS5072 for modular style couplings. These requirements include:

• Ability to operate within a temperature range of –65°F to +160°F (-54°C to +71°C)

• Capable of enduring 1000 connect/disconnect cycles without evidence of malfunction, leakage or damage

• Standard operating pressure of 150 PSI, proof pressure of 225 PSI, and burst pressure of 375 PSI

• Ability to tolerate proof and burst pressure without rupture or loss of fluid

• Ultra-low spillage during disconnection

• Integral thermal relief valve

• Minimal air inclusion during connection

Applications: Ethylene Glycol Water, Propylene Glycol Water, Polyalphaolefin (PAO) per MIL-C-87252

For additional information please refer to the supplied documentation or contact us.

Note: Special Order items. Non-Cancellable/Non-Returnable Upon Order Placement (NCNR). Minimum Order Quantities & long lead times usually apply. Contact us.

VENA® HT Series flexible  hoses (SCAT equivalent) are  made of one layer of glass fabric silicone coated and visible steel wire  spiral inside. For use in conducting extremely cold or hot air (temperature range: -65°F to +550°F). Available in different internal diameters in inches. Sold by the foot.

EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON AEROQUIP® products form now part of DANFOSS product portfolio.

DANFOSS EATON AEROQUIP® 816/8846/8891 series flared hose fittings can be used with DANFOSS EATON AEROQUIP® 601 hoses  and are available in different sizes. The 816 series straight hose fittings and 8891 series 90 Deg. hose fittings both consist of a pre-assembled nut/nipple assembly and an internally threaded hose socket. The size 4 fitting has a cadmium plated steel nut and nipple. Sizes 6, 8 and 10 nuts and nipples, and all sizes of sockets, are anodized aluminum. The 8846 series fittings are 45° hose fittings with swivel flared UNJF threads. They are noted for their outstanding performance as a result of a unique lipseal design concept. During assembly the nipple spur cuts a lip in the tube stock of the hose forming the fluid seal.

For additional information please consult the supplied documentation or contact us.

Note: DANFOSS EATON AEROQUIP® 816 fittings ARE NOT THE SAME as AN816 fittings. Please specify at the time of ordering.

Non-latching automatic self-sealing and Thread-Lok Quick Disconnect (QD) valved hose couplings are manufactured by the Stratoflex Products Division of Parker Hannifin Corporation.

Automatic couplings are recommended for use with today's advanced precision fluid systems for space flight, aircraft, ground and undersea applications. Stratoflex non-latching automatic self-sealing couplings are designed for use in diverse applications like electronic cooling systems, hydraulic accumulators/cylinders, brake systems, manifolds, vapor cycle and cryogenic systems. Automatic couplings are best utilized where space is limited, and hands off operation is required. Small envelope, high performance and unsurpassed reliability are key features of Stratoflex non-latching couplings. Available in different tube sizes, from sub-miniature to one inch in aluminum alloy, stainless steel, titanium and other exotic materials. They meet SAE Aerospace Standards AS4251,AS5072/1/2/3.

The Parker Stratoflex’s Thread-Lok Quick Disconnect (QD) valved couplings provide a proven solution for fluid conveyance systems  for aerospace and derivative markets when envelope and weight are important and robust performance is critical. Applications range from hydraulic, fuel, and cooling systems to pneumatic, air data systems, landing gears, wheel and brakes hydraulic fluid motors, military ground vehicles and space applications. Their respective Thread-Lok Ground Service Equipment (GSE) Quick Disconnect (QD) couplings are intended for use with fluid conveyance systems providing a robust connection for ground service equipment to the aircraft flight systems. The Thread-Lok QD is used in a wide range of pressure and temperature applications.

They integrate a highly reliable and robust positive locking mechanism to ensure the performance needed in difficult aircraft system environments such as the engine nacelle, landing gear and brake systems, and other QD demanding installations . The Thread-Lok QD couplings can be used in a wide range of pressure and temperature applications while they provide a simple one-hand operation to thread the QD halves together with a visual confirmation of proper and full coupling to improve both time and safety.

The Thread-Lok QDs incorporate tang and slot design, with QDs engaging and locking in one position when the coupling halves are threaded together and fully connected, providing both visual and touch indication of the fully connected position. They use Parker’s efficient, self-sealing valve design that permits fluid flow with minimum pressure loss and turbulence.

Available in different tube sizes, from ¼ to one inch. Their stainless steel construction meets typical electrical bonding requirements.They meet or exceed MIL-C-25427 and AS1709 specifications.

For additional information please consult the Product Description section, the supplied documentation or contact us.

Flared tube coupling nuts conforming SAE International standard AS5175 are used for a leak-free solution on aircraft and other applications replacing respective AN818 parts. They are offered  as part of our own (AVIATIONEU NEW ERA) product lines in different materials and grades and multiple thread sizes to suit application needs. Material Code Letters in the part numbers indicate the composition of the fitting (No code for Steel 1137 or 4130, "D" for Aluminum alloys (except 7075-T73), "J" for 304 Stainless Steel (CRES 304), "K" for 316 Stainless Steel (CRES 316), "T" for Titanium 64AI-4V or "W" for Aluminum 7075-T73. These nuts are designed to be used with AS5176 and MS20819 sleeves. The 2 digits after the series code indicate the tubing outer diameter (O.D.)  in inches. Finish code “V” in the PN indicates high purity Aluminum coating for “W” or “D” fittings. Depending on their Part Number they are sold in pieces but also in packs a with specified number of fittings indicated after the letters "PK" in the product reference number (SKU).

Note: In SAE AS standards for new designs, aluminum fittings with material code letter D in their Part or Identifying Number (PIN) are replaced by those with material code letter W for Aluminum Alloy 7075-T73 providing a higher tensile strength.

Eaton's Aeroquip® brand name represents quality and innovation in the aerospace industry and a wide range of options are available to meet the needs of aircraft OEM and maintenance engineers. Eaton’s Aeroquip hose, fittings, couplings and connectors are available for various pressures and applications. Lightweight and flexible rubber hoses, fittings & assemblies for aerospace applications qualified to industry standards are included within the company's product portfolio. The 306 Series is intended for low pressure while the 302A/303 Series (see separate product presentation) for medium pressure applications.

The 302A/303 medium pressure hose includes a seamless synthetic rubber compound inner tube with a single cotton braid reinforcement and a synthetic rubber outer cover. Operating temperatures: -65°F to +160°F (-53ºC to +71ºC). Used in air or vacuum instrument systems, automatic pilots and lines to pressure gauges used with these systems as specified in MS33620. Hose conforms to MIL-DTL-5593. Used with Aeroquip 491 hose fittings. Available in different tubing sizes and internal diameters in inches. Sold by the foot. Fittings are offfered in pieces and conform to MILDTL-38726 and MS27404 (superceding AN773). Hose assemblies conform to AN6270. For additional information please refer to the attached documentation.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different hoses for water, heat, air intake, protection, form, connecting, low pressure and others & related fittings are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU). ROTAX engine hoses are generally sold in meters and appearing prices are per meter but some hoses of specific dimensions and fittings are sold in pieces.

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

AN822 90° Flared Tube & Pipe Thread Elbow Fittings are superseded by those of Military Standard MS20822 and these are superseded in turn by SAE-AS5195 standard. These fittings are made from different materials such as carbon steel, aluminum or corrosion resistant steel (stainless steel), sourced from quality manufacturers and offered as part of our own labelled (AVIATIONEU NEW ERA) product lines in different tube outer diameters and NPT thread sizes in inches. The fitting composition is designated by a code letter after the dash number in the part number as follows:

No letter for Carbon Steel

"B" for Copper Alloy

"D" for Aluminum Alloy

"J" for CRES, Class 304

"K" for CRES, Class 316

"S" for CRES, Class 347

"W" for Aluminum Alloy 7075-T73

For additional information please consult the supplied documentation or contact us.

I.M.M.® HYDRAULICS (part of INTERPUMP GROUP) is a multinational company that project manages, produces and distributes hydraulic hoses and hose fittings, as well as related assembly and test trial equipment.

I.M.M.® HYDRAULICS manufactures an extensive range of high and very high pressure rubber wire braided and wire multispiralled, thermoplastic and P.T.F.E. hoses for use in different industrial applications.

INTERPUMP/ I.M.M.® hose product range includes:

Double wire braid and four wire spiral hoses for marine and offshore applications,

Single/Double wire braid, four wire spiral, textile and suction line hoses conforming to different international standards,

High performance hoses including compressor, high and low temperature, HyOzone, HIPAC and others,

Thermoplastic and P.T.F.E. hoses

INTERPUMP/ I.M.M.® hoses are offered in desired cut lengths in meters but also in coils of specified meter lengths.

Different fittings, adapters, couplings and other components and accessories are offered for use with INTERPUMP/ I.M.M.® hoses.

Component compatibility, along with the use of quality components, insures the production of reliable hose assemblies when properly assembled. Use or intermixing of other components not specifically engineered and designed for use with INTERPUMP/ I.M.M.® hoses is not recommended and may result in the production of unsafe or unreliable hose assemblies.

Please refer to the supplied documentation or contact us for additional information or assistance on non listed products.

SAE-AS5174/MS24392/AN815 series union, flared tube male to male hydraulic fittings are available as part of our own labelled (AVIATIONEU NEW ERA) product lines in different materials, tube outer diameters and thread sizes in inches. The AN815 series fittings are superseded by the respective fittings of Military Standard MS24392 which in turn are superseded by SAE International standard  SAE-AS5174 series. Materials include: Carbon Steel, Aluminum Alloy, Corrosion Resistant Steel (CRES), Titanium Alloy. The 2 digits after the series code indicate the tubing outer diameter (O.D.)  in inches. The following Material Code Letters in the part numbers indicate the composition of the fitting. Finish code “V” in the PN indicates high purity Aluminum coating for “W” or “D” fittings.

Depending on their Part Number they are sold in pieces but also in packs a with specified number of fittings indicated after the letters "PK" in the product reference number (SKU).

No code letter in part number for Carbon Steel

“D” for Aluminum Alloy (except 7075-T73)

“J” for CRES, type 304

“K” for CRES, type 316

“R” for CRES, type 321

“S” for CRES, type 347

“T” for Titanium Alloy 6AL-4V

“W” for Aluminum Alloy 7075-T73

“Z” for Carbon Steel, Zinc plated

For example, AS5174D0606 union fitting is made from Aluminum Alloy with a tubing outer diameter (O.D.) 3/8" and a 0.5625-18 UNJF thread. The corresponding union fitting in AN832 series would be AN815-6D.

Note: In SAE AS standards for new designs, Aluminum fittings with material code letter D in their Part or Identifying Number (PIN) are replaced by those with material code letter W for Aluminum Alloy 7075-T73 providing a higher tensile strength. In addition CRES fittings with material code letter S can be used for replacement parts. For new designs use of CRES fittings with material code letter R is recommended for applications requiring higher temperature.
