Hoses and fittings most suited to naval and marine applications are included in this listing. They are offered by DANFOSS EATON AEROQUIP® brand and other manufacturers, such as HYDRASEARCH or REPUBLIC BRASS SALES. Made from different materials & reinforcements they are available in different internal tube diameters (I.D.) in inches and lengths in feet. Depending on the hose, they can be used within their maximum operating pressure with a range of fluids (e.g. gasoline, crude, fuel and lubricating oils, air, water or hydraulic fluids) and conform to different Military specifications mentioned below.

MIL-DTL-3992 Air brake hose

MIL-DTL-8794 Medium-pressure wire-braid hose

MIL-DTL-13444 Rubber fuel and oil hose

MIL-DTL-13531 Rubber hydraulic hose

MIL-DTL-52471 Rubber hydraulic hose

MIL-H-24135 Wire-reinforced rubber hose

MIL-H-24595 Wire-reinforced rubber hose

MIL-H-24136 Fiber-reinforced rubber hose

For additional information please consult the supplied documentation or contact us.

AVIATIONEU NEW ERA end hose banjo fittings are intended for use in hydraulic pipes in automotive fuel, oil and hydraulic systems. They are available with single or double ends from different materials, mild steel, EN 1AL(free cutting steel), 11SMnPb30, EN 8, stainless steel 202 & 304. Sourced by certified manufacturers these banjo fittings are competitively priced and offered in different Metric sizes (M10x5/16", M12x5/16", M14x5/16", M14x3/8", M16x3/8", M18x3/8", M18x1/2") and different surface treatments (clear /yellow zinc plated, olive green zinc plated, dacromet). Sold by the piece (pc.) with Minimum Order Quantity (MOQ) 500 pcs.  Appearing price is for reference only per pc. Please contact us for a quotation.

EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON AEROQUIP® products form now part of DANFOSS product portfolio.

DANFOSS EATON AEROQUIP® 816/8846/8891 series flared hose fittings can be used with DANFOSS EATON AEROQUIP® 601 hoses  and are available in different sizes. The 816 series straight hose fittings and 8891 series 90 Deg. hose fittings both consist of a pre-assembled nut/nipple assembly and an internally threaded hose socket. The size 4 fitting has a cadmium plated steel nut and nipple. Sizes 6, 8 and 10 nuts and nipples, and all sizes of sockets, are anodized aluminum. The 8846 series fittings are 45° hose fittings with swivel flared UNJF threads. They are noted for their outstanding performance as a result of a unique lipseal design concept. During assembly the nipple spur cuts a lip in the tube stock of the hose forming the fluid seal.

For additional information please consult the supplied documentation or contact us.

Note: DANFOSS EATON AEROQUIP® 816 fittings ARE NOT THE SAME as AN816 fittings. Please specify at the time of ordering.

I.M.M.® HYDRAULICS (part of INTERPUMP GROUP) is a multinational company that project manages, produces and distributes hydraulic hoses and hose fittings, as well as related assembly and test trial equipment.

I.M.M.® HYDRAULICS manufactures an extensive range of high and very high pressure rubber wire braided and wire multispiralled, thermoplastic and P.T.F.E. hoses for use in different industrial applications.

INTERPUMP/ I.M.M.® hose product range includes:

Double wire braid and four wire spiral hoses for marine and offshore applications,

Single/Double wire braid, four wire spiral, textile and suction line hoses conforming to different international standards,

High performance hoses including compressor, high and low temperature, HyOzone, HIPAC and others,

Thermoplastic and P.T.F.E. hoses

INTERPUMP/ I.M.M.® hoses are offered in desired cut lengths in meters but also in coils of specified meter lengths.

Different fittings, adapters, couplings and other components and accessories are offered for use with INTERPUMP/ I.M.M.® hoses.

Component compatibility, along with the use of quality components, insures the production of reliable hose assemblies when properly assembled. Use or intermixing of other components not specifically engineered and designed for use with INTERPUMP/ I.M.M.® hoses is not recommended and may result in the production of unsafe or unreliable hose assemblies.

Please refer to the supplied documentation or contact us for additional information or assistance on non listed products.

Hose and pipe clamps are significant joining fittings included as part of our own branded (AVIATIONEU NEW ERA) product lines. Sourced from quality ISO certified producers, AVIATIONEU NEW ERA hose clamps are available in diferent styles, such as American, German, British or European, materials and finishes (steel,zinc plated or stainless steel)  as well as technical specifications (structure, clamp size (diameter range), band width, band  thickness and screw type). The right combination of clamp style and technical characteristics ensures compliance of the clamp with requirements for general use or a wide range of applications in different sectors (automotive, construction, industrial and others) to ensure their operational integrity and safety. They are sold in packs with the number of clamps included in each pack designated after the letters "PK" in the product reference number (SKU).

The following letters in the product reference number (SKU) indicate:

A: American Style

GM: German Style

B: British Style

EU: European Style

T: T Style

xxx-xxx: Clamp Range (Size) min and max diadeter of the clamp

W1:All steel,zinc plated

W2:Band and Housing stainless steel,steel screw

W4:All stainless steel(SS201,SS301,SS304,SS316)

To find the best clamp for your needs please consult the supplied documentation or contact us.

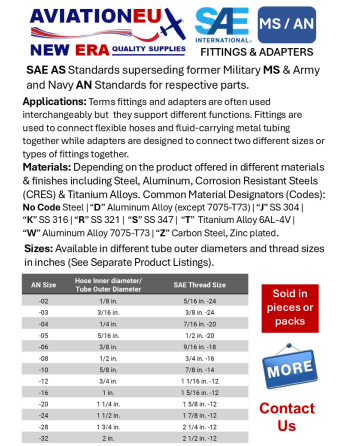

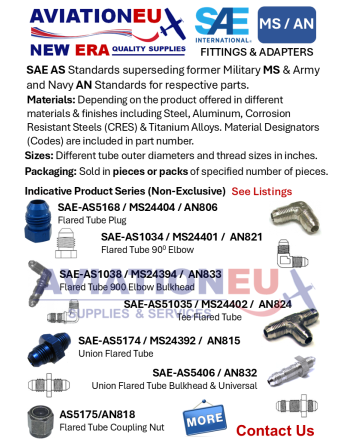

SAE-AS1034/MS24401/AN821 90° series elbow 90°, flared tube fittings are available as part of our own labelled (AVIATIONEU NEW ERA) product lines in different materials, tube outer diameters and thread sizes in inches.  AN821 and MS24401 series elbow fittings are superseded by the respective elbows of SAE International, standard AS1034 series. These fittings are made from different materials including Carbon Steel, Aluminum Alloy, Corrosion Resistant Steel (CRES), and Titanium Alloy. The 2 digits after the series code indicate the tubing outer diameter (O.D.)  in inches. The following Material Code Letters in the part numbers indicate the composition of the fitting. Finish code “V” in the PN indicates high purity Aluminum coating for “W” or “D” fittings.

No code letter in part number for Carbon Steel

“D” for Aluminum Alloy (except 7075-T73)

“J” for CRES, type 304

“K” for CRES, type 316

“R” for CRES, type 321

“S” for CRES, type 347

“T” for Titanium Alloy 6AL-4V

“W” for Aluminum Alloy 7075-T73

For example, a 90° elbow fitting with a flared tube 3/8 in. size connection corresponds to PN AS1034D0606 when made from Aluminum Alloy or AS1034W0606 when made from 7075-T73 Aluminum Alloy replacing respective AN821-6D 90° elbow fitting from Anodized Aluminum Alloy with a 37 deg flared tube 3/8 in. connection, and a  UNJF / Class 3A thread of 9/16-18 in. size. AN821 fittings of tube outer diameters  3/4 in. (size 12) and above come with UNJ / Class 3A threads.

Depending on their Part Number they are sold in pieces but also in packs a with specified number of fittings indicated after the letters "PK" in the product reference number (SKU).

Note: In SAE AS standards for new designs, aluminum fittings with material code letter D in their Part or Identifying Number (PIN) are replaced by those with material code letter W for Aluminum Alloy 7075-T73 providing a higher tensile strength. In addition CRES fittings with material code letter S can be used for replacement parts. For new designs use of CRES fittings with material code letter R is recommended for applications requiring higher temperature.

DANFOSS EATON SYNFLEX® 1300 Series composite wall tubes are designed for pneumatic instrument control systems. Their fully bonded polyethylene/aluminium construction combines the advantages of both metal and plastic tubing.

Their outer, high density polyethylene layer is impervious to most chemical environments and enables SYNFLEX® 1300 tubes to outperform practically all types of unprotected metal tubing.

Product Features:

• Combine the advantages of both metal and plastic tubing

• Very light (5 times lighter than a standard instrument control tubes)

• Provide neat looking bends without special bending tools

• Corrosion and chemical environment resistant

• Excellent chemical compatibility

• Tubing contents dry thanks to aluminum barrier

• Enable direct burial w ithout additional protection (whatever the installation)

• Connection with standard compression fittings

• 25, 75,100m standard lengths

• Standard color: black, other colours on request

• Also available with "Halogen free" jacket

Applications

• Pneumatic instrumentation and control lines located in very wet or moist environments

• Air and gas sampling

• Corrosive environments

• ID surface best suited for air

Construction

• Polyethylene/Aluminum composite

Temperature range

• -40 °C to 80 °C

AN822 90° Flared Tube & Pipe Thread Elbow Fittings are superseded by those of Military Standard MS20822 and these are superseded in turn by SAE-AS5195 standard. These fittings are made from different materials such as carbon steel, aluminum or corrosion resistant steel (stainless steel), sourced from quality manufacturers and offered as part of our own labelled (AVIATIONEU NEW ERA) product lines in different tube outer diameters and NPT thread sizes in inches. The fitting composition is designated by a code letter after the dash number in the part number as follows:

No letter for Carbon Steel

"B" for Copper Alloy

"D" for Aluminum Alloy

"J" for CRES, Class 304

"K" for CRES, Class 316

"S" for CRES, Class 347

"W" for Aluminum Alloy 7075-T73

For additional information please consult the supplied documentation or contact us.

BAND-IT Junior® series smooth ID hose clamps come in a wide choice of widths, thicknesses and inside diameters in Imperial and Metric systems. They are made from different materials such as 201 austenitic chromium-nickel-manganese Stainless Steel, 316 Stainless Steel or Galvanized Carbon Steel (GCS). With their leak resistant design BAND-IT JS® clamps out-perform the other common clamping methods of hose sleeve clamping. They reduce the risk of leaks especially when used on thin walled hoses, ensuring that hose sleeving stays in place through the life of the sleeve. Their low profile buckle design reduces the clearance needed around the hose and has no sharp edges or tail that could cause injuries. Available for hose assemblies up to 8" outside diameter.

BAND-IT Junior® clamps are also offered as preformed clamps used in a wide array of agricultural and industrial applications. Preformed clamps are  made from Alloy 625, a nickel-chromium-molybdenum alloy known for its high strength, high toughness and excellent corrosion resistance. They are vibration resistant and require no hammering or crimping to complete installation. Clamps automatically lock in place under full tension in one simple level movement of the clamp tool(*).

BAND-IT JS® Clamp Features:

Vibration resistant lip lock design. No hammering or crimping

Unique buckle nest and smooth ID design reduces leak paths

Double wrapped steel bands for additional strength

Various materials for corrosive environments

Sold in packages with specified number of clamps per package indicated after the letters "PKG" in the product reference number (SKU).

For more information please refer to the product specifications or contact us.

(*) Note: BAND-IT Junior® Preformed Clamps should be installed using BAND-IT C001 Tool and J001 Junior® Adapter. 3/8" clamps can also be installed using the BAND-IT J020 POK-IT Tool.

EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON AEROQUIP® products form now part of DANFOSS product portfolio.

DANFOSS EATON AEROQUIP® BLIND-MATE quick disconnect couplings are utilized in advanced liquid cooled electronics and avionics thermal management systems. These couplings are used between removable cold plates and fixed manifolds to allow for quick leak free removal and replacement of both evaporative and liquid flow through systems. Blind-mate couplings provide unequaled performance in pressure drop, radial misalignment, and envelope. In addition, these couplings incorporate a patented integral thermal relief feature that prevents pressure buildup when the liquid cooling module is disconnected. Like other EATON AEROQUIP® quick disconnect couplings, they can be ordered as separate halves. Available in different sizes.

AEROQUIP® BLIND-MATE  couplings have been tested to meet or exceed SAE AS5072 for modular style couplings. These requirements include:

• Ability to operate within a temperature range of –65°F to +160°F (-54°C to +71°C)

• Capable of enduring 1000 connect/disconnect cycles without evidence of malfunction, leakage or damage

• Standard operating pressure of 150 PSI, proof pressure of 225 PSI, and burst pressure of 375 PSI

• Ability to tolerate proof and burst pressure without rupture or loss of fluid

• Ultra-low spillage during disconnection

• Integral thermal relief valve

• Minimal air inclusion during connection

Applications: Ethylene Glycol Water, Propylene Glycol Water, Polyalphaolefin (PAO) per MIL-C-87252

For additional information please refer to the supplied documentation or contact us.

Note: Special Order items. Non-Cancellable/Non-Returnable Upon Order Placement (NCNR). Minimum Order Quantities & long lead times usually apply. Contact us.

EATON products are known for their quality and innovation in aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON hydraulic products form now part of DANFOSS product portfolio.

DANFOSS EATON WINNER® Series wire reinforced synthetic rubber hoses are constructed by a synthetic rubber tube with one or two wire braid reinforcement and a synthetic rubber cover. These hoses feature an operating temperature range of -40°C to +100°C / -40°F to +212°F. They can be used for a wide range of applications in hydraulic systems with petroleum and waterbased fluids as well as for general industrial uses. Available in different tubing sizes and internal diameters in inches. Priced and sold in meters unless otherwise stated.

EATON WINNER® Series include the following hoses:

The EATON WINNER® EC110 hoses which have one wire braid reinforcement and meet EN 853 1SN specification.

The EATON WINNER® EC115 hoses with one wire braid reinforcement and compliance with EN 857 1SC specification.

The EATON WINNER® EC210 hoses wiyh two wire braid reinforcement meeting EN 853 2SN specification.

The EATON WINNER® EC215 hoses with two wire braid reinforcement meeting  EN 857 2SC specification.

For additional information please refer to the supplied documentation ot contact us.

GATES industrial hoses are more than just flexible, reinforced tubes. GATES brand name is synonymous with engineered state-of-the-art quality hoses, couplings and accessories to cover an extensive range of application requirements ranging from water to welding, petroleum to pressure washing, and from mining to material handling. Every hose system component is tested under harsh environmental conditions and rigorous operational demands to ensure your Gates solution maximizes your value and minimizes your downtime. GATES couplings & ferrules feature simple coupling design and revolutionary performance. A brief overview of GATES hoses and couplings is provided at the Product Description section. For additional information please consult the supplied documentation or contact us.

AVIATIONEU NEW ERA plain banjo fittings are intended for use in hydraulic pipes in automotive fuel, oil and hydraulic systems. They are available from different materials, mild steel, EN 1AL(free cutting steel), 11SMnPb30, EN 8, stainless steel 202 & 304. Sourced by certified manufacturers these banjo fittings are competitively priced and offered in different Metric sizes (M10x5/16", M12x5/16", M14x5/16", M14x3/8", M16x3/8", M18x3/8", M18x1/2") and different surface treatments (clear /yellow zinc plated, olive green zinc plated, dacromet). Sold by the piece (pc.) with Minimum Order Quantity (MOQ) 1000 pcs.  Appearing price is for reference only per pc. Please contact us for a quotation.

AN823 45° Flared Tube & Pipe Thread Elbow Fittings are superseded by those of Military Standard MS20823 and these are superseded in turn by SAE-AS5196 standard. These fittings are  offered as part of AVIATIONEU NEW ERA product lines in steel or aluminum in different tube outer diameters and thread sizes in inches. Aluminum fittings are designated by the letter "D" after the suffix number.

REFFLEX® INTERNATIONALl B.V. manufactures prefabricated hoses, tubes, fittings and tools for refrigeration applications. Their REFFLEX® advanced systems of refrigeration flexible hoses are offered in two sizes, DN-2.0mm, and DN-5.0mm while larger sizes are covered by their COLDLEX® system. They are both strong and reliable, easy to use, ozone, UV and oil resistant, with a highly flexible, short bending radius and capability of absorbing all possible multi directional vibrations. They are vailable in different colors.

DN-2.0mm is used for connecting pressostats, pressure gauges etc. while DN 5.0mm is mainly used for connecting oil separators and level regulators.

REFFLEX® fittings 1/4 “flare, 6mm ODS, 1/4 “flare or 3/8” flare are also offered for use with their DN-2.0mm, DN-5.0mm hoses together with different tools.

For additional information please refer to the supplied documentation.

EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON AEROQUIP® products form now part of DANFOSS product portfolio.

DANFOSS EATON AEROQUIP® 491 and 471 hose fittings consist of an AN818 style nut, an externally threaded 37 nipple and an internally threaded hose socket. Fittings of sizes 3 through 6 have nuts and nipples of cadmium plated steel. Nuts and nipples for size 8 and larger are of anodized aluminum. Fittings conform to MS24587. Available in different tube and thread sizes in inches.

For additional information please consult the supplied documentation or contact us.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different hoses for water, heat, air intake, protection, form, connecting, low pressure and others & related fittings are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU). ROTAX engine hoses are generally sold in meters and appearing prices are per meter but some hoses of specific dimensions and fittings are sold in pieces.

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

The  PARKER HANNIFIN (Hose Products Divisionn) offers the following series of Medium & High Pressure hydraulic hoses compatible with No-Skive fittings.

- BCH Series braided and SX Series spiral hoses meeting international technical standards. More recently developed they are intended for demanding small and medium OEMs and general distribution,

- ELITE No-Skive braided and Parkrimp® No-Skive spiral hoses, exceeding the standards and highly appreciated in the very demanding MRO and OEM markets.

- GLOBALCORE™ State-of-the-art  hose product range, exceeding the newest ISO 18752 and providing technical and economical excellence to the most demanding customers.

Good, Better, Best classification system is used for easier hose and fitting understanding and selection with superior performance of Best hoses versus their Better and Good counterparts including:

- Bend radius up to 50% smaller

- Flexibility (bending force) up to 30% higher

- Weight up to 20% lower

- Dimensions up to 25% smaller area

- Impulse resistance and service life up to four times higher

- Working temperature up to 25% higher

Agriculture is one of the typical markets and applications where Good hoses and fittings are the preferred product selection.

For additional information please refer to the supplied documentation or contact us.

EATON AEROQUIP® brand name represents quality and innovation for aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Eaton’s hydraulics were acquired by DANFOSS and form part of DANFOSS product portfolio.

DANFOSS EATON AEROQUIP® AE246/AE446/AE546/AE846 Series Hoses are based on AE246 advanced technology designed, tested and proved high pressure 3000 psi PTFE hose with Hi-Pac®braid reinforcement containing densely packed small diameter wires braided over a minimum thickness Teflon tube. This reinforcement offers up to 50% lighter in weight while the wires absorb stress more uniformly resulting in a stronger wire braid with less metal. Available in different tubing sizes and internal diameters in inches. They meet or exceed AS1339 performance requirements.

The AE546 series hoses feature an integral braided polyester chafe guard (manufactured by braiding polyester yarn onto existing hose styles) while those of  AE246 series come with an integral silicone firesleeve.

The AE446 and AE846 Series hoses are AE246 high pressure teflon hoses with an integral silicone asbestos free fire protection (sleeve), adhering directly onto the hose metal braid and end fittings to form a smooth, tight bond.

Common end fittings used with these hoses include CRES fittings of -3 to -12 thread size, flared (MS33656), flareless (MS33514) or BSP type offered in straight, 45 deg and 90 deg styles.

“Super Gem” Reusable Flared Fittings can also be used with these hoses. They consist of 3 pieces: a socket, sleeve and nipple assembly.Made from corrosion resistant materials elbow fittings are available in standard, 45°, and 90° styles. Mate with AS4395 and AS33514 end connections. These service proven flared fittings provide permanent protection against leakage, even after high temperature aging and pressure impulsing to 250,000 cycles or more. This is due to the separation of the sealing function from the retention function.

The AEROQUIP® hoses are priced and sold by the foot unless otherwise specified. Fittings can be separately purchased in pieces.

For additional information please consult the Product Description section and the supplied documentation.
