KELLY MANUFACTURING (RC ALLEN) RCA 15AK series are TSO'd 3-1/8" ( 80mm) electric directional gyros suitable for both fixed wing and rotor wing aircraft.

The HONEYWELL BENDIX KING® KI 525A HSI is a pictorial navigation indicator used in the KCS-55A compass system which also includes KG-102A Directional Gyro, KMT-112 Magnetic Azimuth Transmitter (flux valve), KA-51B Slaving Control & Compensator Unit and optionally KA 52/KA 57 Autopilot Adapters. It was a popular avionics upgrade for light aircraft until the advent of the Sandell electronic HSI and, more recently, glass-cockpit systems from Garmin, Aspen and others. This indicator combines the display functions of both the standard directional gyro and the course deviation indicator offering the pilot a single view of the horizontal navigation situation. It greatly simplifies course orientation, interception, and tracking resulting in less work from the pilot. Internally lighted, the KI 525A operates at 14 or 28 VDC.

The HONEYWELL BENDIX KING® KI 525A HSI is available in different models to serve application requirements:

- with bootstrap heading synchro to provide source of slaved heading information for any device, such as an autopilot

- with glideslope needle damping for use in high vibration environments such as helicopter

- capable of operating at either 30Hz or 400Hz

- capable of operating at 14 or 28VDC and 5 volt operation

Like other KCS 55A compass system components, the  KI 525A indicator can be furnished in NEW condition or as USED in Serviceable or Overhauled conditions indicated respectively by the letters "SV" and "OH" in the product reference numbers (SKU and  accompanied by the relevant certification (e.g. yellow tag, 8130-3 form). They are also offered as exchanges / trade-ins  for returned customer owned units indicated by the letter "EX" in the SKU.  In the case of an exchange/trade-in option of a customer unit, the  full selling price of the ordered unit is charged and the core credit is refunded or credited towards future orders when our co-operating supplier verifies that the unit is in a reasonable, repairable condition. It is recommended that this option is selected by our customers mainly for upgrades and only in cases when their units are functioning properly at the time removal from the aircraft. In cases when customer units are found by our supplier to be non-repairable, the core deposit shall not be refunded and shipping charges shall apply if customers wish the return of these units to them. Please refer to the Product Description section for technical specifications and additional information.

The LXNAV G–Meter  (accelerometer) is a standalone unit, designed to measure, indicate and log g–forces. The unit is offered in 57 mm or 80 mm diameters for installation into the aircraft instrument panel. It comes in two versions, standard and with flight recorder (FR).

The LXNAV G–Meter has an integrated high precision digital pressure sensor and inertial system. The sensors are sampled more than 100 times per second. Real Time Data is displayed on a QVGA 320x240 pixel 2.5″ high brightness color display. To adjust values and settings the LXNAV g–meter has three push buttons with fixed functions. The top button is ESC (CANCEL), the middle is to switch between modes and the lower button is the ENTER (OK) button.

The unit's inertial platform integrates a  ±8g accelerometer. Device is showing current g–load in navbox/needle and it’s min-max values in bar. Last flight min/max load navboxes are persistent till next flight. Min/Max limits with Warning zones can be defined.

Real Time Data is displayed on a QVGA 320×240 pixel 2.5-inch high brightness color display.

The Logbook menu displays the list of flights. If the RTC time is set properly the take-off and landing time shown will be correct. Each flight item consists of the maximum positive g–load, the maximum negative g–load from the flight and the maximum IAS. This function is available only with “FR” version.

Product Features:

• An extremely bright 2.5″ QVGA color display readable in all sunlight conditions with the ability to adjust the backlight.

• Three push buttons are used for input.

• RS232 input/output.

• Micro SD card

• 320x240 pixels color screen for additional information such as minimum and maximum g–force

• Built in RTC (Real time clock)

• Logbook

• 100Hz sampling rate for very fast response.

• Power supply cable included

The FAA TSO'd RCA26AK (14V) and 26BK (28V) series of electric attitude indicators (artificial horizons) by KELLY MFG (RC ALLEN) are known for their dependability and ruggedness. They incorporate tremendous advances in presentation, precision, and reliability.With a proven track record for dependability and ruggedness, the attractive new extended color schemes and ultra-precise spherical presentation (eliminating old parallax problems) they set a new standard for safety.These gyros provide a more accurate IFR reference for the beginning instrument pilot or a Cat II captain. A new three phase motor/inverter is designed into the gyro enabling it to operate at lower temperatures which extends to useful life. The instruments employ a new, high precision air erection system which provide erection torque for maintaining a proper vertical alignment reference. The erection air is supplied by a turbine pump which is integrally coupled with the gyro motor. Through maximum utilization of unitized construction the design is free of resonant frequencies below 100 HZ and thus cannot respond to low frequency disturbances which can cause dither and premature wear out of the unit. The display portion of the instruments has a directly coupled roll movement, and a pitch movement mechanism identical to that of the field proven vacuum gyros produced by R.C.Allen since 1966. A "pull to cage" spring type force limited mechanism assures immediate alignment and stability whenever power has been applied to the gyro, a feature non-existent on vacuum driven gyros. These artificial horizons have a hybrid inverter which converts the aircraft DC power to the required voltage and frequency for motor operation. All units have a pull cage knob and a power failure flag that drops into view whenever the supply voltage is lost or when the voltage has dropped below a level of acceptable for proper operation of the gyro. Slip indicator can be added to satisfy FAA AC91-75 upon request. Available in 14V or 28V voltage versions with fixed or movable pointer, lighted or unlighted, power failure flag, panel tilt and optional inclinometer. Mating connector MS3116E8-4S and panel screws are now included with each new instrument at no extra charge.

Dimensions: 3.38"W x 3.38"H x 8.14"L

Weight: 2.3 lbs.

TSO'd Electronic Fuel Quantity gauges from UMA INSTRUMENTS (indicated by the letter "T" in the PN) are offered in 1-1/4 in. and 2-1/4 in. sizes for installation in respective panel hole diameters and mounted with (4) 6-32 screws. Smaller 1-1/4 in. instruments can be cluster mounted as close as 11/2” centers utilizing panel space without compromising readability. They can be powered from 14 or 28 volts. Signals are acquired from remote mounted sensors, processed and displayed on black analog dials with white easy to read markings indicating empty to full fuel level. Each gauge uses rugged aircore meter movement for vibration resistance and repeatability. Available in different versions based on their sender type and range. UMA sensors are sold separately.

Sigma-Tek 5000B Series Attitude Indicators (Artificial Horizons) are air-driven gyros that have a pictorial horizon mask and fixed airplane. The mask moves to indicate climb, dive, and bank. Bank and pitch attitudes are displayed so that the pilot’s sensing of the gyro indication is the same as the interpretation of the relation between the wings of the aircraft and the natural horizon during visual flight. These instruments are FAA certified (TSO-C4c), and can be used to replace the aircraft’s turn coordinator when equipped with an inclinometer. Different versions available mainly based on the layout, dispay colors, warning flag and lighting capabilities. Lighted indicators do not include lamp trays which are sold separately based on the aircraft voltage (14V or 28V).

Amphenol MS MIL-C-5015 Circular Plug Connectors are designed to meet the demanding performance requirements of military standards. These cable mount circular plug connectors have proven electrical capability for equipment applications where durability is important. The Amphenol plugs have threaded couplings and single key/keyway shell polarization for an accurate and reliable connection. The solid shells of these MS Series circular MIL-C-5015 connectors are made from high grade aluminium alloy. The shells are electrically zinc plated with an olive drab chromate finish which ensures a high resistance to corrosion. The inserts of these military circular connectors are made from resilient synthetic rubber which offers a high dielectric strength and resistance to vibration.

The MS3106A-10SL-3S plug can be used with Turn Coordinator TC02E-3-2 or Turn & Bank Indicator TB02E-2-1.

VDO Fuel Level Gauges have always been known for the superb fit, finish, and appearance, as well as the wide range of styles VDO offers. VDO Fuel Level 10-180 ohm Gauges  are offered in 2" and 2-1/4'" diameters with matching Fuel Level Senders  (aka sensors or probes) for their operation. This 12/24 VDC Fuel Level Sender has a resistance rating of 10 ohms when the tank is empty and 180 ohms when full. The unit can be adjusted to read accurately in tanks from 6" to 23" deep. In the case of the 2" 33-240 ohm Fuel Gauge, the appropriate fuel sender is P/N 226-007.

VDO product range also include Standard Tubular Level sensors mounted direct into the tank with different tube diameters and lengths from 200 mm to 650 mm and different resistances. They feature:

- Resistance output

- Compatibility to the VDO gauges 301-010-00X and X10-110-981-009  (adjustable to 60 to 90 Ohm at empty).

- M4 bolt and hexagon nut or 6,3 x 0,8 mm spade terminal

- Optional ground connector

- Optional warning contact

- Mounting bolt circle 54 mm dip tube fuel senders with different tube diameters and lengths.

For additional information please consult the supplied documentation or contact us.

The AVIASPORT indicators (gauges) are reliable, accurate and solid, combining the accumulated experience of more than twenty years with the latest technology  They have been designed for ROTAX engines and their display areas are divided into red, green and yellow zones in line with Rotax limits. They use a pointer that turns 240º or 320º, providing high resolution. AVIASPORT range of gauges includes CHT, EGT, tachometers, oil and fuel pressure, oil and coolant temperature, fuel level, voltmeters & ammeters and offered with casings of different sizes: 80mm; 57mm and 52mm.

The AVIASPORT fuel pressure gauges  have been designed especially to measure fuel pressure in Rotax® engines 912 and work both with 12V and 24V systems. Unlike mechanical gauges, the AVIASPORT ielectronic gauges use a high precision sensor to be installed close to the engine, preventing fuel lines in the cockpit. These gauges are sold without sending units or as kits with matching senders whenever specified.

UMA Non TSO'd airspeed indicators are offered in 2-1/4" and 3-1/8" Single (MPH) and Dual Range (MPH/Knots) versions for installation on experimental aircraft only. They are housed in Valox 420 plastic cases and weigh 8.6 oz. . Depending on the selected indicator, ranges are in MPH, Knots or kilometers. Some inicators are also offered as certified (FAA TSO'd) units. Standard dial markings are black and white. Optional custom range markings and optional internal lighting(*) are also offered upon request at additional cost. Please indicate the markings option (if markings are required) and lighting option at the time of ordering.

(*) Note: An inverter is required for the Internal Lighting Option.

The FLYdat Engine Management Unit (EMU) has been specially developed by TL ELEKTRONIC for BRP-ROTAX® aircraft engines for storing & indicating engine operating data including Engine Speed, Cylinder Head temperature (CHT), Exhaust Gas Temperature (EGT), Ambient Air Temperature (not on 912 / 914  engines), Cooling Water Temperature of  (only on 582 UL, 618 UL engines), Oil Temperature & Pressure (only on 912 / 914 engines) & hours of operation. It featured  8 sensor input ports, variably occupied according to engine type. In addition, all the input ports were equipped with an alarm, responding when the signalled engine operating value was equal or above the respective stored operating limit. The FLYdat could be used with BRP-ROTAX® 447 UL SCDI, 503 UL DCDI, 582 UL DCDI, 618 UL DCDI, 912/914 DCDI series engines.The engine type, engine number, hour of operation, temperature unit and the respective engine limits could be programmed.

The FLYdat is no longer a listed TL ELEKTRONIC product. It can be replaced by its direct successor, TL ELEKTRONIC Integra TL-6724 Digital EMS, developed in cooperation with BRP-ROTAX®, which forms part of Integra family of Multifunctional Flight Instrument (EFIS) &  Engine Monitoring Systems (EMS) for Light Aircraft. FLYdat units in NEW SURPLUS & USED Conditions, and related parts, may still be supplied depending on existing inventories. Other Aircraft Engine Monitoring Systems (EMS) from different manufacturers (listed separately) are also offered and they could also be considered as alternatives.

The Integra TL-6724 multifunctional EMS integrates all primary engine instruments (i.e. Tachometer, Manifold Pressure Indicator, EGT, CHT, Oil and Water Temperature Indicator, Fuel Quantity, Fuel Pressure and Fuel Flow Indicator, Voltmeter, Ammeter, Timer, IAT, OAT etc.) and also propeller control for Constant Speed and Choke Control. Designed for use with all light aircraft engines. Its EFIS counterpart, TL-6524, integrates all primary engine instruments and also includes navigation systems (HSI, CDI with connection to the popular Garmin SL-30 and many others) and worldwide 3-D terrain maps. For a total glass cockpit solution, TL-6624 EFIS & EMS Integra integrates all the features of TL-6524 and TL-6724, while TL-6824 Remote Integra Display is also offered displaying all flight and engine data measured by TL-6524, TL-6624 and TL-6724.

Integra glass cockpit instruments include advanced features such as wide viewing angles, brilliant color and direct sunlight readability,  comfortable, user-friendly control of functions,backlight of buttons & sensors for automatic dimming,display of analogue instruments,downloadable values of engine functions through USB port,constant monitoring of all measured engine operating data,direct headphone voice warnings,internal back up battery etc.

Non-certified INTEGRA devices should not be installed in a certified aircraft.

For additional information contact us.

HONEYWELL BENDIX KING® KI-229 Radio Magnetic Indicator (RMI) provides bearing information to either ADF or VOR stations by means of two pointers each of which is read against compass card.

The KI-229 RMI combines three data points on one indicator. The current aircraft heading from an HSI is shown on the card. The magnetic headings to VOR and NDB stations are shown by the twin needles. By combining all this information visually, less interpretation is required thus enhancing overall situational awareness, something especially helpful when the workload is high.

The KI-229 requires inputs from ADF, HSI and NAV receivers.

Product Features:

14/28 volt lighting

Compatible with Nav Receivers such as KN-53, KNR-615, KNR-630/631/632/633, KNR-634, KNR-665, and KNR-665A

Compatible with Nav systems including RNAV such as KNS-80 and KNS-81

Compatible with ADF receivers such as KR-87 and KDF-806

Compatible with Compass systems such as KCS-305 and KCS-55/55A

Requires input ARINC Compass System

TSO'd

Product Specifications:

TSO Compliance: Env. Cat. RTCA DO-160A A1C1/A/SKP/XXXXXXA/B/AAA

Weight: 2.8 lbs. (1.3 kg)

Temperature: -20 to +55°C

Altitude: 35,000 feet

TSO (Compass): TSO C6c

TSO (ADF): TSO C41c Class A

TSO (VOR): TSO C40a

Heading Input: Operates from any slaved magnetic compass with ARINC X,Y,Z outputs

VOR Video Input: 0.5VRMS 0 deg. phase composite 30Hz variable AM and 30Hz reference FM on a 9960Hz carrier (0.7VRMS maximum)

OMRON A3C series cylindrical pushbutton switches have the basic design as the M2C Series cylindrical indicators. They provide a high-intensity uniform surface lighting while they have a miniature size with excellent feeling of operation. They have a cylindrical 20-mmX12-dia. body making panel cutouts easier. These switches are offered in lighted and non lighted versions, different colors, display shapes, with LED or incandescent lamps and different socket units. Please consult the attached documentation for ordering.

These UMA new manufacture NON TSO'd electric ammeters offer accuracy, rugged construction, and contemporary styling. They are available in different  measurement ranges with a 270° sweep and are suitable for installation in 2-1/4" panel hole diameters. Made in U. S. A. and furnished with shunt.

UMA line of precision electronic pressure senders feature precision, solid state sensors and circuitry to give unequalled performance and are designed for rugged use in just about any environment.  They are offered in TSO'd and Non TSO'd models and gauge, differential and absolute types. UMA TSO'd electronic pressure senders are the most economical TSO’d units on the market. They are compatible with avgas, jet fuel, engine oil and many other fluids. Because they have internal voltage regulation, they are compatible with indicating instruments that do not have precision output voltages. Units for fuel and oil pressure are certified under TSO C47. Units for manifold pressure are under TSO C45a. For additional information please refer to the attached documentation.

The 730/830 Engine Monitoring Systems (EDM) from JP INSTRUMENTS revolutionize engine monitoring by the compact size integration of a full color graphical LCD display with the extremely popular EDM 700/800 series functionally. Both 730 and 830 EDMs feature: colourful graphics, larger data display for easy reading, parameters in full colour, annunciation of exceedances, less page swapping, more data per page. The units are "Plug and Play" compatible with existing EDM-700/800 units. Oil pressure has also been added to the entire EDM series line.  Both 730 and 830 are FAA approved for use as secondary engine monitors. However they CANNOT BE USED as a replacement for primary gauges which have to be maintained. Different options and accessories are also available at additional cost.

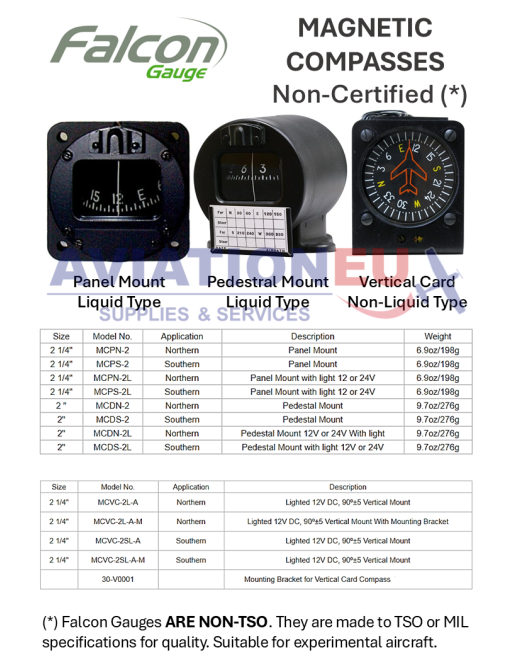

WULTRAD INC. is a manufacturer of non-certified flight and engine instruments under FALCON GAUGE brand for experimental and homebuilt aircraft. Although their products are Non-TSO, they are made to TSO or MIL specifications for quality.

FALCON GAUGE Electrical Attitude Gyro is intended for use in experimental aircraft only. It provides a continuous visual display of the aircraft attitude with respect to the earth for maneuvering around the longitudinal (pitch), and lateral (roll) axes, and yaw. A precision AC brushless motor is featured in the electrical attitude gyro. The Power failure drops into view whenever the power is insufficient for operation of the gyro. Electrical gyro can be caged by pulling the "Pull to Cage" knob. It is offεred with or without internal lighting and is designed to work with a 12V system. Dimension: 3-3/8"X 6.46/164mm.

The STRATOMASTER VEGA range instruments/indicators from MGL AVIONICS includes different 2 1/4" (57mm) microprocessor based color display instruments operating over a wide supply voltage range of 8 to 30V DC with with built in reverse and over voltage protection. They are non certified and only suitable for installation in experimental and sport  (LSA) aircraft. Using a high resolution color graphics display, these instruments/indicators provide excellent daylight readability with built in backlighting making them easy to read at night time. They include a rotary control plus 2 independent keys for easy menu navigation and to access specific instrument features. Sensors are also offered to enhance their functionality. The MGL AVIONICS STRATOMASTER VEGA Series instruments/Indicators include: Artificial Horizon & Magnetic Compass Display, Altimeter/VSI, ASI, ASI/VSI, Engine Monitoring System (EMS), Fuel Computer, Information Display, Manifold Pressure, Température, RPM, Hobbs, Universal Engine/Rotor RPM, Hobbs, 4-Channel Thermocouple (EGT/CHT), 4 Channel Universal Analog Input (Pressure/Temperature/Voltage/Current) and NAVCOM Control head for MGL N16 NAV/COMM or V16 COMM VHF.

The RAY ALLEN (RAC) RP4 LED position indicator is designed to be installed in the cockpit providing an indication of the servo output shaft position. This indicator supercedes and it is a direct replacement for previous RAC RP3. The RP4 indicator uses ten LED lights to show the position of a actuator output shaft (or position sensor arm). There are also two amber colored LED's, one on each end of the indicator scale, to act as a reference for the green indicator light, especially in dark conditions. The 10 LEDs are the brightest available for superior visibility in sunlight, but can be dimmed for night flight. It can be installed horizontally or vertically.

The RAC RP4 position indicator is panel mounted using a faceplate and two countersunk, 2-56 x 7/16" screws (two spare finishing screws are included). The distance between the screw holes is identical to the older Ray Allen RP3 LED indicator. Although the faceplate dimensions are identical between the RP3 and RP4 indicators, the panel cutout size is slightly different between the RP3 and RP4. If you are replacing and older unit with a new RP4, you will only need to increase the size of your panel hole. The RP4 faceplate will cover the older RP3 panel hole.The RP4 faceplate measures 1.75"(45 mm) X .75"(19 mm) and it is 1.6"(41 mm) in depth. It is now the standard position indicator included in Ray Allen trim systems, or can be purchased separately for special applications such as a cowl or wing flap indicator.

The RP4 includes a RP4-L1 label (featuring Elev1, Elev2, Ail, Rudder, Flaps). A RP4-L2 label (featuring Cowl Flaps, < >, on/off) is also available and is sold separately.

NOTE: Labels can only be ordered together with . In ordering these high quality labels please be advised that rocker switches and needle indicators require a large label, LED indicators use a small label. Can be only included in orders of respective RP4 position indicator(s) (not separately).
