CONCENTRIC HE Series AC/DC power packs allows the selection from a broad range of standard components to design a power system to meet the exact specifications of applications, both vertical and horizontal, with a full range of valving, motor, pump and reservoir combinations and minimum inventory for maximum cost efficiency. Other advantages of the HE power packs includes low power consumption, quiet operation, proven field performance and long service life. Concentric HE2000 Series AC/DC Power HPUs  can be coupled via suitable hydraulic lines to a wide range of operating mechanisms. They normally operate hydraulic cylinders, but can be used with any other hydraulic actuating device. A unit can individually control up to four (4) hydraulic cylinders.

Product Features:

All units have:

12 or 24 VDC motors

Adjustable internal relief valve preset at factory

Load holding check valve

Reservoirs plumbed for horizontal / vertical mount

Various size cylindrical/rectangular reservoirs

9/16˝-18 SAE outlet and return ports (P/N 1303835 1/4˝-18 NPTF ports)

140 x 170 mesh inlet strainer

Please refer to the attached documentation for specifications & additional information.

An extensive range of standard MIL-SPEC and Cessna pulleys and pulley kits is offered by McFARLANE® AVIATION. The kits contain all pulleys and cotter pins required to replace all flight control system pulleys in one airplane containing the respective part numbers and quantities required. Different McFarlane pulley series include:

MCS378 Series phenolic flight control pulleys with ball bearings, FAA-PMA approved replacements for the Cessna S378, A-/BB-, and NAS383- series pulleys on Cessna Aircraft. The MCS378- series pulleys supersede these for most Cessna aircraft applications and  feature high quality sealed precision ball bearings, superior to low grade, open seal bearings used in the Cessna S378-()L light duty series pulleys that they replace.

MS20219 Series aircraft secondary control pulleys, superseding the respective AN219 series pulleys are offered either with high pressure laminated phenolic sheave (MS20219 Series) or aluminum alloy sheave anodized per MIL-A-8625 (MS20219A Series), both with fixed ball bearing with contact seal. The aluminum body is recommended for -1 and -3 pulleys. The -1 pulley should not be installed in flight control systems.

MS20220 Series phenolic flight control pulleys with ball bearings. These supersede the AN220- Series pulleys of like dash number.

MS24566 Series phenolic flight control pulleys with ball bearings. MS24566 pulleys can be used to replace the corresponding AN210 pulleys designated by the letters "A" or "B" in their dash numbers as they differ in the maximum load limit.

NAS383 Series phenolic commercial grade pulleys with graphite impregnated bronze sleeve bearings. These are typically used with a bushing. The MCS378 pulley replaces both the NAS383 pulley and it's bushing.

S394, S1052-1/ S1710-1 Cessna nylon pulleys with no bearings.

S378-4S Cessna pulley similar to S378-4 but with smaller diameter. Used on Cessna airplanes 177RG s/n 177RG0202 and on, and F177RG0038 and on for routing stabilator, stabilator trim, and rudder cables. Six required per aircraft.

1660433 Series Cessna phenolic pulleys with ball bearings.

MS24665 series cotter pins are also available with the pulley kits or separately in packs of 10 or 25.

Please refer to the individual product presentations, the respective charts provided for specifications and cross-reference information or contact us.

The EATON AEROQUIP FC300 are AQP elastomer hoses with a blue, abrasion-resistant fabric cover with single wire braid reinforcement over a synthetic rubber inner tube for longer life. The FC300 hoses are designed for high pressure fluid applications such as power steering, hydraulics, air, fuel, lubricating oils, fire resistant hydraulic fluids and other industrial fluids. They are also suitable for biodiesel use up to B20 and max temperature of 212°F (100°C). Available in different internal diameters in inches and for use in different maximum operating pressures (psi). Priced and sold by the foot.

Indicative Applications:

Power steering lines

Hydraulics

Air

Gasoline

Fuel

Lubricating oils

Over the wall air tool

Dot-approved air brake

Max operating pressure is 2250 psi

Operating Temperature Range

-55°F to +302°F (-49°C to +150°C)

Air not to exceed +250°F [+121°C]

Notes:

(1) The FC300 Hose only works with FC300 steel fittings (to be ordered separately). Easily assembles with a bench vise and/or wrenches.

(2) FC300-32 and FC300-40 hoses DO NOT meet SAE 100R5 pressure with reusable fittings. FC300-32 is rated to 350 psi with crimp fittings.

Clip-Locking Turnbuckles utilize 2 locking clips instead of lock-wire for safety. The turnbuckle barrel and terminals are slotted lengthwise to accommodate the locking clips. After the proper cable tension is reached the barrel slots are aligned with the terminal slots and the clips are inserted. The curved ends of the locking clips expand and latch in the vertical slot in the center of the barrel. They are available for different cable diameters and thread sizes in inches covering desired minimum breaking strength requirements.

Different turnbuckle components listed below are used in turnbuckle assemblies. They are sold separately to meet application requirements. Please refer to the attached documentation.

MS21251 Series Barrels (superceding those of AN155 series)

MS21252  Series Fork Ends (superceding those of AN161 series)

MS21254 Series Pin Eye Ends (superceding those of AN165 series)

MS21255 Series Cable Eyes (superceding those of AN170)

MS21260 Series Cable Swage Ends (superceding those of AN669)

MS21256 Series Clips

The FIRST letters "R" or "L" following the dash number designate a RIGHT HAND THREAD or LEFT HAND THREAD respectively.

The SECOND letters "S" or "L" following the dash number indicate a SHORT LENGTH or LONG LENGTH respectively.

GROVE manufactures axles and hardware for use in GROVE wheels as well as those of other manufacturers.

GROVE 500x5 wheel axles (P/N. 5013 standard and P/N. 5018 with wheel pant stub) are produced from solid 2024-T3 aluminum with anodized finish. They have a 1-15/16" Bolt Circle hole pattern and 1/4" diameter holes.

500x5 1-1/4" diameter standard axle (P/N. 5013) is the most popular axle for 500x5 wheels. It is designed to fit Grove 50-1, 51-1, 56-1, 57-1, 57-5 and Cleveland 500x5 wheels. Axle Weight: 0.92 lbs. Static Load Rating 1,250 lbs.

500x5 1-1/4" diameter axle (P/N. 5018) has built-in wheel pant stub with 1/4-28 thread. It is designed for use with Grove 50-1, 51-1, 56-1, 57-1, 57-5 and Cleveland 500x5 wheels. Axle Weight: 0.95 lbs. Static Load Rating 1,250 lbs.

Both axles require two spacers per axle (P/N. 5710) sold separately.  I.D: 1-1/4", O.D. 1-3/4", Thickness: 1/4". They can be used with 500x5 axles.

Standard axle nuts and axle bolt kits sold separately are also offered as part of GROVE product portfolio. Castle type nuts are manufactured to MIL Specification MS21025 using 4140 steel. Mild steel nuts are not acceptable for use on certificated aircraft. 1-1/4" dia. nuts for 500 x 5 axles, 1-1/2" dia. nuts for 600 x 6 axles.

Wire/cable dash controls are locking units securing wires/cables from turning loose from vibrations. These controls can be mounted from front or rear of instrument panel.

T-handle dash controls are offered as part of our own branded (AVIATIONEU NEW ERA) product lines. They are sourced from quality manufacturers and made from duralumin and brass. One-fourth turn locks them in any position. T-handle dash controls have a width of 1-3/4" and a standard 2-1/2" travel. They can hold up to 100 lbs. These controls are offered in single or two wire versions and come complete with wire(s) and casing which may be shortened.

In the two-wire T-handle dash controls, two cables come out of the T-handle. The inside wire is .073" and the outer housing is 2" OD. Single wire T-Handle dash controls are available in three models with 5, 8 or 12 feet cables with the following specifications:

Model No.:36338100

Cable Length: 5 ft

Mounting Thread: 7/16-20

Wire/Cable Diameter: 0.054 in.

Cable Housing Diameter: 0.190  in.

Model No.: 36200046

Cable Length: 8 ft

Mounting Thread: 7/16-20

Wire/Cable Diameter: 0.072  in.

Cable Housing Diameter: 0.215  in.

Model No.: 36200047

Cable Length: 12 ft

Mounting Thread: 7/16-20

Wire/Cable Diameter: 0.072  in.

Cable Housing Diameter: 0.215  in.

OMRON A3C series cylindrical pushbutton switches have the basic design as the M2C Series cylindrical indicators. They provide a high-intensity uniform surface lighting while they have a miniature size with excellent feeling of operation. They have a cylindrical 20-mmX12-dia. body making panel cutouts easier. These switches are offered in lighted and non lighted versions, different colors, display shapes, with LED or incandescent lamps and different socket units. Please consult the attached documentation for ordering.

The company SPECIALITY TIRES OF AMERICA (formerly McCREARY TIRE & RUBBER providing automotive tires) manufactures a wide range of aircraft tires under different brands including SUPER HAWK®, AIR HAWK®, AIR TRAC®, AERO CLASSIC® & AERO TRAINER® as well as matching tire tubes. Different brands (series) briefly presented below are separately listed. For more information please refer to the supplied documentation.

SUPER HAWK® tires are the best choice when  the highest levels of performance and extra-long tread life are required. Designed to handle higher landing speeds and heavier loads, these tires combine advanced design & over 90 years of precision tire craftsmanship resulting in premium belted aircraft tires that surpasse FAA specifications and match the performance of more expensive brands.

AIR HAWK® tires are premium grade & priced tires, but provide longer service life. Excellent choice for a wide range of applications. Improved tread compounds and high-strength casings offer added wear resistance and an extra measure of security. AIR HAWK® tires are FAA approved and tested by thousands of pilots, delivering a reliable, cost-effective performance under a wide variety of takeoff and landing conditions.

AIR TRAC® fine nylon cord narrow-ribbed, oval shaped tires are designed for soft field applications and rigidly tested to meet FAA Standard TSO-C62. The  AIR TRAC  tires consist an excellent choice for single engine, piston aircraft. Thesy are ideal for aircraft operated on grass strips while being perfectly usable on hard surfaces. These tires are are original equipment on many of today’s aircraft and offer a great performance in an economical tire. AIR TRAC® tubes are the perfect match to the AIR TRAC®  tires.

AERO CLASSIC® tires are designed specially for classic planes including warbirds, DC-3's, and Beech 18's, often the only manufacturer producing tires for these aircraft. The product line includes over 50 tires and tubes, from 8" diameter for tailwheels, up to 56" diameter C-130 inner tubes. AERO CLASSIC® tubes are tested to MIL-I-5014F standard.

AERO TRAINER® tires are designed for flight schools with single engine trainers. They combine the high quality and durability with a competitive price.

SPECIALITY TIRES products are supplied with a standard Certificate of Conformance. If an FAA/EASA Form is needed (depending on the ordered item) please mention this during the order placement. In this case, additional cost may apply.

TOST Flugzeuggerätebau designs and manufactures top quality products including aircraft wheels, brakes, tires, tubes, glider towing and launching equipment and tow releases serving the needs of aviation sports and industry. TOST and TOST AERO brands for tires are synonyms for safety in aviation.. TOST wheels are used worldwide in gliders, motor gliders, aircraft, ultralight, amphibium aircraft, helicopters and gyrocopters but also in heavy-duty applications.

TOST Landing Wheels (LR) are designed for use in aircraft as nose wheel, tail wheel, support wheel or as unbraked main wheel and they are offered in different series and various dimensions and constructions. TOST Disk Brake Wheels (SB) are presented separately.

Mini 150 & 180 Series, fitting tire diameters 150 mm and 180 mm respectively, are the smallest available wheels with pneumatic or foam-filled tires providing good suspension and absorption properties.

Moritz Series 3″ Tail Wheels are available in two versions: Moritz, a sturdy aluminium die-cast wheel hub with fins sector and Moritz II, a two-part wheel hub CNC milled from aluminium.

Max Series 3.5″ Tail Wheels fit tire size 200 x 50, widely used for tail wheels of gliders and motor gliders.

Classic Series 4″ Landing Wheels can be used as sturdy nose wheels and main wheels or for special purposes.

Tria 4″ Landing Wheels are convenient for applications, in which a low weight combined with a high strength are required.

Classic Series 5″ Landing Wheels are used as aircraft nose wheels and other heavy duty applications.

Penta 5″ Landing Wheels can be used to save weight as well as a possible replacement for landing wheels equipped with inch bearings.

The 5″ Tubeless Landing Wheels can be used  to realisze a further weight reduction.  The weight decrease is about 15% in total weight compared to a wheel hub with tire and tube (tubetype TT).

Mike Series 6″ Landing Wheels from aluminium diecast with deformable fins sector are particularly suitable for high loads.

Penta Series 6″ Landing Wheels can save weight compared to the Landing wheel (LR) of the 6″ Classic series.

Classic Series 10″ Landing Wheels can be used in the range of high-tensile special applications.

Matching TOST AERO tires and tubes are offered for all TOST Landing Wheels. Please consult the tables with information on available tires and tubes for the different series.

For additional information please refer to the Product Description section and the supplied documentation.

The HEIM® BEARINGS company has been acquired by RBC® BEARINGS, a leader in the world of highly engineered bearing products.

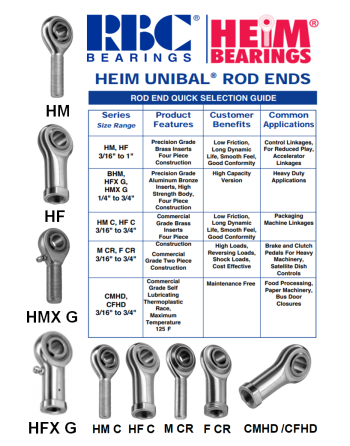

HEIM® BEARINGS produces the industry's widest range of rod end bearing sizes (aka rod ends) in  the following four grades (types): precision, aircraft, military and commercial with each grade including different series suitable for respective application requirements. HEIM® BEARINGS are made from different materials featuring among others high strength two piece designs, high capacity designs, self-lubricating options and thermoplastic races or Teflon® liners. Please consult the supplied table on different grades and series offered.

- Precision rod ends are manufactured to tight tolerances for applications requiring improved linkage accuracy and reduced looseness.

- Aircraft rod ends use premium materials, and have magnafluxed rod end bodies. Originally intended for aircraft applications, aircraft rod ends are used in many industrial applications where a high degree of reliability is required

- Military rod ends are produced in strict accordance with all applicable military specifications and are typically used in military and commercial aviation applications, or when Mil-Spec approval is required

- Commercial rod ends are produced using standard materials and manufacturing methods, and consist an economical choice for industrial applications

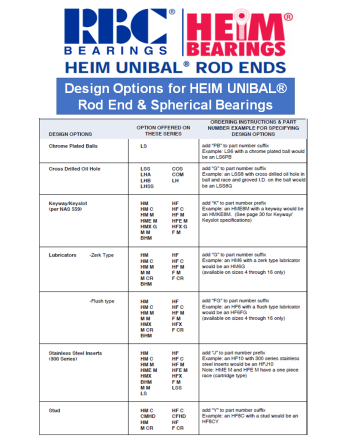

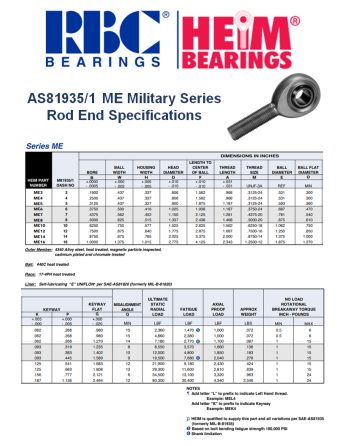

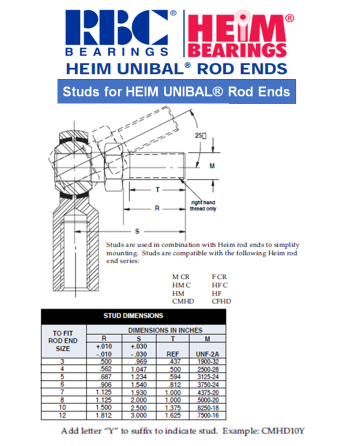

The HEIM® BEARINGS M M & F M  series are Precision Special Purpose Aircraft rod ends male and female threaded respectively. Their outer members are manufactured from carbon Steel, magnetic particle inspected, with protective coating for corrosion resistance, the balls from 52100 Alloy steel, heat treated, chrome plated and inserts from brass. The letter “L” to prefix indicates Left Hand thread.

Please refer to the supplied chart for technical specifications and the RBC® HEIM® Bearings Catalog for additional information.

Honeywell is a leading switch and sensor provider for many HVAC applications, including airflow, VAV control, boiler/chillers, motors, and more.  Products include pressure sensors, digital humidity/temperature sensors, magnetic position sensor ICs, current sensors, pressure switches, basic switches, and more.

Honeywell's MICRO SWITCH switches fill many roles in a wide range of applications, including presence/absence/positioning, inspection/recognition, condition measurement, and operator/machine interface. They range from sealed switches used in high temperature aerospace applications to large cable-pull switches ensuring safety on conveyors.

Honeywell's snap-action basic switches are simple, superior, durable, and irreplaceable. Globally compliant and known worldwide for their compact and lightweight design, MICRO SWITCH snap-action switches are designed for accurate repeatability and extended life. MICRO SWITCH Basic switches are designed for presence and absence detection where physical contact with an object is permissible. They also excel in applications requiring simple on-and-off actions.

Honeywell's  Standard families of Basic and Miniature switches include V15 series, and are designed with the same high quality standards, but for low cost-of-failure applications — ones where the cost of replacing the switch is less than the total cost of a switch failing.

The Premium families of MICRO SWITCH Large and Subminiature switches are designed for high-precision applications where the cost of a switch failing is high maintaining enhanced accuracy and repeatability. MICRO SWITCH premium basic switches are offered in different series, they feature precise and accurate characteristics. Available in large, miniature, and subminiature switch sizes, MICRO SWITCH premium basics are customizable to provide unique actuators, different terminal combinations, custom characteristics, and even value-added wires… to meet customers’ application requirements. With many Honeywell premium basics, they are tested and certified to a higher cycle count.

BERINGER AERO manufactures a range of wheels, brakes and related parts for use on certfied and non-certified aircraft (LSAs, experimentals and gliders). Their product portfolio includes among others wheels,Certified (STC) and Non Certified wheel/brake assemblies, wheel and brake parts and related tools.

Wheel and brake parts are included in this presentation while wheels and wheel/brake assemblies and tire options are separately presented.

For more information please refer to the Product Description section and the supplied documentation or contact us.

The SPRL fuel locking and non-locking caps have secure sealing and easy finger tip operation. These caps are made from the highest quality modern engineering plastics with Viton o ring seals (which can be easily replaced). The mounting rings are anodized aluminum with the flange recessed to give a perfect flush fit whether it is riveted under a metal skin, as in the RV series, or built into a composite structure. The SPRL caps are non vented and recommended to keep the fuel in, the water out and in the locking version, other unwanted items out of your tank.

SPRL-L (locking) and SPRL-S (non-locking) fuel  caps have an 65 mm O.D. and can be used on Europa, Compair, Glasair, Lancair, Murphy, OMF, Rocket, Velocity, Zenith and many more experimental aircraft. Wt: 80 grams.

Military Specification MS35058 Series Toggle Switches can be used to upgrade your aircraft's cockpit controls. These heavy-duty metal switches have a standard shape that works well for a variety of applications can be used for most components that only function in either the on or off positions. They are available in several sizes to fit your particular airplane and are shipped with all necessary rings and hardware for installation. Toggle switches are available with two or three operating positions, 1 or 3 hole mounting and a variety of circuitry & electrical ratings. Contacts are made of solid silver. Wide usage is found in aircraft, mobile, marine, electronic and industrial applications. Available in full "AN" standard size & Ultra Miniature 1/2" size, contact types and circuit codes (see reference chart).

Master Relay (Battery Solenoid) for all homebuilts (not suitable for certified aircraft). Continuous duty. Offered for 12V and 24V systems.

Bellcrank bearings are commonly used for various control bellcranks throughout many experimental aircraft. They are prepacked with lubricant conforming to Mil. -G23827, inspected per Mil. I 45208A and 100% traceable. Operating temperature range -30 Deg. F to +250 Deg. F

Gill has become the OEM "original equipment battery" for Raytheon, Cessna, LearJet, Mooney, Piper, Ayres, Airtractor, Maule, Scheizer and other commercial, private and military aircraft  in the aviation industry and continues to be the industry's choice for quality battery products. In addition to the traditional Dry Battery line, Gill offers the LT Battery Sealed products featuring improved shelf life, lower weight, dependability, durability, high reliability, improved energy density, robust construction, testing and approval to DO-160E as well as FAA/PMA approval.

LT Series Batteries are fully recyclable and ship Hazmat exempt (Non Dangerous Goods).

The RBC® BEARINGS offers a full line of airframe control ball bearings to the aerospace industry  in both “Standard” and “Precision” series. The prefix “M” in a bearing number indicates that it is of a precision series. Although designed and manufactured under demanding quality control requirements for airborne systems, these bearings have been successfully used in many industrial applications, where oscillatory movement, high loads, or corrosive environments are prevalent.

RBC® BEARINGS airframe control ball bearings conform to SAE-AS7949 (formerly MIL-B-7949) and many major OEM specifications. These bearings are of lightweight design, corrosion-resistant, grease-lubricated, and typically sealed. Airframe control bearing rings and balls are made of hardened bearing alloy, AISI 52100, with all exposed surfaces, except bearing bore, caps and seals, plated for corrosion protection. For improved corrosion protection, RBC® BEARINGS  supplies bearings made of hardened stainless steel alloy, AISI 440C. This alloy may be passivated or plated with cadmium or zinc nickel for enhanced corrosion protection.

The RBC® BEARINGS Airframe Control Ball Bearings are offered in different series. The KP/KP-A and KSP/KSP-A series, presented separately, are briefly discussed below.

KP (Heavy Duty) and KP-A (Medium Duty) SAE-AS7949 Series radial ball bearings  manufactured with Plyoseals. KP heavy duty single row sealed bearings comply with MS27640 specifications while KP-A medium duty single row ball deep groove sealed bearings with MS27641 specifications. Both KP and KP-A radial ball bearings are prelubricated for life and feature PTFE seals and CRES sealcaps, cadmium plated exposed surfaces except bore, caps, and seals. Both are also offered with CRES 440C material and/or zinc nickel plating per OEM specifications. Load limit ratings: Radial 1230-lbs, thrust 300-lbs.

KSP/KSP-A Series SAE-AS7949 Series single/double row, self-aligning, light and heavy duty ball bearings with bonded PTFE seals and cadmium plated exposed surfaces except bore, caps, and seals. Like those of KP/KP-A Series, both KSP and KSP-A bearings are prelubricated for life and are also offered with CRES 440C material and/or zinc nickel plating per OEM specifications.

For additional information please refer to the supplied documentation in the respective product presentations.

Modern reciprocating-engine aircraft (especially large and high-performance ones) use electrically operated auxiliary fuel  boost and transfer pumps  to keep fuel moving toward the aircraft engine or move fuel between tanks to balance aircraft weight. Centrifugal boost pumps,  electric motor driven,  are the most common type and  are used to supply,back up the engine-driven fuel pump or transfer fuel between tanks if the aircraft is so designed. They are  most frequently  submerged in the fuel tank or located just outside of the bottom of the tank with the inlet of the pump extending into the tank. Cartridge/canister or in-tank mounted pumps supply fuel to the aircraft engine while reverse flow through the pump is prevented by check valves. The cartridge/canister design allows removal of the pump cartridge without draining the fuel tank. If the pump is mounted outside the tank, a pump removal valve is typically installed so the pump can be removed without draining the fuel tank.

The RAPCO FAA-PMA approved pumps are offered as direct replacements of the respective pumps by OEMs  such as PARKER AIRBORNE or DUKES (please refer to their separate product presentations). The letters " RA" in the beginning of the RAPCO part number are used to denote the correlation of RAPCO part number to the OEM part number. They incorporate modern design, materials, and manufacturing processes to provide high quality and performance fuel pumps at competitive prices.

These pumps can be furnished  as NEW or OVERHAUL EXCHANGE, namely new or overhauled pumps in exchange of existing customer owned units (cores). In all exchange cases,  the  full selling price of the ordered unit is charged and the core credit is refunded or credited towards future orders with us when our co-operating supplier verifies that the unit is in a reasonable serviceable condition. In the case of overhauled pumps, these are overhauled in accordance with FAA-approved process specification and come with a FAA Form 8130-3. All  RAPCO fuel pumps are thoroughly tested for guaranteed pump performance, with a worldwide distribution and a full warranty (same as OEM). For additional information please consult the supplied documentation (*) or contact us.

(*) The supplied documentation is to be used for reference only. When selecting a part for installation consult the appropriate aircraft maintenace manual, parts catalogue, or equipment list for approved data.

This new MERCURY MARINE Mercruiser replacement Trim Pump replaces the older P/N 14336A17 trim pump. Used on MERCURY MARINE Mercruiser Alpha One, Alpha Gen II and Bravo Drive applications. Matched to the larger new style trim cylinders.
