TYCO ELECTRONICS TE CONNECTIVITY™ PIDG ring tongue terminals  are available in different colors, wire sizes (AWG) and stud sizes. Appearing sizes are in inches. Each TE CONNECTIVITY™ insulated terminal consists of a tin plated copper body, a tin plated copper wire support sleeve and a color-coded insulation sleeve. They meet respective MIL specification.

INTERCONNECT SOLUTIONS COMPANY (ISC) is a manufacturer of cables, cable assemblies, harnesses, and control panels which are used in a wide range of applications in Commercial and Military Aircraft, Lifesaving Medical Devices, Weapon Systems, Inflight Entertainment and Power Systems. The company is a supplier of Boeing and Airbus for their commercial aircraft.

Terminal boards (aka terminal blocks or terminal board assembies) are connectors that terminate a single wire and connect it to a circuit or other system. In their simplest form, they consist of several individual terminals arranged in a long strip. Terminal blocks come in a range of shapes, sizes and ratings and they are used in a range of applications including aircraft, cars, vessels and others. Those made as per Military Standard MS27212 (superceded by SAE-AS27212) are stud type blocks offered by different manufacturers (such as R&B ELECTRONICS®, MARATHON® Special Products (formerly Kulka), or MARCO Manufacturing) and used on aircraft applications. Studs are made from different types of Corrosion-Resistant Stainless Steel (CRES) with our without passivation. Insulation material is Diallyisophthalate plastic meeting US Federal Standard GDI-30F & Mil-M-14. Max operating temperature can reach 155 Deg, C (311 Deg. F). Their stud thread size and number of studs are indicated in their part number.

MS27212 / AS27212 Product Eatures:

Molded-in-stud electric terminal boards

Excellent corrosion resistance

Excellent dielectric strength

Excellent moisture resistance

Resistance to thermal shock

Total Continuous Rating: (155 Deg. C / 311 Deg. F).

MS27212 -X-(N) Dash No. where X is Stud Thread Size & N is the Number of Studs / Board (Assy.

Stud Thread Sizes (in.) & Types (X): MS27212-1 (6-32 UNC-2A) | MS27212-2 (10-32 UNF-2A) | MS27212-3 (1/4-28 UNF-2A) | MS27212-4 (5/16-24 UNF-2A) | MS27212-5 (3/8-24 UNF-2A) | MS27212-6 (8/32 UNC-2A)

For additional information please refer to the supplied documetation.

Sourced from quality producers, the MIL-DTL-27500 shielded electical cables are offered as part of our own label (AVIATIONEU NEW ERA) product lines consisting cost-effective alternatives to the respective OEM products. Depending on the producer and specification, MS27500 cables come with stranded copper single or mltiple conductors (cores), nickel, silver or tin-plated and individually insulated, different number of strands, different chemically inert fluoropolymer insulation materials with good ozone and oxidation resistance as well as single or double shields. Their jackets are made of fluoropolymer, PTFE, glass, or polyamide tape.

The MIL-DTL-27500 shielded cables are used in a range of applications including avionics, military and civilian aerospace and airframe applications and ground support equipment and they are rated to a maximum voltage of 600 volts and maximum usable temperatures from 150 °C to 260 °C.

The AVIATIONEU NEW ERA MIL-DTL-27500 cables are offered in different configurations with single or multiple individually insulated conductors (cores) in various AWG sizes, insulation materials and shields to meet application requirements. Those commonly used include components listed below but other configurations can be available. For additional information on M27500 cables, please see our brief presenation in the Product Description section.

- Stranded tin-plated cooper single or multiple-conductor(s) (aka cores) comforming with MIL-W-22759/18 specification,

- Tefzel™(**) ETFE (ethylene-tetrafluoroethylene resin) insulation on each conductor

- tin- plated copper braided shield

- Tefzel™(**) ETFE jacket

The AVIATIONEU NEW ERA MIL-DTL-27500 cables are available in cut-to-order or pre-determined lengths in feet indicated in the product reference number (SKU) and packaged in rolls or spools. They are accompanied by our Certificate of Conformance (CoC). Due to their large variety of these cables, listed products shall continuously increase. If wanted cables cannot by found, please contact us.

(*) American Wire Gauge (AWG): Wire gauge is a measurement of wire diameter. This determines the amount of electric current a wire can safely carry, as well as its electrical resistance and weight.

(**) Tefzel™ and Teflon™ are registered trademarks of the DuPont Corporation.

Used on most major civil and military programs, RADIALL™ DSX Series ARINC 404/SAE-AS81659 Connectors offer a proven solution to electrically connect equipment rack to avionics equipment. The DSX series are multipin, rack and panel style connectors designed to electrically connect equipment racks to avionics equipment. Typically the plug is installed on the avionics rack and the receptacle on the equipment box. Applications include commercial and military aircraft and helicopters, railway, radar systems, power circuits, in-flight electronic instrumentation and flight simulators.

Different DSX Series versions are outlined below:

DSX SAE AS81659, available in four shell sizes (1, 2, 3 & 4) with environmental and non-environmental versions as well as EMI/RFI options to improve shielding effectiveness. DSX SAE AS81659 connectors cover both civil and military applications.

DSX ARINC 404 shell type A and B are the original connectors, mainly dedicated today to commercial applications.

DSX-F and DSX-K receptacles, RADIALL™ solution for front release front removable (FR/FR) contacts to facilitate installation and maintenance. Fully intermateable with ARINC 404 type B and SAE AS81659 plugs, they offer the same characteristics as SAE AS81659 connectors.

Shell types are plugs and receptacles made from an aluminum alloy with cadmium yellow chromate or nickel plating options. Mismating is prevented by a polarizing system which provides 216 polarizing positions. For military part numbers, applicable polarizing position range goes from 00 through 99 only. Inserts are offered in various contact arrangements accommodating rear release, rear removable signal (size 22) power (sizes 5, 12, 16 & 20HD), coaxial (sizes 1, 3, 5, 7, 9 & 15), concentric twinax (sizes 5 & 9) triax (sizes 5 & 9) contacts in crimp, wire wrap or PC tail termination. Radiall’s 29504 fiber optic termini are also available. With numerous configurations and a wide variety of contacts and accessories, the  RADIALL™ DSX Series offers for both OEMs and aircraft manufacturers robust and high performance solutions fully compliant to SAE AS81659 specifications listed on the qualified product list (QPL)as well as ARINC 404 commercial connectors.

For additional information please refer to the supplied documentation.

Note: Special Order items. Non-Cancellable/Non-Returnable Upon Order Placement (NCNR). Minimum Order Quantities & long lead times usually apply. Contact us.

TYCO ELECTRONICS TE CONNECTIVITY™ ARINC 600 Connectors feature a stamped and formed contact system versus the traditional, screw machined contact system. Available in either Solder Tail or Press-fit (eye of the needle) designs.

Being the first to offer size 22 contacts in a press-fit PCB attachment style, their ARINC 600 product portfolio now includes press-fit size 20, 16 and 12 power contacts, as well as press-fit Quadrax contacts providing a total press-fit PCB-attach connector solution.

TE CONNECTIVITY™ ARINC 600 Connectors feature a lighter design for considerable cost savings. The stamped system allows for selective gold plating to only critical socket contact tines instead of the whole contact, decreasing gold plating costs. By changing to hollow contacts instead of the solid contacts in the legacy design, this product design reduces weight by up to 10% (depending on insert arrangement) and includes backward compatibility. All these with the same high levels of performance and reliability.

Features & Benefits

Completely inter-mateable with existing ARINC 600 plug connectors

"Monoblock" single-piece inserts that simplify the manufacturing process, cut costs

Stamped and formed, selectively plated size 22 contacts provide substantial cost savings while delivering excellent performance and reliability

Equivalent electrical performance vs. current design

Available in either Solder Tail or Press-fit (eye of the needle) designs

Up to 10% weight savings per connector (depending on insert arrangement)

Applications

• In-Flight Entertainment

• In-Flight Networks

• Flight Controls and Communication

• Military Ground Vehicles

For additional information please refer to the supplied documentation.

Note: TYCO ELECTRONICS TE CONNECTIVITY™ ARINC 600 Connectors are Special Order items and therefore Non-Cancellable/Non-Returnable Upon Order Placement (NCNR). Minimum Order Quantities & long lead times usually apply. Please contact us.

"AR" Series connectors from AMPHENOL are multi-purpose connectors used in aerospace, military and computer periphery applications. Designed per ARINC 404 specifications AR connectors utilize pin and socket contacts manufactured in conformance with MIL-C-39029. They meet or exceed the requirements of MIL-C-81659 and ARINC Specification 404.

These connectors are available in five shell styles with up to four insert cavities. Inserts in AR product line accommodate signal and power contacts in sizes 12, 16, 20 and 22. Coaxial contacts are available in sizes 5 and 9. Insert arrangements are available utilizing a single type contact or a combination of standard and coaxial contacts.

Non-environmental and environmentally sealed connectors are offered. The environmental sealing is accomplished by wire sealing grommets and interfacial seals. Application specific designs, including transient protection, are available from Amphenol.

For additional information please refer to the supplied documentation.

Note: Special Order items. Non-Cancellable/Non-Returnable Upon Order Placement (NCNR). Minimum Order Quantities & long lead times usually apply. Contact us.

Different wiring accessories such as cable and harness supports are used to secure and guide wire bundles throughout an aircraft, train, UAV, mass transport vehicle or other platform. They are designed, manufactured and offered by AMPHENOL Corporation, a premier manufacturer of interconnects systems for Military, Aerospace and Industrial applications as part of product lines of AMPHENOL subsidiaries Air LB,  PCD or CONEC.

NSA935504 wiring supports (brackets) by AMPHENOL Air LB and combine strength, reliability, stability and light weight. They secure cable harnesses with the use of ties simplifing wire bundle installation & maintenance. They feature an operating temperature between -55°C and +135°C. AMPHENOL Air LB wiring supports are offered in a variety of materials, shapes,  and sizes to meet intended application requirements.

Cable Supports by AMPHENOL PCD are offered in nylon, ultem, and PEEK and are designed for use in airframe, fuel tank, and engine applications. Available in various standard configurations and sizes, AMPHENOL PCD  also offers customized products to help meet specific customer requirements.Their features & benefits include:

Lightweight & Easy to install

Multiple types: L-Frame/P-Frame, S-Frame, and Anchor Support

FAR25-853 compliance: Can meet high temperature requirements

Multiple colors available: Helps identify different sizes

Nylon 6/6 (PA), Ultem (PEI), or PEEK available

No loose parts (reduction of FOD): Lean manufacturing; reduces costs

Harness supports by AMPHENOL PCD are designed for lean manufacturing and durability and are used to secure and guide wire bundles throughout an aircraft. Built in a one-piece, lightweight design with multiple fixing points, these high performance products are strong, durable and make wire bundle installation and maintenance easy. They are able to support large bundles and high stress requirements.

Wiring accessories are sold  in pieces or pacls (bags) with a specified number of pieces indicated after the letters "PK" in the product reference number (SKU). Equivalent products are also offered y other manufacturers. For more information please refer to the supplied documentation.

AMP Flexi Block Modular Terminal is used for assembles of terminal blocks to custom requirements and it is avalable in Users and Professional complete kits.

Users Kit consists of 25 pieces Flexi-BLock terminal block, 12 end stops and two 12 in pieces of track,

Professional Kit - No. 6 kit consists of 100 ea. P/N 604101-1 block assemblies, 25 ea. of P/N 604111-1 end stops and 2 ea. track 3 ft. long.

CONSTRUCCIONES AERONÁUTICAS SA (CASA) is a Spanish aircraft designer and manufacturer. Today, CASA forms part of EADS (AIRBUS Group of Companies). CASA aircraft platforms include the CASA C-212 Aviocar turboprop-powered STOL medium cargo aircraft, the CASA CN-235 robust and affordable medium-range twin-engine transport aircraft, jointly developed with Indonesian manufacturer IPTN and operated as both a regional airliner and for military air transport and aerial surveillance, the CASA C-295 ("stretched" derivative of the CN-235) and the CASA C-101 trainer/ground attack aircraft. Parts & accessories for these aircraft are offered as OEM parts from their respective manufacturers.

Thermocouple and thermocouple extension wires are flexible, insulated wires the first used to link a thermocouple to a temperature control device or make the sensing point (or probe) of the thermocouple while the second to extend a thermocouple signal from a probe back to the measuring instrument reading the signal over long distances.

There are different types of thermocouples conctructed from 2 conductor solid core thermocouple grade specified gauge insulated wires with a positive and negative lead and an insulated outer jacket. Types N, K, E, J, T are base metal thermocouple wires  mostly used while Types S, R and B are precious metal thermocouple wires. Common Thermocouple Wire Types are outlined below while their more detailed presentation and characteristics are included in the Product Description section.

K-Type thermocouple (nickel-chromium (nickel-silicon - nickel-aluminum). Base metal thermocouple with strong oxidation resistance with a temperature measurement capability from 0 to 1300 °C.  Main disadvantages include among others a high-temperature stability of thermoelectric potential lower than of N-type and precious metal thermocouples and a poor short-term thermal cycle stability in the range of 250-500 °C.

T-Type thermocouple (copper-copper-nickel). It has the highest accuracy and good uniformity among the base metal thermocouples and an operating temperature between -200 and 350 ℃.

J-Type thermocouple (iron-constantan ). Suitable for reducing or inert atmosphere for vacuum oxidation, and the temperature range from -200 to 800 °C.

N-Type thermocouple (NiCrSi-NiSi). Features of the thermocouple are strong anti-oxidation ability in temperature regulation below 1300 °C, good long-term stability and short-term thermal cycle repeatability, good nuclear radiation resistance, and low-temperature resistance.

E-Type thermocouple (nickel-chromium-copper-nickel [constantan] thermocouple). Its thermoelectric potential is the highest among the commonly used thermocouples. Often selected for applications in conditions of high sensitivity, low thermal conductivity, and large resistance that can be tolerated. Less sensitive than Type K to corrosion in atmospheres containing higher humidity.

Thermocouple wires of diferent types and wire sizes (Gauges) are offered as part of own labelled (AVIATIONEU NEW ERA) product lines. Priced and sold by the foot and offered in specified or cut to order lengths (usually in 10 ft increments).

MIL-DTL-26482 Standard Series II connectors are widely used on applications in aerospace environments requiring a general-purpose, miniature cylindrical bayonet connector.They are environmentally sealed and offered different receptacle-mounting styles.

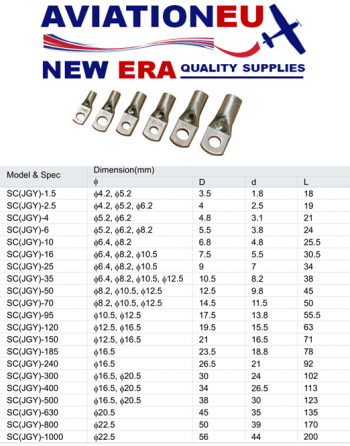

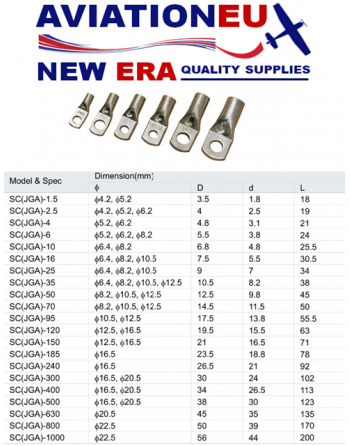

AVIATIONEU NEW ERA SC screw lug type battery terminals are available in three versions: SC(JGA), SC(JGY) and SC(JGB). Please refer to the specifications table. They are made from brass (99.7% copper), tin plated and can be used with wire sizes 1.5-1000mm2 in a wide range of applications. Operating Temperature: :-55 to 150 deg. C. Sold in packs of 100 pieces each with Minimum Order Quantity (MOQ) 25 packs. The appearing price is for reference only. Please contact us for quotation.

SKY-TEC, a HARTZELL ENGINE TECHNOLOGIES brand, includes starters and support for Prestolite, Electrosystems, Lamar and Kelly designs. SKY-TEC OEM contactors are today installed in many general aviation aircraft while SKY-TEC FAA-PMA contractors can be used for starter, battery master/auxiliary or auxiliary power applications in replacement of OEM parts.

SKY-TEC STS-S Series FAA-PMA certified aircraft starter solenoids (aka relays) are intermittent duty suitable for starter applications. They are available in 12V (STS-S12) or 24V (STS-S24) versions. Activation: +V to S-Terminal (Frame is grounded by mounting).

SKY-TEC STS-M Series FAA-PMA approved Battery/Master solenoids are continuous duty solenoids intended for use in battery master/auxiliary applications in certified aircraft. They are available in 12V (STS-M12) or 24V (STS-M24) versions. Activation: -(Ground) to S-Terminal. (Floating ground frame).

SKY-TEC STS-A Series FAA-PMA approved solenoids are continuous duty and typically used for connecting auxiliary (ground) power. They are available in 12V (STS-A12) or 24V (STS-A24) versions. Activation: varies.

Product Features:

FAA-PMA Certified

All-metal case construction

Silver contacts (vs. copper) for high-current capability and long-life. They provide 300A in-rush capability. Much higher than the original units.

Strong spring and high-current coil for quick contact opening - minimizing arcing

Single coil terminal (other end connected to case)

High quality manufacturing

Upgraded to perform best with today's lightweight, high torque starters

Same OE terminal layout simple to install

For additional information on different SKY-TEC series of slenoids and their applications in different aircraft please refer to the respective product presentations.

TE CONNECTIVITY™ AMP family of products includes industry-leading connectors, components, cables, and tooling used to transmit data, power, and signal in the machines, devices, and systems helping to make the world safer, sustainable, productive and connected.

TE CONNECTIVITY™ AMP connectors are offered in a wide range of shell configurations/modifications, contact arrangements and contacts to meet ARINC 404 Specification and MIL-C-81659. They are avialable in Commercial,  Military and Miniature Series with the following designations.

Commercial Series

R — Unsealed

RM — Interface seal on pin insert

RME — Environmentally sealed

Unkeyed Single-Insert Series

RMA — Standard size, unkeyed single-insert connectors, unsealed

RMAE — same as RMA, except sealed

Military Series

M — MIL qualified, unsealed

MM — MIL qualified, interface seal on pin inserts

MME — MIL qualified, environmentally sealed

Miniature Series

RA — Unsealed

RE — Sealed

Special connectors are also available—including connectors for flexible flat cable, for wire wrap-type terminations, and with contacts for board-mount applications.

For additional information please refer to the supplied documentation.

Note: Special Order items. Non-Cancellable/Non-Returnable Upon Order Placement (NCNR). Minimum Order Quantities & long lead times usually apply. Contact us.

TYCO ELECTRONICS TE CONNECTIVITY™ SOLISTRAND Series Terminals & Splices are specially designed to terminate solid and stranded wire, irregular-shaped conductors, and wire-conductor combinations while still retaining the superior performance characteristics of single-purpose terminals and splices. The series resists corrosion and vibration, and the tensile strength is well within the limits of commercial and military specifications. TE Connectivity offers SOLISTRAND crimping tools to ensure terminations are consistent and uniform for easier quality control and reliable performance. The TE SOLISTRAND line includes terminals, parallel and butt splices, flat rings, spades, hooks, and flanged tongue terminals in sizes from 26AWG (0.1mm2) through 600 MCM (304mm2).

Features & Benefits

SOLISTRAND terminals and splices are constructed of fine grade high conductivity copper for optimal electrical performance

The brazed seam increases metal strength around the entire barrel area assuring withstanding harsh industrial environments. It also prevents pinched and stubbed wires

The “W” crimp – two longitudinal crimps – and the dimples or serrations inside the wire barrel  offer maximum electrical contact area after crimping and higher tensile strength. This permits the use of a shorter barrel, which end up in a smaller form factor and makes it more cost effective

Bell mouth on barrel entrance makes insertion of wires easier and reduces installation time and increasing production yield

Most SOLISTRAND terminals and splices meet or exceed the requirements of SAE AS7928, Type I, Class 1 and 2. Aircraft-, defense- and marine (related) equipment base their performance requirements on AS7928

Rated for up to 170°C maximum and therefore suitable in all standard applications.

Applications

Pad- and pole-mount transformers

Power supplies

Motors

Switchgear

Telecommunications

Appliances

Panel boxes

Heavy equipment

Instruments/control

Transportation

For additional information please refer to the supplied documentation.

Copper wires are conductors of electricity and they are used for a wide range of applications including power generation, power transmission, power distribution, telecommunications, electronics circuitry and others. Apart from the high conductivity copper features durability, tensile strength and corrosion resistance.

AVIATIONEU NEW ERA copper round wire product range includes bare copper, copper, paper insulated copper wires as well as double cotton covered and silver or tinned plated copper wires.

They are offered in rolls in different wire gauges (*). Sold in kilograms except the double cotton covered wire which is sold by the meter. Appearing prices is for reference only per UOM. Please contact us for a quotation.

Bare Copper Wire, Gauge 0-5

Paper Insulated Stranded Wire, Gauge 0-5

Tinned Plated Copper Wire (Temperature 120 deg. C), Gauge 0.2-2

Silver Plated Copper Wire (Voltage up to 1000 V, Flame Retardant), Gauge 0-5

Double Cotton Covered Copper Wire, Gauge 0-5

(*) Wire gauge is a measurement of wire diameter. This determines the amount of electric current a wire can safely carry, as well as its electrical resistance and weight. Please refer to the respective table.

TYCO ELECTRONICS TE CONNECTIVITY™ STRATO-THERM Terminals and Splices are specially designed for High Temperature applications up to 1200°F [649°C]. If heat is an unavoidable dimension in the circuit design and production STRATO-THERM terminals and splices consist the right choice also addressing other more familiar circuit problems such as vibration, corrosion and flash-over, when they occur at high temperatures.

Different types of high temperature terminals and splices in  STRATO-THERM series include:

PIDG Terminals and Splices, and Pre-Insulated Spare Wire Caps — 550°F [288°C] range

PIDG Insulation Restriction Terminals — 550°F [288°C] range

Post-Insulated Terminals and Splices — 550°F [288°C] range

Uninsulated Terminals and Splices — 650°F [343°C] range

Uninsulated Terminals and Splices — 1200°F [649°C] range

All five types of STRATO-THERM terminals and splices provide optimum corrosion and vibration resistance plus outstanding tensile characteristics.

All types, except the STRATO-THERM PIDG terminals, splices and preinsulated spare wire caps, employ the famous “W” crimp which creates the precise electromechanical properties necessary for solid and/or stranded conductor combinations.

Main features and benefits include:

- Available in temperature ranges of 500°F [260°C], 550°F [288°C], 650°F [343°C] and 1200°F [649°C]

- Employ the “W” and “C” crimp

- Wide range of wire sizes

- Complete line of related application tooling

- Accommodate solid and/or stranded conductors

For additional information please refer to the supplied documentation.

Oval shaped copper sleeves used in making eye or lap splices in flexible cable. Sleeves are slipped over the two strands of cable to be fastened and are then compressed with special Nicropress hand squeezers. Provides a bond that is even stronger than a standard splice. They are offered in pure copper or zinc/tin coated for different cable sizes in inches. Plain copper ("18" series) and zinc coated sleeves ("28" series) are used with galvanized cable, and tin coated sleeves are to be used with stainless steel cable.

MIL-spec were initially developed to standardize wires and cables used in military equipment. For many years, wires used in aircraft met MIL-W-5086  mil-spec and SAE-AS50861 standards superseeding them. They were manufactured with the use of tin-coated copper conductors rated at 600 volts and temperatures of 105°C and various insulating coatings including polyvinyl chloride (PVC). The PVC insulation provided resistance to abrasion, among many other things. Still in production, MIL-W-5086  cables in their various types of conductors and jacket constructions are used, apart from the aircraft in other applications that require resistance to abrasion, cut-through, impact, chemicals, and fuels. They are gradually replaced by those made in accordance with Mil-W-22759 standard due to toxic fumes generated by PVC insulation in the event of a fire. The Mil-W-22759 standard transitioned to SAE AS22759 in 2004. These two standards are essentially identical and cover a of wide range of single conductor wires (please refer to the Product Description section and supplied documentation for assistance).

Sourced from quality producers, AS22759/M22759 wires are offered as part of our own labelled (AVIATIONEU NEW ERA) product lines in different configurations, various AWG(*) sizes, in white or other color variations (depending on their selected product reference number). They are suitable for use in a range of applications in military and civilian aircraft, in harsh aircraft engine environments, for control surfaces as well as applications in areas subject to severe weather and moisture-prone (SWAMP).

Those commonly used are SAE AS22759/16  unshielded wires (replacing wires produced as per M22759/16 /17/18 and /19  specifications) but other configurations can be available. This specification uses stranded tin plated copper or silver plated high strength alloy conductors and extruded ethylene/tetrafluorbethylene (ETFE) insulation. Respective wire ratings are 150° C and 600 Volts.

The AVIATIONEU NEW ERA AS22759/M22759 wires are sold in pre-determined lengths in feet indicated in the product reference number (SKU). They are commonly packed in carousels, reels or spools. Cut-to-order lengths in 10 ft increments are also offered. Accompanied by our Certificate of Conformance (CoC) free of charge or Manufacturer Certificate of Conformance (CoC) if required at additional charge. Some of the offered wires are additionaly QPL listed(**) as specified in their product title.

(*) American Wire Gauge (AWG): Wire gauge is a measurement of wire diameter. This determines the amount of electric current a wire can safely carry, as well as its electrical resistance and weight.

(**) Included in U.S. DoD Qualified Products List (QPL) of products, components, or materials, often used in aerospace or military applications, examined, pre-tested & found to conform with all applicable standards or qualification requirements set by a certifying organization or government entity.
