AEROSHELL® 100/W100/W100 PLUS Mineral Aviation Piston Engine Oils SKU: AERSHL-PEO-100

AEROSHELL® 100 Series SAE 50 Grade Aviation Piston Engine Oils are  straight mineral oils blended from selected high viscosity index base oil. They are offered as AEROSHELL® 100 mineral break in oil with no additives, AEROSHELL® W100 mineral ashless dispersant oil for normal use and  AEROSHELL® W100 PLUS mineral ashless dispersant oil with a friction modifier/anti-wear additive package.

The specially blended high viscosity index base oil in AEROSHELL® 100 oils has been designed to provide effective protection to engine components compared to conventional mineral oils. Intended for use when an oil without a dispersant additive is required during the break-in of  new aviation piston engines or those recently overhauled.They meet the SAE specification J-1966 Grade 50.

AEROSHELL® W oils were the first non-ash dispersant oils to be used in aircraft piston engines. They combine nonmetallic additives with selected high viscosity index base stocks to give exceptional stability, dispersancy and anti-foaming performance. These additives leave no metallic ash residues that can lead to deposit formation in combustion chambers and on spark plugs, which can cause pre-ignition and possible engine failure.AEROSHELL® W100 oil includes very small amounts of pour point depressant to improve fluidity at very low temperatures and an anti-oxidant. This helps ensure complete confidence and peace of mind knowing that your aircraft will perform reliably in between scheduled overhauls. Approved to SAE specification J-1899 Grade 50.

AEROSHELL® W100 Plus single grade oils combine the single grade, ashless dispersant performance found in AEROSHELL® Oil W100 and the anti-wear/anti-corrosion additives of AEROSHELL® Oil W15W-50 Multigrade. They are approved for all aviation civil aircraft piston engines. Approved to SAE specification J-1899 Grade 50.

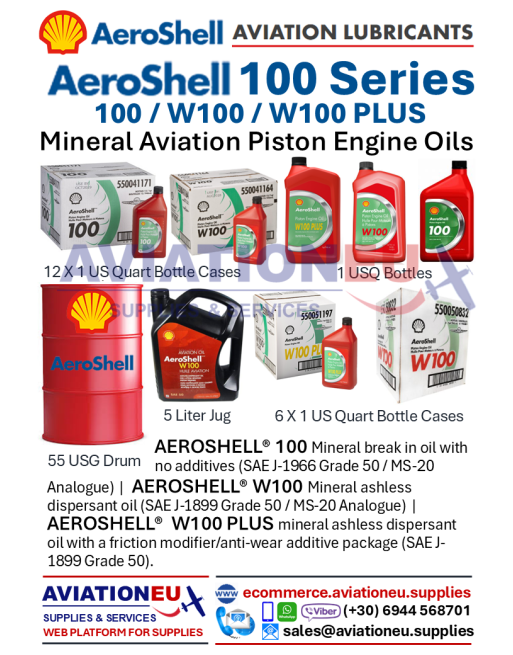

AEROSHELL® 100 Series oils have military qualification approvals. Common packing options include 1 US Quart bottles, cases of 6  or 12 1 US Quart bottles, jugs of 5 liters, pails of 5 US Gallons, and drums of 55 US Gallons. Please also refer to the attached documentation.

 NOTE: Other AEROSHELL® piston engine and turbine oils, greases and fluids are also offered through our Web Platform for Supplies or can be furnished through our network of co-operating suppliers. Due to our continuously expanding list of suppliers and their respective range of offered products, certain AEROSHELL® products may not be currently listed in our Platform. Please refer to our AEROSHELL® Aviation Lubricants Product Overview presentation or contact us for additional information or assistance on non listed products.

Mfr. P/N & Title
Packaging
AERSHL-W100-550041164-1USQT

Data sheet

Certification/Approval
Certificate of Conformance
Taric
2710192900 Petroleum oils and oils obtained from bituminous minerals (other than crude) and preparations, other than those containing biodiesel and other than waste oils
Unit of Measurement (UOM) / Sale
Each (ea.)

Specific References

taric
2710192900
New

Download

AeroShell Oil Specifications

AeroShell Oil Specification Guide

Download (212.3KB)

AeroShell 100 PEO TDS

AeroShell 100 Mineral Piston Engine Oil (PEO) Technical Data Sheet

Download (87.57KB)

AerosShell 100 PEO MSDS

AerosShell 100 Mineral Piston Engine Oil (PEO) Safety Data Sheet

Download (139.5KB)

AeroShell W 100 PEO TDS

AeroShell W 100 Piston Engine Oil (PEO) Technical Data Sheet

Download (90.35KB)

AeroShell W 100 PEO MSDS

AeroShell W 100 Piston Engine Oil (PEO) SDS

Download (349.25KB)

AeroShell W 100 Plus PEO TDS

AeroShell W 100 Plus Piston Engine Oil (PEO) Technical Data Sheet

Download (49.7KB)
