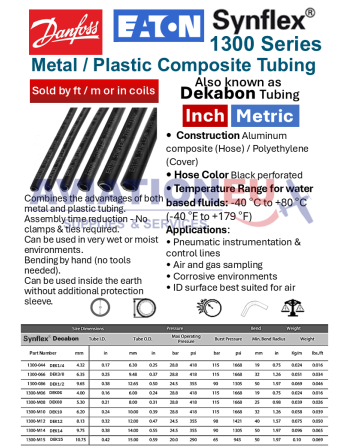

DANFOSS EATON SYNFLEX® 1300 Series composite wall tubes are designed for pneumatic instrument control systems. Their fully bonded polyethylene/aluminium construction combines the advantages of both metal and plastic tubing.

Their outer, high density polyethylene layer is impervious to most chemical environments and enables SYNFLEX® 1300 tubes to outperform practically all types of unprotected metal tubing.

Product Features:

• Combine the advantages of both metal and plastic tubing

• Very light (5 times lighter than a standard instrument control tubes)

• Provide neat looking bends without special bending tools

• Corrosion and chemical environment resistant

• Excellent chemical compatibility

• Tubing contents dry thanks to aluminum barrier

• Enable direct burial w ithout additional protection (whatever the installation)

• Connection with standard compression fittings

• 25, 75,100m standard lengths

• Standard color: black, other colours on request

• Also available with "Halogen free" jacket

Applications

• Pneumatic instrumentation and control lines located in very wet or moist environments

• Air and gas sampling

• Corrosive environments

• ID surface best suited for air

Construction

• Polyethylene/Aluminum composite

Temperature range

• -40 °C to 80 °C

DANFOSS EATON SYNFLEX® subsea hoses and bundles are built to meet and exceed the most demanding industry requirements. Their rigorous hose qualification ensures long hose service life while their robust construction enables them to withstand high pressures. They are offered in long, continuous lengths to cover requirements of diverse applications all over the world.

At its core, SYNFLEX® High Pressure hose is a smooth, seamless, continuous extrusion of Nylon 11 Besno P40 TLO. The hose is reinforced with premium aramid fiber and jacketed with a highly UV resistant thermoplastic for long term aging and resistance to hydrolysis. Long continuous lengths are available for subsea bundles and single line applications. Available in 3,000, 5,000, 10,000, and 15,000 psi working pressures these hoses are lightweight, easy to install and assemble, and available in multiple sizes and long continuous lengths. Used in a wide range of applications including Hydraulic flying leads, workover umbilical components, hot lines, chemical, water and nitrogen injections and  subsea blow out prevention (BOP) bundles and hot lines enabling faster and more effective response to subsea events.

Like in other SYNFLEX® hoses, approved Eaton components are offered to ensure complete hose assembly systems.

Hoses are priced and sold by the foot unless otherwise specified. Fittings can be separately purchased in pieces.

For additional information on different products please consult the Product Description section, supplied documentation or contact us.

Thermoplastic hydraulic hoses are used in certain hydraulic control applications where low volumetric expansion properties are desired for more precise actions or control. Such applications include those for precision gauging, pilot lines, steering lines, grease systems, as well as other applications which cannot be subject to conductivity (use around power lines) or where moisture cannot be present, such as for spray foam. As with "rubber" hydraulic hose, not all brands of thermoplastic hydraulic hoses are built the same even though they may meet the same SAE specifications. Higher end brand hoses will typically be made to higher tolerances, better compounds, better resistance to various factors, added durability, enhanced engineering methods, and additional assurance of a proven system. With leading, innovative manufacturers such as Aeroquip, the market has seen improvements in hose design - such as more flexibility, lighter weight, higher temperature compounds, tougher covers, less manufacturing defects, and overall more durable products.

ΕΑΤΟΝ SYNFLEX® thermoplastic hose and tubing has been replacing rubber hose or metal tubing designs offering customers a number of benefits, including flexibility, durability, abrasion resistance, lighter weight materials, superior chemical resistance, variety of colors, high pressure capability and extended product performance.

Each component of the SYNFLEX® hose assembly system is compatible with other approved Eaton components to which it relates ensuring a complete hose assembly system. Component compatibility, along with the use of quality components, insures the production of reliable hose assemblies when properly assembled. Intermixing of fittings and hose not specifically engineered and designed for use with each other and Eaton equipment is not recommended and may result in the production of unsafe or unreliable hose assemblies. This can result in hose assembly leakage, hose separation or other failures which can cause serious bodily injury or property damage from spraying fluids, flying projectiles, or other substances. The ΕΑΤΟΝ warranty is limited to apply only when approved ΕΑΤΟΝ hose fittings and compatible ΕΑΤΟΝ SYNFLEX® hose are used with Eaton assembly equipment.

Hoses are priced and sold by the foot unless otherwise specified. Fittings can be separately purchased in pieces.

For additional information on different products please consult the supplied documentation or contact us.

EATON HANSEN HA 15000  Series couplings, now part of DANFOSS product portfolio,  are general purpose hydraulic and fluid transfer couplings conforming to the dimensional requirements of ISO 7241-1 Series A. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1".

Standard Materials used in their manufacturing include:

• Zinc-plated steel construction

• Stainless steel springs, balls and retaining rings

• Buna-N (Nitrile) seals

Product Features:

• Ball lock

• Manual connect, disconnect

• Poppet valving

• Slim profile

• Zinc plated steel construction

• NPTF and BSPP end connections

• Available push-to-connect socket designed for bulkhead mounting (1/2" body size only)

Rated Pressure in PSI / BAR per Body Size

1/4" - 4,568 / 315

 3/8" - 4,568 / 315

 1/2" - 3,625 / 250

 3/4" - 3,625 / 250

 1" - 2,900 / 200

For additional information please refer to the supplied documentation or contact us.

Note: Special Order items. Non-Cancellable/Non-Returnable Upon Order Placement (NCNR).

EATON HANSEN FF (Flat Face) Series quick disconnect couplings, now part of DANFOSS product portfolio, are specifically designed for those applications where quick and easy connections and no-spill performance are essential. The FF Series is ideal for use when global interchangeability with other manufacturers is important and is available in sizes from 1/4” through 2” to best meet your specific size requirements.

Product Features:

• Meets or exceeds the ISO 16028 standard

• Push-to-connect

• Standard sleeve lock prevents accidental disconnection

• Color identification rings available to help prevent crossing of lines

• Standard Material: High-resistant carbon steel with Guardian Seal™ plating, a whole new level of corrosion resistance with minimum 720 hours RR protection

• Guardian Seal™ plating

• Nickel-free

• Solvent-free

• Meets Global RoHS, ELV and REACH requirements

• Standard Seal Material: NBR+AU

• Available seal options: NBR+AU, FKM, EPDM, HNBR (upon request)

Applications:

• Hydraulic and Fluid Transfer

• Construction equipment

• Agricultural equipment

• Utility vehicles

• On-Highway vehicles

• Stationary in-plant hydraulics and fluid transfer

• Interchangeable with HTMA couplings in the 3/8” size

For additional information please refer to the supplied documentation or contact us.

Note: Special Order items. Non-Cancellable/Non-Returnable Upon Order Placement (NCNR).

EATON products are known for their quality and innovation in aerospace and other industrial applications with a wide range of hoses, fittings, couplings and connectors available to cover application requirements. Following the acquisition of Eaton’s hydraulics business by DANFOSS, EATON hydraulic products form now part of DANFOSS product portfolio.

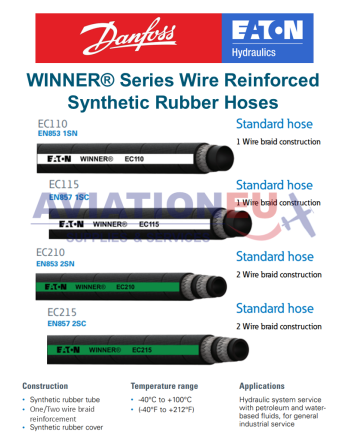

DANFOSS EATON WINNER® Series wire reinforced synthetic rubber hoses are constructed by a synthetic rubber tube with one or two wire braid reinforcement and a synthetic rubber cover. These hoses feature an operating temperature range of -40°C to +100°C / -40°F to +212°F. They can be used for a wide range of applications in hydraulic systems with petroleum and waterbased fluids as well as for general industrial uses. Available in different tubing sizes and internal diameters in inches. Priced and sold in meters unless otherwise stated.

EATON WINNER® Series include the following hoses:

The EATON WINNER® EC110 hoses which have one wire braid reinforcement and meet EN 853 1SN specification.

The EATON WINNER® EC115 hoses with one wire braid reinforcement and compliance with EN 857 1SC specification.

The EATON WINNER® EC210 hoses wiyh two wire braid reinforcement meeting EN 853 2SN specification.

The EATON WINNER® EC215 hoses with two wire braid reinforcement meeting  EN 857 2SC specification.

For additional information please refer to the supplied documentation ot contact us.
