The RAY ALLEN (RAC) RP4 LED position indicator is designed to be installed in the cockpit providing an indication of the servo output shaft position. This indicator supercedes and it is a direct replacement for previous RAC RP3. The RP4 indicator uses ten LED lights to show the position of a actuator output shaft (or position sensor arm). There are also two amber colored LED's, one on each end of the indicator scale, to act as a reference for the green indicator light, especially in dark conditions. The 10 LEDs are the brightest available for superior visibility in sunlight, but can be dimmed for night flight. It can be installed horizontally or vertically.

The RAC RP4 position indicator is panel mounted using a faceplate and two countersunk, 2-56 x 7/16" screws (two spare finishing screws are included). The distance between the screw holes is identical to the older Ray Allen RP3 LED indicator. Although the faceplate dimensions are identical between the RP3 and RP4 indicators, the panel cutout size is slightly different between the RP3 and RP4. If you are replacing and older unit with a new RP4, you will only need to increase the size of your panel hole. The RP4 faceplate will cover the older RP3 panel hole.The RP4 faceplate measures 1.75"(45 mm) X .75"(19 mm) and it is 1.6"(41 mm) in depth. It is now the standard position indicator included in Ray Allen trim systems, or can be purchased separately for special applications such as a cowl or wing flap indicator.

The RP4 includes a RP4-L1 label (featuring Elev1, Elev2, Ail, Rudder, Flaps). A RP4-L2 label (featuring Cowl Flaps, < >, on/off) is also available and is sold separately.

NOTE: Labels can only be ordered together with . In ordering these high quality labels please be advised that rocker switches and needle indicators require a large label, LED indicators use a small label. Can be only included in orders of respective RP4 position indicator(s) (not separately).

UMA airspeed indicators are fully FAA TSO'd to C2d specifications for installation on certified aircraft. Installable in a fixed wing aircraft with a reciprocating or turboprop engine. Must be installed in a temperature controlled environment form -55 to 85°C, to a max altitude of 25,000 ft. These airspeed indicators are available in different versions, 2-1/4",Single Speed MPH and 3-1/8" single or dual scale (MPH/Knots) versions with an outside/Inside scale: 40-200 MPH/40-170 Knots, housed in a Valox 420 Plastic case and weighting 8.6 oz. They are offered with or without certification. ASI markings are sold separately for each unit at additional cost. Please select the markings option if markings are required.

4-Pin connector by AMPHENOL for use in all electrical gyros (DG or Horizon) including Falcon models.

The FAA TSO'd RCA26AK (14V) and 26BK (28V) series of electric attitude indicators (artificial horizons) by KELLY MFG (RC ALLEN) are known for their dependability and ruggedness. They incorporate tremendous advances in presentation, precision, and reliability.With a proven track record for dependability and ruggedness, the attractive new extended color schemes and ultra-precise spherical presentation (eliminating old parallax problems) they set a new standard for safety.These gyros provide a more accurate IFR reference for the beginning instrument pilot or a Cat II captain. A new three phase motor/inverter is designed into the gyro enabling it to operate at lower temperatures which extends to useful life. The instruments employ a new, high precision air erection system which provide erection torque for maintaining a proper vertical alignment reference. The erection air is supplied by a turbine pump which is integrally coupled with the gyro motor. Through maximum utilization of unitized construction the design is free of resonant frequencies below 100 HZ and thus cannot respond to low frequency disturbances which can cause dither and premature wear out of the unit. The display portion of the instruments has a directly coupled roll movement, and a pitch movement mechanism identical to that of the field proven vacuum gyros produced by R.C.Allen since 1966. A "pull to cage" spring type force limited mechanism assures immediate alignment and stability whenever power has been applied to the gyro, a feature non-existent on vacuum driven gyros. These artificial horizons have a hybrid inverter which converts the aircraft DC power to the required voltage and frequency for motor operation. All units have a pull cage knob and a power failure flag that drops into view whenever the supply voltage is lost or when the voltage has dropped below a level of acceptable for proper operation of the gyro. Slip indicator can be added to satisfy FAA AC91-75 upon request. Available in 14V or 28V voltage versions with fixed or movable pointer, lighted or unlighted, power failure flag, panel tilt and optional inclinometer. Mating connector MS3116E8-4S and panel screws are now included with each new instrument at no extra charge.

Dimensions: 3.38"W x 3.38"H x 8.14"L

Weight: 2.3 lbs.

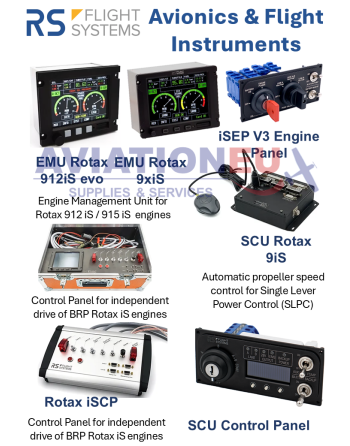

RS FLIGHT SYSTEMS develops and manufactures avionics for general aviation and flight test equipment. RS FLIGHT SYSTEMS range of avionics includes Engine Management Units for Rotax 912 iS / 915 iS engines, engine panels, automatic propeller speed control unit (SCU), and SCU front panel, iS Data Recorder for Rotax iS engines (912iS / 915iS / 916iS), control panels, portable test bench for independent drive of BRP Rotax iS engines, real-time wind indication system, Fly by wire control sticks, CANaerospace based flight test instrumentation  and more.

The RS FLIGHT SYSTEMS 2nd generation ROTAX® 912iS/915iS Engine Management Units (EMU) include 2 cockpit mounted engine monitoring, data logging & propeller control devices, EMU 912iS evo & EMU 9xiS. Both feature the same hardware, software and functionality but differ in dimensions and weight. They integrate seamlessly into the Rotax 912iS/915iS engine wiring harness, providing indications of all available engine parameters, engine status, ECU faults and additional sensor inputs. Suitable for 14 V and 28 V aircraft electrical systems with minimum installation effort. Configurable for use with different unit systems. Additional features: sunlight-readable backlit display, dual optically isolated CANaerospace data bus interfaces for retained redundancy, continuous monitoring and health checking of both ECU display buses, georeferenced data recording of all parameters at 10 Hz over up to 2,000 hours, simple data transfer & software update via an integrated memory card slot, sophisticated visualization & processing tool for recorded data, Google Earth file export of recorded data inc. GNSS and engine data. Wiring Harness Kit (incl. power supply wires) is also available (sold separately). A separate module (sold separately) provides connection to 912/914 carburetor Rotax engines.

For more information on RS FLIGHT SYSTEMS products please consult the Product Description section and the supplied documentation.

HONEYWELL BENDIX KING® KI-229 Radio Magnetic Indicator (RMI) provides bearing information to either ADF or VOR stations by means of two pointers each of which is read against compass card.

The KI-229 RMI combines three data points on one indicator. The current aircraft heading from an HSI is shown on the card. The magnetic headings to VOR and NDB stations are shown by the twin needles. By combining all this information visually, less interpretation is required thus enhancing overall situational awareness, something especially helpful when the workload is high.

The KI-229 requires inputs from ADF, HSI and NAV receivers.

Product Features:

14/28 volt lighting

Compatible with Nav Receivers such as KN-53, KNR-615, KNR-630/631/632/633, KNR-634, KNR-665, and KNR-665A

Compatible with Nav systems including RNAV such as KNS-80 and KNS-81

Compatible with ADF receivers such as KR-87 and KDF-806

Compatible with Compass systems such as KCS-305 and KCS-55/55A

Requires input ARINC Compass System

TSO'd

Product Specifications:

TSO Compliance: Env. Cat. RTCA DO-160A A1C1/A/SKP/XXXXXXA/B/AAA

Weight: 2.8 lbs. (1.3 kg)

Temperature: -20 to +55°C

Altitude: 35,000 feet

TSO (Compass): TSO C6c

TSO (ADF): TSO C41c Class A

TSO (VOR): TSO C40a

Heading Input: Operates from any slaved magnetic compass with ARINC X,Y,Z outputs

VOR Video Input: 0.5VRMS 0 deg. phase composite 30Hz variable AM and 30Hz reference FM on a 9960Hz carrier (0.7VRMS maximum)

The vertical speed indicator is a precision instrument which provides an accurate indication of rate of change of altitude. UNITED INSTRUMENTS TSO'd (TSO-C8b) 7000 Series vertical speed indicators (VSI) offer several configurations and have been selected as standard equipment by aircraft manufacturers worldwide for use in most production aircraft.. They are temperature compensated and provided with a zero adjustment screw on the face of the case in the seven oclock position. Power: Static system. Size: 3-1/8" x 3-1/8" x 4", Wt. 0.7 lb. Available in unlighted and lighted versions.

The AVIASPORT indicators (gauges) are reliable, accurate and solid, combining the accumulated experience of more than twenty years with the latest technology  They have been designed for ROTAX engines and their display areas are divided into red, green and yellow zones in line with Rotax limits. They use a pointer that turns 240º or 320º, providing high resolution. AVIASPORT range of gauges includes CHT, EGT, tachometers, oil and fuel pressure, oil and coolant temperature, fuel level, voltmeters & ammeters and offered with casings of different sizes: 80mm; 57mm and 52mm.

AVIASPORT Oil Pressure indicators (gauges) are designed specifically for ROTAX 912/914 aircraft engines with painted red, green, and yellow gauge markings. are available in two sizes: 52 and 57 mm. They are offered in two unit versions for readings in PSI or Bars. They work with different pressure sensors depending on these installed in ROTAX 912/914 engines: the VDO sensor (Before September 2008) or the 4..20mA sensor (after 2008).

UMA Non FAA Approved standard 2-1/4" and 3-1/8" altimeters are high quality, simple type (single pointer) with 2 revolution dial, designed to meet the needs of the low cost non-IFR users. Both altimeters utilize a knob adjustable barometric in. Hg scale, viewed through a Kollsman Window.

Product Specifications:

Case: Aluminum Casting

Weight: 10.6 oz.

Case: Valox 420 Plastic

Weight: 5.0 oz.

Not FAA Approved

UMA line of precision electronic pressure senders feature precision, solid state sensors and circuitry to give unequalled performance and are designed for rugged use in just about any environment.  They are offered in TSO'd and Non TSO'd models and gauge, differential and absolute types. UMA TSO'd electronic pressure senders are the most economical TSO’d units on the market. They are compatible with avgas, jet fuel, engine oil and many other fluids. Because they have internal voltage regulation, they are compatible with indicating instruments that do not have precision output voltages. Units for fuel and oil pressure are certified under TSO C47. Units for manifold pressure are under TSO C45a. For additional information please refer to the attached documentation.

This 2-1/4 inch flap indicator uses a resistance potentiometer as a flap position sensor. Transmitter is required. Wt: 9.8 oz.

The  MID CONTINENT® INSTRUMENT (MCI) MD–90 Series Precision Quartz Clocks provide  an ideal solution for accurate time-keeping, and consist original equipment for many major aircraft manufacturers. Designed for accurancy, the 2-inch MD–90 Series clocks are manufactured to meet rugged aircraft environmental standards, they are FAA/PMA certified and offered in standard MD–90–1 and MD–90L versions, both operating with 8–32 VDC power input. Their key features include:

Precision quartz movement

Compact 2-inch size — fit standard panel cutout

Lighted version available with field-replaceable light tray

Transient and reverse polarity protection

Extremely low current consumption (3 mA)

Continuously powered by aircraft battery

FAA PMA certified

Designed and built in the USA

One-year limited warranty

Product Specifications:

Power Input: 8–32 VDC - 3 mA max (without lighting)

Accuracy:  ±30 seconds in 24 hrs

Dimensions: 2.5 x 2.5 x 3.2 inches max

Weight: 0.5 lbs

Temperature: –40°C to +82°C (–40°F to +180°F)

Altitude: –1,000 to +55,000 feet

Humidity: 0 to 95% at 25°C

Vibration: .02 in. dbl. ampl., 1.5g @ 5 to 50 Hz

Mounting: Front or rear panel mounted

Connector: #6-32 threaded terminals

For additional information please consult the supplied documentation.

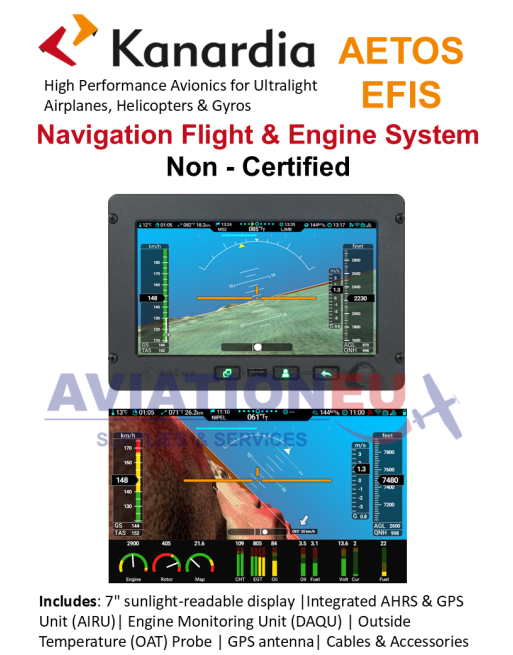

KANARDIA diverse family of non-certified gauges for use in ultralight aeroplanes, autogyros and helicopters includes different RPM, CHT, EGT and oil/temperature engine gauges.

KANARDIA INDU Series round RPM gauges are offered as standalone (master) or as slave gauges. The slave version requires an engine monitoring unit (DAQU) to be present on the bus. KANARDIA INDU Series round RPM gauges are available for two standard panel hole diameters of 57 mm (2.25") and 80 mm (3.15"). They can be supplied in the following scales:

-RTX Rotax scale (7000) and markings (yellow, green, red)

-JAB Jabiru scale (3500). Markings must be specified at the time of ordering

-LYC Lycoming scale (3000). Markings must be specified at the time of ordering

-D D-motor scale (3100). Markings must be specified at the time of ordering

-CUS Custom made scale

KANARDIA INDU Series round standalone CHT and EGT indicators are offered for two standard panel hole diameters of 57 mm (2.25") and 80 mm (3.15"). Respecive sizes of these gauges are 62 x 62 x 45 mm and 82 x 82 x 45 mm. The 57 mm gauges weights 150 g and requires a 102 mA power.

KANARDIA INDU Series round standalone Fuel Pressure, Oil Temperature and Oil Pressure indicators are available for 57 mm (2.25") and 80 mm (3.15") standard panel hole diameters with same sizes and weight power characteristics as those of CHT/EGT gauges.

The HONEYWELL BENDIX KING® KMT 112 is a Magnetic Azimuth Transmitter (aka Flux Detector or  Valve) which senses the direction of the earth’s magnetic field and continuously transmits this information through the slaving circuitry to a directional gyro (such as the HONEYWELL BENDIX KING® KG 102A or KSG 105 slaved directional gyros). This sensor is mounted remotely, usually in a wingtip, to eliminate the possibility of magnetic interference. The KMT 112 is typically used in HONEYWELL BENDIX KING® KCS 55A and KCS 305 compass systems. The KMT-112 flux valve is a sealed unit and cannot be serviced or have parts replaced. The unit must be replaced when/if it fails.

Like other KCS 55A compass system components, the  KMT 112 transmitter can be furnished in NEW condition or as USED in Serviceable or Overhauled conditions indicated respectively by the letters "SV" and "OH" in the product reference numbers (SKU and  accompanied by the relevant certification (e.g. yellow tag, 8130-3 form). They are also offered as exchanges / trade-ins  for returned customer owned units indicated by the letter "EX" in the SKU.  In the case of an exchange/trade-in option of a customer unit, the  full selling price of the ordered unit is charged and the core credit is refunded or credited towards future orders when our co-operating supplier verifies that the unit is in a reasonable, repairable condition. It is recommended that this option is selected by our customers mainly for upgrades and only in cases when their units are functioning properly at the time removal from the aircraft. In cases when customer units are found by our supplier to be non-repairable, the core deposit shall not be refunded and shipping charges shall apply if customers wish the return of these units to them.

Installation parts and manuals are sold separately.

For additional information and technical specifications please refer to the Product Desscription section, the product presentation of the HONEYWELL BENDIX KING® KCS 55A compass system or contact us.

These UMA new manufacture NON TSO'd electric ammeters offer accuracy, rugged construction, and contemporary styling. They are available in different  measurement ranges with a 270° sweep and are suitable for installation in 2-1/4" panel hole diameters. Made in U. S. A. and furnished with shunt.

The SIRS "Navigator" magnetic compass delivers extremely accurate readings due to its fully integrated, 4 magnet correction facility.  It has the same features as the "Pegasus", but is mounted with a fully adjustable bracket that allows attachment to a variety of positions including the glare-shield or the windshield. This allows the compass to be located away from magnetic influences. Available in different versions for Northern or Southern hemisphere, unlighted  or lighted 12/28V and has a 3-year warranty. Size: 203/8" H x 2-1/4" W. Product accessories such as installation kit, GS1 glareshield mount, SIRS MF1 short foot bracket and SIRS compass correction key are also available and sold separately.

TSO'd Electronic Fuel Quantity gauges from UMA INSTRUMENTS (indicated by the letter "T" in the PN) are offered in 1-1/4 in. and 2-1/4 in. sizes for installation in respective panel hole diameters and mounted with (4) 6-32 screws. Smaller 1-1/4 in. instruments can be cluster mounted as close as 11/2” centers utilizing panel space without compromising readability. They can be powered from 14 or 28 volts. Signals are acquired from remote mounted sensors, processed and displayed on black analog dials with white easy to read markings indicating empty to full fuel level. Each gauge uses rugged aircore meter movement for vibration resistance and repeatability. Available in different versions based on their sender type and range. UMA sensors are sold separately.

Amphenol MS MIL-C-5015 Circular Plug Connectors are designed to meet the demanding performance requirements of military standards. These cable mount circular plug connectors have proven electrical capability for equipment applications where durability is important. The Amphenol plugs have threaded couplings and single key/keyway shell polarization for an accurate and reliable connection. The solid shells of these MS Series circular MIL-C-5015 connectors are made from high grade aluminium alloy. The shells are electrically zinc plated with an olive drab chromate finish which ensures a high resistance to corrosion. The inserts of these military circular connectors are made from resilient synthetic rubber which offers a high dielectric strength and resistance to vibration.

The MS3106A-10SL-3S plug can be used with Turn Coordinator TC02E-3-2 or Turn & Bank Indicator TB02E-2-1.

Designed to help the pilot determine altitude by measuring existing atmospheric pressure, the altimeter translates the measurement into “height above sea level.” This is indicated on the dial of the instrument in feet, which requires setting the barometric pressure in the Kollsman window.

UNITED INSTRUMENTS 5934 series are FAA TSO'd 3"/ 3-pointer altimeters, intended for use with most single engine, turbo/piston prop aircraft. They are offered in 5934 and 5934A models with respective maximum calibrated ranges  of -1.000 to 20.000 feet and  -1.000 to 35.000 feet respectively. All lighted instruments require a light tray sold separately.

Product Features:

Affordable, certified 3-1/8" case for half the cost of existing systems

United series 5934

All units approved to FAA TSO (C10b,C2b and C4c)

Anti-reflective glass enhances visibility and reduces pilot fatigue

Altimeter available with right-hand or left hand knob 20,000 or 35,000 ft. Hg or Mb

All instruments are made in the USA

One year limited warranty

Product Specifications:

Typical Weight: 13 oz

Number of Pointers: 3

Barometric Setting: 28.1 to 31.0 in HG / 946 to 1050 mb

Calibrated Ranges: -1,000 to +20,000 or +35,000 feet

Static Pressure Connection: 1/8-27 ANPT

Installation: Removable Spring Nuts and screws

For additional information please consult the supplied documentation.

The LXNAV G–Meter  (accelerometer) is a standalone unit, designed to measure, indicate and log g–forces. The unit is offered in 57 mm or 80 mm diameters for installation into the aircraft instrument panel. It comes in two versions, standard and with flight recorder (FR).

The LXNAV G–Meter has an integrated high precision digital pressure sensor and inertial system. The sensors are sampled more than 100 times per second. Real Time Data is displayed on a QVGA 320x240 pixel 2.5″ high brightness color display. To adjust values and settings the LXNAV g–meter has three push buttons with fixed functions. The top button is ESC (CANCEL), the middle is to switch between modes and the lower button is the ENTER (OK) button.

The unit's inertial platform integrates a  ±8g accelerometer. Device is showing current g–load in navbox/needle and it’s min-max values in bar. Last flight min/max load navboxes are persistent till next flight. Min/Max limits with Warning zones can be defined.

Real Time Data is displayed on a QVGA 320×240 pixel 2.5-inch high brightness color display.

The Logbook menu displays the list of flights. If the RTC time is set properly the take-off and landing time shown will be correct. Each flight item consists of the maximum positive g–load, the maximum negative g–load from the flight and the maximum IAS. This function is available only with “FR” version.

Product Features:

• An extremely bright 2.5″ QVGA color display readable in all sunlight conditions with the ability to adjust the backlight.

• Three push buttons are used for input.

• RS232 input/output.

• Micro SD card

• 320x240 pixels color screen for additional information such as minimum and maximum g–force

• Built in RTC (Real time clock)

• Logbook

• 100Hz sampling rate for very fast response.

• Power supply cable included
