5 inch wheel with 4.3 inch width with an additional 1.39 inch caliper spacing.

BERINGER AERO manufactures a range of wheels, brakes and related parts for use on certfied and non-certified aircraft (LSAs, experimentals and gliders). Their product portfolio includes among others wheels,Certified (STC) and Non Certified wheel/brake assemblies, wheel and brake parts and related tools.

Wheel and brake parts are included in this presentation while wheels and wheel/brake assemblies and tire options are separately presented.

For more information please refer to the Product Description section and the supplied documentation or contact us.

AIRFRAMES ALASKA designs and manufactures ALASKAN BUSHWHEEL (ABI) wheels & brakes and tires made for flying and landing off-field in the most rugged backcountry conditions. ABI tires absorb the energy of rough landings, taking the brunt of the impact off the pilots, wheels, gear, and airframe. Unlike your standard aircraft tires, Bushwheels are tubeless. This distinctive design eliminates the problem of tire slippage and stem shearing and makes it possible to run these tires at very low PSI. Different models are offered to suit needs of aircraft operating conditions. ABI tires are FAA TSO C62d approved. Models are available in the following versions and fit standard 6" wheels unless otherwise mentioned:

Standard thread: 3/16"

Heavy thread: 1/4". Heavy tread 26" ABI tires are constructed with a thicker tread layer. Suitable for pilots operating their aircraft on pavement between backcountry flights.

The 26" ABI tires are designed and handcrafted for use on lighter aircraft such as Cessna 182 & Cessna 206. They're also the ideal "entry level" bush tires for pilots upgrading from standard tube type aviation tires for the first time.

A step up in terms of size, 29" ABI tires have a slighter profile and create less drag than larger Bushwheels. This places these bush tires in size/weight sweet spot for heavier aircraft like Cessna and Maule while still providing the footprint and energy absorption critical in bush landings.

The 31" ABI tires are handcrafted featuring an impressive ratio of weight to size. Their solid footprint makes these bush tires the de facto standard for bush pilots.

The 35" ABI tires are designed for the most rugged off-airport operations. They require ABI 10650 10" wheels.

The 35" Beaver ABI tires stand up to the heavier load of de Havilland Beaver and Pilatus aircraft with a gross weight up to 5600 lbs (2800 static load rating per tire).

GROVE manufactures axles and hardware for use in GROVE wheels as well as those of other manufacturers.

GROVE 500x5 wheel axles (P/N. 5013 standard and P/N. 5018 with wheel pant stub) are produced from solid 2024-T3 aluminum with anodized finish. They have a 1-15/16" Bolt Circle hole pattern and 1/4" diameter holes.

500x5 1-1/4" diameter standard axle (P/N. 5013) is the most popular axle for 500x5 wheels. It is designed to fit Grove 50-1, 51-1, 56-1, 57-1, 57-5 and Cleveland 500x5 wheels. Axle Weight: 0.92 lbs. Static Load Rating 1,250 lbs.

500x5 1-1/4" diameter axle (P/N. 5018) has built-in wheel pant stub with 1/4-28 thread. It is designed for use with Grove 50-1, 51-1, 56-1, 57-1, 57-5 and Cleveland 500x5 wheels. Axle Weight: 0.95 lbs. Static Load Rating 1,250 lbs.

Both axles require two spacers per axle (P/N. 5710) sold separately.  I.D: 1-1/4", O.D. 1-3/4", Thickness: 1/4". They can be used with 500x5 axles.

Standard axle nuts and axle bolt kits sold separately are also offered as part of GROVE product portfolio. Castle type nuts are manufactured to MIL Specification MS21025 using 4140 steel. Mild steel nuts are not acceptable for use on certificated aircraft. 1-1/4" dia. nuts for 500 x 5 axles, 1-1/2" dia. nuts for 600 x 6 axles.

TOST Flugzeuggerätebau designs and manufactures top quality products including aircraft wheels, brakes, tires, tubes, glider towing and launching equipment and tow releases serving the needs of aviation sports and industry. TOST and TOST AERO brands for tires are synonyms for safety in aviation.

For more than 30 years TOST has manufactured aircraft tires from 3" to 10" exclusively under the TOST AERO brand with a long lifetime, robustness and capability for high loads and speeds. TOST AERO tires and tires from other brands can be used with TOST wheels designed to cover a wide range of applications in gliders, motor gliders, aircraft, ultralight, amphibium aircraft, helicopters and gyrocopters but also in heavy-duty applications. Matching tire tubes with different valves and valve extensions are also offered by TOST to cover application requirements.

For additional information please refer to the supplied documentation.

GROVE Wheels and Brakes are precision engineered and manufactured to provide the highest quality and performance in the aircraft industry. GROVE wheels are manufactured in both aluminum and magnesium.  Aluminum wheels are more corrosion resistant than magnesium, are less expensive, but weigh more.  Both have the same strength and performance ratings. They are offered in sets (kits) in different sizes to comply with tire and axle sizes and static load ratings to match  the static aircraft gross weight on each wheel. GROVE brakes are offered for different braking torques, a function of the hydraulic system pressure and total caliper piston area, and with different kinetic energy capabilities. Aircraft with oversized tires or with a larger than normal engine should consider brake calipers with more or larger pistons. Different brake discs offered absorb the heat energy developed during braking.

Please refer to the Product Description section and the supplied documentation for additional information.

STOMIL-POZNAŃ S.A. is a tire manufacturer producing All-Terrain (AT) tires designed to perform on- and off-road, providing traction and comfort in different surface conditions. STOMIL tires are used in aviation as well other sectors such as the mining industry. STOMIL tires are installed in most Polish gliders and aircraft including; Jantar, Puchaz, PW–5, etc. They are offered in different versions (Wersja) and sizes with  350x135, 200x80 and 255x110 being the most popular ones. Different STOMIL tubes are also offered for use with the company tires.

For additional information please refer to  the supplied documentation.

Bias and radial aircraft tires and matching tire tubes are offered as part of our own labelled (AVIATION NEW ERA) product lines for use in main and nose wheel applications in general aviation, commercial, military aircraft and other projects.

Sourced from co-operating quality manufacturers holding ISO and other certifications, the AVIATION NEW ERA tires are available in Tube or Tubeless types in different ply ratings, tread patterns and sizes to meet respective rated load and pressure requirements of intended applications. For tube type tires, matching tire inner tubes with different types of valves are also offered. The AVIATIONEU NEW ERA aircraft tires and inner tubes are intended as cost-effective alternate parts to the respective known brands.

They are approved for use on the respective aircraft in their country of origin and other countries where they are exported depending on signed bilateral agreements between the respective Civil Aviation Authority of the producer and the export country.

All AVIATION NEW ERA tires and inner tubes are supplied with our standard Certificate of Conformance. If other certification is required, please specify at order placement as additional cost may apply.

Please refer to additional information  in the Product Description section for a better understanding of their construction and characteristics, our brief product brochure on aircraft tires and tubes or contact us for additional information.

A grease seal, often called an oil or dirt seal, is a type of seal utilized to retain grease in a case or housing. Grease seals close spaces between stationary and moving components in mechanical equipment, helping prevent lubricant escape. Preventing harmful containments from entering machinery is another critical function of a grease seal. Oil and grease seals are available in numerous lip materials. Popular materials include felt, leather, urethane, nitrile, polyacrylate, ethylene-acrylic or polyacrylic, silicone, fluoro-elastomer, tetrafluoro-ethylene propylene and PTFE. Cleveland Grease Seals are intended for use in Cleveland Wheel Assemblies.

The company SPECIALTY TIRES OF AMERICA (formerly McCREARY TIRE & RUBBER providing automotive tires) manufactures a wide range of aircraft tires under different brands including SUPER HAWK®, AIR HAWK®, AIR TRAC®, AERO CLASSIC® & AERO TRAINER® as well as matching tire tubes. Different brands (series) briefly presented below are separately listed. They are supplied with a standard Certificate of Conformance. If an FAA/EASA Form is needed and is available please mention during the order placement. In this case, additional cost may apply.

Inner tubes are also offered for tube type tires which generally share the same designation as the respective tire (e.g. a 5.00-5 inner tube fits a 5.00-5 tire) with exceptions when the inner tube can fit more than one aircraft tyre size (e.g. the 5.00-5 inner tube can be used in both the 5.00-5 as well as the 15×6.00-5 tires). Inner tubes are supplied with valves of different designs (e.g. straight or 90º bend valves) carrying respective designations. Accessories such as French Chalk, Valve Caps, and Cores are also available on request. For more information please refer to the supplied documentation.

SUPER HAWK® tires are the best choice when  the highest levels of performance and extra-long tread life are required. Designed to handle higher landing speeds and heavier loads, these tires combine advanced design & over 90 years of precision tire craftsmanship resulting in premium belted aircraft tires that surpasse FAA specifications and match the performance of more expensive brands.

AIR HAWK® tires are premium grade & priced tires, but provide longer service life. Excellent choice for a wide range of applications. Improved tread compounds and high-strength casings offer added wear resistance and an extra measure of security. AIR HAWK® tires are FAA approved and tested by thousands of pilots, delivering a reliable, cost-effective performance under a wide variety of takeoff and landing conditions.

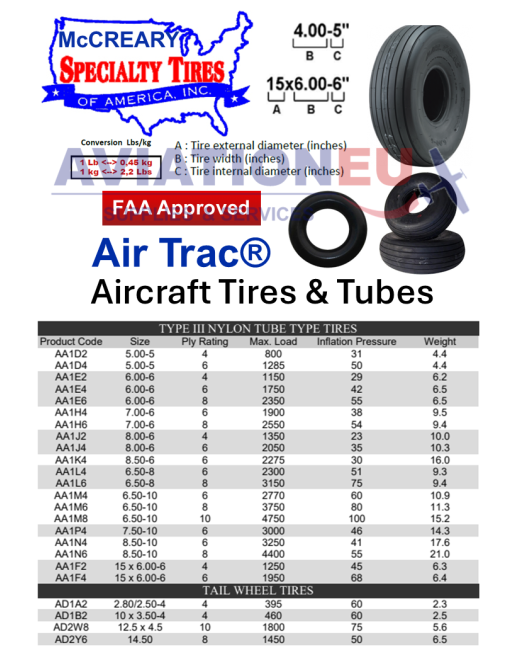

AIR TRAC® fine nylon cord narrow-ribbed, oval shaped tires are designed for soft field applications and rigidly tested to meet FAA Standard TSO-C62. The  AIR TRAC  tires consist an excellent choice for single engine, piston aircraft. Thesy are ideal for aircraft operated on grass strips while being perfectly usable on hard surfaces. These tires are are original equipment on many of today’s aircraft and offer a great performance in an economical tire. AIR TRAC® tubes are the perfect match to the AIR TRAC®  tires.

AERO CLASSIC® tires are designed specially for classic planes including warbirds, DC-3's, and Beech 18's, often the only manufacturer producing tires for these aircraft. The product line includes over 50 tires and tubes, from 8" diameter for tailwheels, up to 56" diameter C-130 inner tubes. AERO CLASSIC® tubes are tested to MIL-I-5014F standard.

AERO TRAINER® tires are designed for flight schools with single engine trainers. They combine the high quality and durability with a competitive price.

Aluminum valve as used in production aircraft with Model A-110 master cylinders for dual brake installations. Complete with AN flare fittings.

Brakes and related parts for use on Textron Aviation Cessna, Beechcraft and Hawker aircraft. Also available as FAA-PMA approved parts from other manufacturers.

MATCO mfg manufactures an extensive range of master cylinders for brake applications. MATCO mfg's MCMC-4 master cylinders use a REMOTE reservoir and are offered in different models. They can be mounted vertically or horizontally (Universal) to the exterior reservoir and can be used in individual or dual brake applications. They use a  0.625 inch diameter piston and Buna-n o-rings. Mil-H-5606 aircraft hydraulic fluid or compatible fluids are reccomended. DOT5 may be used but not DOT5.1 which contains glycol. DOT3 and DOT4 may not be used and will cause immediate damage to the seals. Tested to a maximum of 1200 psi. Normal operation: 400-600 psi. The MCMC-4 has an adjustable clevis.

MCMC-4 Product Features & Specifications:

Umiversal - Vertical or horizontal mounting with exterior reservoir.

Buna-n orings

Measures 8.05 +-0.25 inches from end to end.

Measures 7.5 +-0.25 inches from mounting hole to mounting hole.

A 0.625 inch diameter piston is used.

Stroke is approximately 1.388 inches.

Displacement is 0.43 cubic inches.

The ports on all MATCO mfg master cylinders are 1/8 inch NPT (except the MC-4E).

MCMC4A is 0.50 inch shorter that the MCMC-4.

The FIRESTONE® TIRE and RUBBER Company was a manufacturer of tires for automobiles with an extensive product portfolio ranging from consumer, commercial bus & truck to off-the-road, agricultural tires and tire tubes. Early leader in the mass production of tires FIRESTONE® became the original equipment supplier of Ford Motor Company automobiles. Acquired by the Japanese BRIDGESTONE® CORPORATION in 1988 it operates now as BRIDGESTONE® AMERICAS TIRE OPERATIONS, LLC and known as BRIDGESTONE® FIRESTONE®. FIRESTONE® tires are manufactured in multiple countries on strict guidelines, using modern technologies and high-quality raw materials.

For additional information on BRIDGESTONE® FIRESTONE® tires & tire tubes please refer to the Product Description section & the supplied documentation.

RAPCO produces quality FAA-PMA approved replacement organic and metallic brake linings for Cleveland and McCauley brake assemblies on most general aviation aircraft. Organic linings are actually made from a semi metallic mix. RAPCO combines brass, copper and Kevlar fibers with a high temperature binding compound to provide outstanding performance and long service life. Most RAPCO organic linings have a built in wear indicator, which reduces the risk of damage to the brake disc and helps to optimize lining life. RAPCO organic linings are available in boxes of 10 or in organic lining kits containing the proper number of linings and rivets necessary for replacement on Cleveland or McCauley brake assemblies. They are convenient to have on hand when the need for relining occurs. Metallic lining replacements for the Cleveland brake assemblies are made of sintered steel, a specially developed process that fuses metallic particles to a steel carrier plate. RAPCO metallic linings offer long life and excellent braking performance.

RAPCO Brake Rivets are FAA-PMA approved quality tubular rivets produced from plated steel for mounting aircraft brake linings. The RAPCO RA825 Rivet Tool Kit is recommended for proper installation.

Please refer to the attached Application Guide for additional information.

MICHELIN® Aircraft Tyres is internationally recognized as the No.1 tire manufacturer in the world. The company provides bias tires, radial tires, and tubes for aviation customers around the world, in a range of applications including commercial and regional airlines, general aviation and military aviation.

Michelin® AIR® Aircraft Tires offer just the right balance of performance and durability required by demanding pilots. The sidewall compound is optimized to provide maximum ozone and ultraviolet light protection, while the MX2000 tread compound is Michelin’s toughest. In addition, the new Air Cushion Inner Liner provides a protective cushion over the casing plies which guards against inner tube chafing. And the “Posi-Fit” bead construction reduces movement between the tire and the wheel for improved lateral stability. Offered in NEW or USED (RETREAD) (*) Condition.

Michelin® AIR® Aircraft Tires are designed to provide:

- a very long tire life and lower maintenance costs due to fewer tire changes

- exceptional balance for smooth taxiing,even wear, and heat resistance

- maximum protection against sidewall cracking caused by ozone and UV light

- excellent lateral stability and impact absorption, even under rough landing conditions

Product Features:

Deep Tread Depth: Thick rubber in the tread area helps provide for a long tire life. Contributes to lower maintenance costs due to fewer tire changes.

Unique Bead Construction: Provides a firm (tight) fit to help reduce movement between the tire and wheel. Helps improve lateral stability for a long tire life, even under rough landing conditions

Optimized Casing Design: Proprietary Michelin production processes help balance stresses within the tire structure. Strong, yet lightweight nylon cords are designed to exceed strict industry standards for overpressure strength. Results in an effi cient, lightweight product with excellent balance properties for smooth taxiing, even wear, and resistance to heat buildup for a long tire life.

Customized Rubber Compounds: Sidewall is optimized for both ozone and ultraviolet light protection which helps reduce ozone cracking in key areas of the tire. Provides our maximum amount of exterior wear and crack resistance for a long tire life.

Contoured Shoulder Design: Helps absorb lateral impacts associated with landing. Designed to help the tire achieve a full life, even under adverse conditions.

(*) Retread tires have undergone a remanufacturing process to replace the worn tread on used tires with new tread to help extend the life of the tire. The number of times the  tread has been replaced in the tire casing is indicated by a number just after the letter "R" in the product reference number (SKU), namely R1, R2, R3 and so on.

McFARLANE® AVIATION MC0543022-2 Series FAA-PMA approved nose wheel steering rods s are intended for use on for Cessna 172 series aircraft replacing respective OEM steering rod,tube assemblies.They feature new re-designed long-life springs, hardened internal washer for greater durability, stainless steel tubes for improved corrosion resistance  and optimum performance even after years of service.

Cessna Models' Application List:

172D,E,F,G,H,I,K,L,M,P

P172,

R172K

F172D,E,F,G,H,K,L,M,N,P

FP172

FR172E,F,G,H,J,K

172R

172S

MITAS is the tyre brand for a range of applications for aviation, agricultural machines, construction vehicles, material handling equipment, motorcycles, and other specialty market segments. MITAS tyres (or tires) are distributed worldwide using global sale network TRELLEBORG WHEEL SYSTEMS which has been acquired by the YOKOHAMA RUBBER Co., Ltd. (Yokohama TWS). MITAS aircraft tyres are suitable for civil and military aircraft meeting tyre application requirements for ultra light, sport, light and turboprop aircraft as well as military light jets and military trainers. MITAS aircraft tyres are offered in 3 tread patterns: grooved guiding tread pattern (marked R – ribbed) which ensures stability of the aircraft and adhesion on a wet surface, TC (twin contact) designed for steerable front wheels and MX (mixed), a combination of both previous types. MITAS aircraft tyres are designed for use as  used as OEM parts by different aircraft manufacturers or replacements to the respective tires of other brands.All new tires for commercial aviation are certified in accordance with the rules of the European Aviation Safety Agency (EASA).

For additional information please refer to  the supplied documentation or contact us.

Aircraft braking systems serve a vital function during takeoff, landing and taxiing. Along with landing gear, aircraft wheels and brakes are critical to ensure safe and reliable aircraft ground operations under extreme forces, stress, as well as wear and tear from general operation and the environment. Commercial aircraft brakes are arranged in multiple disk pairs commonly referred to as Heat Sinks or Heat Packs (as they convert the kinetic energy of the moving airplane to heat energy). Initially made metal (steel) heat sinks are gradually replaced by those from carbon fibres (particularly on larger, long-haul commercial airplanes) due to their higher efficiency in braking applications, longer life-span, lower weight and resulting less fuel consumption and lower CO2 emission by the engines.

Carbon and steel heat packs and parts are offered as part of our own labelled (AVIATIONEU NEW ERA) product lines. Sourced from quality suppliers these heat packs  feature high quality, safety, improved design, significant cost savings and fast deliveries. They can be used as  cost effective alternatives in many commercial aircraft platforms equalling or exceeding standards of  respective OEM products by leading manufacturers such as Honeywell Aerospace, Collins Aerospace/Goodrich Wheels & Brakes, Parker Meggitt Aircraft Braking Systems and Safran Landing Systems (formerly Messier-Bugatti-Dowty). They are  PMA approved (*) parts by the Civil Aviation Administration of China (CAAC) for use on an extensive list of Western and Eastern commercial (civil ) aircraft platforms including Boeing, Airbus, McDonnell Douglas, Ilyushin and others and are currently installed in aircraft operating by different air transport operators in China and other countries in the Middle-East, South and Central Asia and Africa.

Typical Aircraft Applications for steel and carbon heat packs include Boeing 737 / 757, Airbus A318 / A319 / A320 / A330 , McDonnell Douglas: MD82 /MD90  Xian MA60 etc.

(*)  Parts Manufacturer Approval (PMA) is a combined design and production approval granted by a competent Civil Aviation Authority (CAA) to a manufacturer of aircraft parts for modification and replacement. Use of Civil Aviation Administration of China (CAAC) approved parts in other countries depends on existing bilateral agreements between CAAC and respective competent authorities in these countries.

For additional information please contact us.
