ROTAX 912 F Series FAR33 Certified Aircraft Engines
  • ROTAX 912 F Series FAR33 Certified Aircraft Engines
  • BPR-ROTAX 912  F Series FAR33 Certified Aircraft Engines-Specifications

BRP-ROTAX® 912 F Series FAR33 Certified Four Cylinder Aircraft Engines SKU: RTX-ENG-AERO-912-F

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

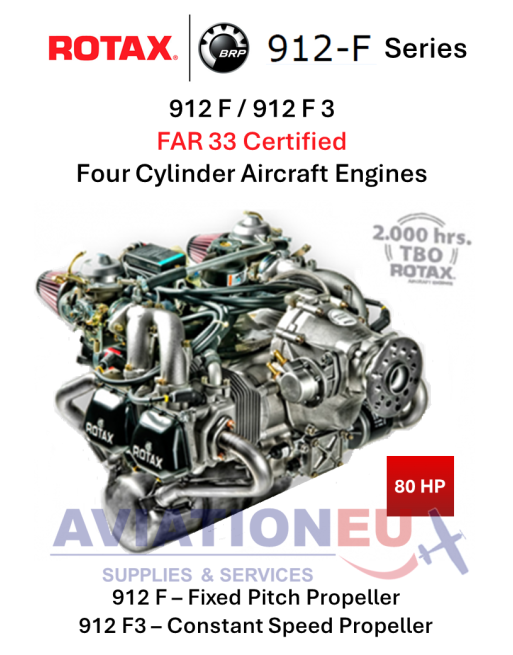

BRP-ROTAX® 912 F Series are four cylinder aircraft engines certified according to FAR-33.  Model 912 F is suitable for fixed pitch propeller while model 912 F3 for constant speed propeller is the same as 912 F additionally with drive for hydraulic governor & cover for sealing of governor flange. For additional information please refer to the supplied documentation.

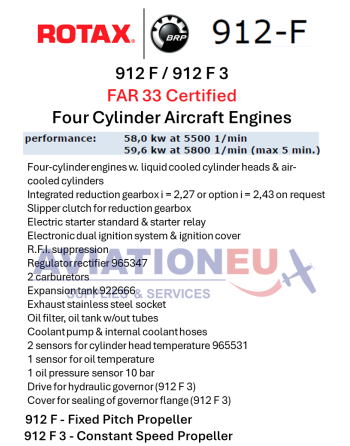

912 F/F3 Engine Features:

Performance: 58,0 kw at 5500 1/min, 59,6 kw at 5800 1/min (max 5 min.)

four cylinder engine

liquid cooled cylinder heads,aircooled cylinders

integrated reduction gearbox i = 2,27 or option on request i = 2,43

slipper clutch for reduction gearbox

electric starter standard + starter relay

electronic dual igniction system

igniction cover

R.F.I. suppression

regulator rectifier 965347

2 carburetors

expansion tank 922666

exhaust socket in stainless steel

oil filter, oil tank,without tubes

coolant pump and internal coolant hoses

2 sensor for cylinder head temperature 965531

1 sensor for oil temperature

1 oil pressure sensor 10 bar

drive for hydraulic governor (Model 912 F3)

cover for sealing of governor flange (Model 912 F3)

2000 hrs TBO

Options (supplied with the engines):

drive vacuum pump

mechanical tachometer pick-up

integration for electric starter large (HD- high duty)

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s). For pricing of options please refer to those listed under 912 A Engine Series.

Mfr. P/N & Title
Certification
RTX-912F

Data sheet

Certification/Approval
Certified product/part
Taric
8407100090 Spark-ignition reciprocating or rotary internal combustion piston aircraft engines
Unit of Measurement (UOM) / Sale
Each (ea.)
Common Procurement Vocabulary (CPV) Code
34731100-1 Aircraft engines
NATO Supply Group/Class Code (NSG/NSC)
2810 Gasoline Reciprocating Engines Aircraft Prime Mover and Components

Specific References

taric
8407100090
New
