BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

The BRP-ROTAX® 916 iS series are turbo charged four cylinder aircraft engines with best power-to-weight ratio and TBO 2,000h. This series includes non-certified (916 iSA)  and EASA CS-E certified models (916 iScA) and also models for 24V power aircraft supply systems (non-certified 916 iSA C24 and EASA CS-E certified 916 iScA C24).

916 iS Series Engine Features:

Four-stroke piston engine with four liquid and air-cooled cylinders

Redundant electronic fuel injection and ignition, eco mode

Turbocharger, stainless steel exhaust

Dry sump forced lubrication with separate oil tank, automatic adjustment by hydraulic valve tappets

Engine management system (EMS)

Electric starter (12 or 24 Volt)

Propeller speed reduction gearbox

Intercooler

TBO 2,000 hrs

Maximum operating altitude 23,000 feet

Full take-off power up to 15,000 feet

Available Options (supplied with the engine):

air guide baffle installed

2 electrical fuel pumps

silicon water hoses

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s).

For additional information please refer to the supplied documentation.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

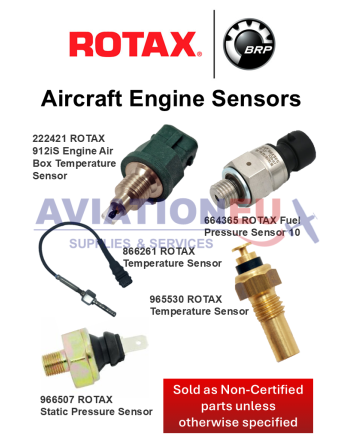

Different sensors are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer depending on the type of the engine. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different wire harnesses are parts intended for use in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Ignition systems and parts are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from BRP-ROTAX® but also from other manufacturers.  Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different vacuum pumps are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. The RAPCO FAA/PMA'd vacuum pump, RA215CC  is used in ROTAX® 912 UL, 912 ULS and 914 UL engines. Please refer to the separate product presentation for RAPCO Dry Air Pumps for vacuum or pressure system applications.

Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different air filters are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different springs are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Airboxes are used in ROTAX® aircraft engines to remove SOME of the difficulties created by having two independent induction systems. They simplify sourcing the air for both carburetors. Depending on the installation, the air temperature and/or pressure within the engine cowling may be significantly different on each side. Airboxes make it easy to run a single intake hose to a point on the aircraft where preferred ambient air can be obtained. They also make the provision of the same carb heat air simpler to each carburetor.

BRP-ROTAX® airboxes and parts are offered as certified or non certified from BRP-ROTAX®.  Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Exhaust systems and parts are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from BRP-ROTAX® but also from other manufacturers.  Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Shock mounts and mount sets are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from BRP-ROTAX® but also from other manufacturers.  Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Revolution Counters (Tachometers)/HOBBS meters are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from BRP-ROTAX® but also from other manufacturers.  Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Fuel pressure gauges are used in BRP-ROTAX® aircraft engines and offered as certified or non certified parts from their respective manufacturers. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation.

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

Fuel pressure gauges are no longer offered as ROTAX Part Numbers. These part numbers are provided for reference only. For these gauges please refer to our product presentation on AVIASPORT Fuel Pressure Gauges or contact us.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different spacers are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different alternators are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different starter relay assemblies are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different cylinder heads and cylinder head assemblies are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different screws, such as hexagonal, allen, fixation and others are used in BRP-ROTAX® aircraft engines (please refer to the respective product presentations). They come in various sizes (mostly Metric) and are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different screws, such as hexagonal, allen, fixation and others are used in BRP-ROTAX® aircraft engines (please refer to the respective product presentations). They come in various sizes (mostly Metric) and are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" after the part number in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different oil filters and other oil system parts are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different hoses for water, heat, air intake, protection, form, connecting, low pressure and others & related fittings are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU). ROTAX engine hoses are generally sold in meters and appearing prices are per meter but some hoses of specific dimensions and fittings are sold in pieces.

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

In contrast to the previous version, the Version 3.0. of BRP Utility and Diagnostic Software (B.U.D.S.) software (replacing the previous version 2.4) has been developed as part of continuous improvement and offers a new graphical interface and support of all 912 i and 915 i Series engines. Furthermore, a better integration of the maintenance functionalities improves the user experience. Available as Certified and Non Certified part from the manufacturer.

The following functionalities are available with each B.U.D.S. Set Level 3 Maintenance Software:

- Main Gauges

- Health

- Logs

- ECU Configuration

- Fuel and Ignition

- Internal and GSM

- Turbo

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different oil and water radiators, intercoolers and other cooling system parts are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

The BRP-ROTAX® 915 iS series are turbo charged four cylinder aircraft engines offered in non-certified (915 iSA)  and EASA CS-E certified models (915 iScA). These engines are also offered for 24V power aircraft supply systems. The respective models are  915 iSA C24  (non-certified) and 915 iScA C24 (EASA CS-E certified). These engines are suitable for aircraft equipped with a constant speed propeller or a fixed pitch propeller.

Different options are also available and can be supplied with the engine at additional cost.  They can only be ordered at the time of ordering of the respective engine(s). For additional information please refer to the supplied documentation.

915 iS Series Engine Features:

Performance: 99 kw at 5500 1/min, 104 kw at 5800 1/min (max. 5 min)

four cylinder engine

liquid cooled cylinder heads, air cooled cylinders

integrated reduction gearbox i = 2,54 (915 iSA /915 iScA)

integrated reduction gearbox i = 2,54, version 2 or 3 (915 iSA C24/915 iScA C24)

slipper clutch for reduction gearbox

electric starter + starter relay

engine control unit (ECU)

double elecrtonic system with two voltage regulators

double electronic fuel injection system

turbocharger with electronic controlled wastegate

expansion tank 922668

stainless steel exhaust system

oil filter, oil tank, without tubes

airbox

engine truss assembly (Assy) without silent block

intercooler

aircraft power supply 24V/800W (915 iSA C24/915 iScA C24)

Available Options (supplied with the engine):

air guide baffle installed

2 electrical fuel pumps

silicon water hoses

starter 24V

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s).

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

The BRP-ROTAX®  914 UL Series Aircraft Engines are non certified  turbo charged four cylinder engines. Certified models of this engine (914 F2  and 914 F3) are also offered (please refer to the respective 914 F Series product presentation).

ROTAX 914 UL Series are intended for use in ultralight and experimental aircraft. Engine model 914 UL2 is suitable for aircraft equipped with a fixed pitch propeller and it is offered with or without slipper clutch installed. Engine model 914 UL3  is the same as 914 UL2  with additionally a drive for hydraulic governor, a cover for sealing of governor flange and a slipper clutch for reduction gear box.

Different options are also available at additional cost. They can only be ordered at the time of ordering of the respective engine(s).

914 UL Series Engine Features:

Performance: 73,5 kw a 5500 1/min, 84,5 kw a 5800 1/min (max 5 min.)

Four cylinder engine

liquid cooled cylinder heads, aircooled cylinders

integrated reduction gearbox i = 2,43

electric starter standard + starter relay

electronic dual ignition system

ignition cover

R.F.I. suppression

regulator rectifier 965349

2 carburetors

turbocharger with electronic controlled wastegate

2 external electric 12V fuel pump 996 738

engine truss assembly (Assy) without silent block

stainless steel exhaust system

expansion tank 922666

oil filter, oil tank,without hoses

coolant pump and internal coolant hoses

2 sensor for cylinder head temperature 965531

1 sensor for oil temperature

1 oil pressure sensor 10 bar

airbox with drip tray set

without propeller cover disc and round neck nut set

drive for hydraulic governor (Model 914 UL3)

cover for sealing of governor flange (Model 914 UL3)

slipper clutch for reduction gear box (Model 914 UL3)

Available Options (supplied with the engine):

drive vacuum pump

electric starter large (HD- high duty)

mechanical tachometer pick-up

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s). For pricing of options and overhaul kits please refer to those listed under 914 F Engine Series.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

The BRP-ROTAX® 914 F series aircraft engines are turbo charged four cylinder engines (115 hp) certified according to FAR-33 and JAR-E . A non certified model (914 UL) is also offered (please refer to the respective product presentation).

With a time between overhauls of 2.000 hrs these engines offer more performance at high altitudes while keeping weight at a low level. The BRP-ROTAX® model 914 F2 is suitable for aircraft equipped with a fixed pitch propeller while the model 914 F3 for constant speed propeller is the same as 914 F2  with additionally a drive for hydraulic governor, a cover for sealing of governor flange and a slipper clutch for reduction gear box. Different options are also available and can be supplied with the engine at additional cost.  They can only be ordered at the time of ordering of the respective engine(s).

914 F2/F3 Engine Features:

Performance: 73,5 kw at 5500 1/min, 84,5 kw at 5800 1/min (max. 5 min)

Four cylinder engine

Liquid cooled cylinder heads,aircooled cylinders

Turbocharger

2.000 hrs TBO

integrated reduction gearbox i = 2,43

slipper clutch for reduction gearbox

electric starter standard + starter relay

electronic dual ignition system

ignition cover

R.F.I. suppression

regulator rectifier 965347

2 carburetors

turbocharger with electronic controlled wastegate

2 external electric 12V fuel pumps 996738

engine truss Assembly (ASSY) without silent block

stainless steel exhaust system

expansion tank 922666

oil filter, oil tank,without hoses

coolant pump and internal coolant hoses

2 sensors for cylinder head temperature 965531

1 sensor for oil temperature

1 oil pressure sensor 10 bar

airbox with drip tray set

without propeller cover disc and round neck nut set

drive for hydraulic governor (Model 914 F3)

cover for sealing of governor flange (Model 914 F3)

slipper clutch for reduction gear box (Model 914 F3)

Available Options (supplied with the engine):

drive vacuum pump

electric starter large (HD- high duty)

mechanical tachometer pick-up

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s).

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different fuel pumps, filters and other fuel system parts are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different spark plugs and plug connector are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft engines form part of the product portfolio of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts. BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

The BRP-ROTAX® 912 UL/912 ULS series aircraft engines are four cylinder/four stroke non certified engines suitable for experimental and ultralight aircraft. Different models include 912 UL, 912 UL 3, 912 UL S2 as well as  and 912 UL S3 (UL 3/UL S3 models are for constant speed propeller). The BRP-ROTAX® 912 UL 3 engine is the same as 912 UL engine additionally with drive for hydraulic governor & cover for sealing of governor flange and slipper clutch for reduction gearbox. The BRP-ROTAX® 912 UL S3 engine is the same as  912 UL S2 engine additionally with drive for hydraulic governor & cover for sealing of governor flange.

Different options are also available at additional cost. They can only be ordered at the time of ordering of the respective engine(s).

For additional information please refer to the supplied documentation.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Different washers such as thrust, friction, lock and other washers are parts intended for use in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

The BRP-ROTAX® 912 S Series are FAR33 certified four cylinder aircraft engines.  Model 912 S2 is suitable for fixed pitch propeller while model 912 S3 for constant speed propeller is the same as 912 S2 additionally with drive for hydraulic governor & cover for sealing of governor flange. For additional information please refer to the supplied documentation.

912 S2/912 S3 Engine Features:

Performance: 69,0 kw at 5500 1/min, 73,5 kw at 5800 1/min (max 5 min.)

four cylinder engine

liquid cooled cylinder heads,aircooled cylinders

integrated reduction gearbox i = 2,43

slipper clutch for reduction gearbox

electric starter standard + starter relay

electronic dual ignition system

ignition cover

R.F.I. suppression

regulator rectifier 965347

2 carburetors

expansion tank 922666

exhaust socket in stainless steel

oil filter, oil tank,without tubes

coolant pump and internal coolant hoses

2 sensor for cylinder head temperature 965531

1 sensor for oil temperature

1 oil pressure sensor 10 bar

drive for hydraulic governor (Model 912 S3)

cover for sealing of governor flange (Model 912 S3)

2000 hrs TBO

Options (supplied with the engines):

drive vacuum pump

mechanical tachometer pick-up

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s). For pricing of options please refer to those listed under 912 A Engine Series.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

Based on the proven concept of the ROTAX® 912 S/ULS engines, the BRP-ROTAX® 912is Sport series of four cylinder aircraft engines are offered as non-certified (912 iS2/912 iS3 models) for use in experimental and ultralight aircraft as well as EASA CS-E certified (912iSc2/912iSc3 models). For the non-certified models please see the separate product presentation.

The BRP-ROTAX® 912is Sport engine series offer all well known advantages of the ROTAX® 4-stroke engine series complemented by additional features such as the engine management system. The complete package presents the latest technology in the aircraft engine industry and enhances the flying and ownership experience of pilots.  They feature a TBO (time between overhauls) of 2,000 hours.

The BRP-ROTAX® model 912iSc is suitable for aircraft with fixed pitch propeller while the model 912iSc3, for constant speed propeller aircraft, is the same as 912iSc2  additionally with drive for hydraulic governor & cover for sealing of governor flange.

912iSc /912 iSc3 Engine Features:

Performance: 72,0 kw a 5500 1/min, 73,5 kw a 5800 1/min (max 5 min.)

Four cylinder engine,

liquid cooled cylinder heads,air-cooled cylinders,

Engine Electronic Ignition

integrated reduction gearbox i = 2,43

slipper clutch for reduction gearbox

electric starter + starter relay

engine control unit (ECU)

double elecrtonic system with two voltage regulators

double electronic fuel injection system

expansion tank 922668

exhaust socket in stainless steel

oil filter, oil tank, without tubes

airbox

drive for hydraulic governor (Model 912 iSc3)

cover for sealing of governor flange (Model 912 iSc3)

2000 hrs TBO

Options (supplied with the engines):

Drive vacuum pump

Air guide baffle  installed

Exhaust system complete installed

2 electrical fuel pumps

engine ring mount

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s). For pricing of options please refer to those listed under 912 iS Engine Series.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

Based on the proven concept of the ROTAX® 912 S/ULS engines, the BRP-ROTAX® 912is Sport series of four cylinder aircraft engines are offered as non-certified (912 iS2/912 iS3 models) for use in experimental and ultralight aircraft as well as EASA CS-E certified (912iSc2/912iSc3 models). For the certified models please see the separate product presentation.

The BRP-ROTAX® 912is Sport engine series offer all well known advantages of the ROTAX® 4-stroke engine series complemented by additional features such as the engine management system. The complete package presents the latest technology in the aircraft engine industry and enhances the flying and ownership experience of pilots.  They feature a TBO (time between overhauls) of 2,000 hours.

The BRP-ROTAX® model 912 iS2 is suitable for aircraft with fixed pitch propeller while model 912 iS3, for constant speed propeller aircraft, is the same as 912 iS2 additionally with drive for hydraulic governor & cover for sealing of governor flange. For additional information please refer to the respective engine presentations and the supplied documentation.

912is /912 iS3 Engine Features:

Performance: 72,0 kw a 5500 1/min, 73,5 kw a 5800 1/min (max 5 min.)

liquid cooled cylinder heads, air-cooled cylinders

integrated reduction gearbox i = 2,43

slipper clutch for reduction gearbox

electric starter + starter relay

engine control unit (ECU)

double electronic system with two voltage regulators

double electronic fuel injection system

expansion tank 922668

exhaust socket in stainless steel

oil filter, oil tank, without tubes

airbox

drive for hydraulic governor (Model 912 iS3)

cover for sealing of governor flange (Model 912 iS3)

2000 hrs TBO

Options (supplied with the engines):

Drive vacuum pump

Air guide baffle P/N 975795 installed

Exhaust system complete installed

2 electrical fuel pumps

engine ring mount

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s).

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

BRP-ROTAX® 912 F Series are four cylinder aircraft engines certified according to FAR-33.  Model 912 F is suitable for fixed pitch propeller while model 912 F3 for constant speed propeller is the same as 912 F additionally with drive for hydraulic governor & cover for sealing of governor flange. For additional information please refer to the supplied documentation.

912 F/F3 Engine Features:

Performance: 58,0 kw at 5500 1/min, 59,6 kw at 5800 1/min (max 5 min.)

four cylinder engine

liquid cooled cylinder heads,aircooled cylinders

integrated reduction gearbox i = 2,27 or option on request i = 2,43

slipper clutch for reduction gearbox

electric starter standard + starter relay

electronic dual igniction system

igniction cover

R.F.I. suppression

regulator rectifier 965347

2 carburetors

expansion tank 922666

exhaust socket in stainless steel

oil filter, oil tank,without tubes

coolant pump and internal coolant hoses

2 sensor for cylinder head temperature 965531

1 sensor for oil temperature

1 oil pressure sensor 10 bar

drive for hydraulic governor (Model 912 F3)

cover for sealing of governor flange (Model 912 F3)

2000 hrs TBO

Options (supplied with the engines):

drive vacuum pump

mechanical tachometer pick-up

integration for electric starter large (HD- high duty)

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s). For pricing of options please refer to those listed under 912 A Engine Series.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

BRP-ROTAX® 912 A Series are JAR22 certified four cylinder aircraft engines. Model 912 A2 is suitable for fixed pitch propeller while model 912 A3 for constant speed propeller is the same as 912 A2 additionally with drive for hydraulic governor & cover for sealing of governor flange. For additional information please refer to the supplied documentation.

912 A2/A3 Engine Features:

Four cylinder engine

Performance: 58,0 kw at 5500 1/min, 59,6 kw at 5800 1/min (max 5 min.)

liquid cooled cylinder heads,aircooled cylinders

integrated reduction gearbox i = 2,27

or option on request i = 2,43

slipper clutch for reduction gearbox

electric starter standard + starter relay

electronic dual ignition system

ignition cover

R.F.I. suppression

regulator rectifier 965349

2 carburetors

expansion tank 922666

exhaust socket in stainless steel

oil filter, oil tank,without tubes

coolant pump and internal coolant hoses

2 sensor for cylinder head temperature 965531

1 sensor for oil temperature

1 oil pressure sensor 10 bar

drive for hydraulic governor (Model 912 A3)

cover for sealing of governor flange (Model 912 A3)

2000 hrs TBO

Options (supplied with the engines):

drive vacuum pump

mechanical tachometer pick-up

integration for electric starter large (HD- high duty)

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s).

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft. They form part of  BRP-Powertrain GmbH & Co. KG product portfolio which also includes engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles & carts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

BRP-ROTAX® 582 MOD. 99 (65 hp) is a two stroke non certified engine for experimental and ultralight aircraft with 300 hrs TBO. This engine is widely used and well accepted in the market for its robustness and easy maintenance.

For additional information please refer to the supplied documentation.

582 MOD. 99 Engine Features:

2 stroke non certified engine with dual independent breakerless, magneto capacitor discharge ignition (CDI) systems

with:

BING carburetor

fuel pump (big)

rewind starter

oil tank for rotary valve drive

exhaust system

integrated water pump

thermostat

hidro vibration damper

Options (supplied with the engines):

Gearbox Version E (with integrated electric starter) P/N:300005262-5003-5347-5004 for 503, 582

suitable for a mass moment of inertia of the propeller up to max 6000 kgcm2

reduction ratio i=2,62/3,0/3,47/4,0

Gearbox Version B P/N:300002258 for 447, 503, 582 (This option is no longer available)

suitable for a mass moment of inertia of the propeller up to max 3000 kgcm2

reduction ratio i=2,58

NOTE: Options are additionally charged and must be specified at the time of ordering. They can only be ordered with the respective engine(s).

ROTAX® aircraft engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Sealing parts such as o-rings, gasket rings, washers and other parts are used in BRP-ROTAX® aircraft engines. They are offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.

ROTAX® aircraft  engines form part of the product portfolio  of BRP-Powertrain GmbH & Co. KG which develops and manufactures engines for snowmobiles, watercrafts, boats, roadsters, all-terrain and side-by-side vehicles, motorcycles, carts, and aircrafts.

BRP-ROTAX® product range includes certified and non certified internal combustion engines, parts and accessories for light and ultralight aircraft.

Main jets are carburetor parts intended for use in BRP-ROTAX® aircraft engines. They come in different sizes and offered as certified or non certified parts from the manufacturer. Non certified parts can be used in ultralights or other aircraft not requiring certification of parts for their installation. Certified parts are designated by the letters "CERT" in the product reference number (SKU).

Aircraft engine  parts are subject to changes from time to time. Some parts may be no longer available or replaced by others with different part numbers. Listed BRP-ROTAX® engine parts do not imply their current availability or suitability for your engine application. Always consult the most recent Illustrated Part Catalogs (IPCs) or other documentation available from the manufacturer for the correct part number before ordering.
