A. RAYMOND TINNERMAN® & PALNUT® (aka PAL) of TINNERMAN PALNUT ENGINEERED PRODUCTS, INC. are leading brands in specialty clip-type fasteners including the world's largest selection of spring steel, stainless steel, and plastic engineered fasteners. Their fasteners replace traditional fastening methods with innovative solutions combining aesthetics and functionality. They are quick and easy to install, and do not require mounting tools.

TINNERMAN® spring steel nuts (aka speed or sheet metal nuts) are self-retaining fasteners serving the functions of both a lock washer and a nut for an easy & fast attachment of mating panels. Offered in different shapes (e.g. Flat U, J) styles & finishes they can be used as both blind and front mounting attachments without required special tools, skills or equipment, removed and reused. Riveting, welding, clinching, staking and other secondary fastening devices are eliminated.

Flat type (NAS 446) TINNERMAN® nuts are used to replace threaded nuts, lock washers, and spanner washers weighting less than other types of self-locking aircraft fasteners. Designed to fit standard AN530-AN531 type B sheet metal screws only. Can be applied faster, easier, and are vibration resistant. Provide maximum holding power at minimum cost per fastener. Turned-up ends prevent scoring of surfaces.

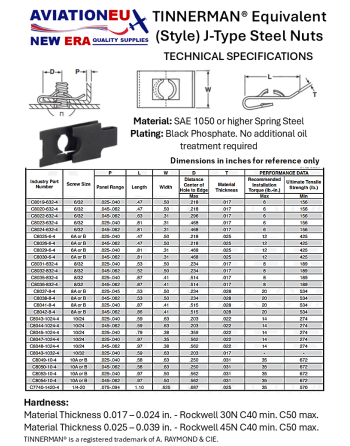

J-type TINNERMAN® nuts press easily into self-retained position over panel edges or in center-panel locations. Ideally suited for blind assembly or hard-to-reach installations. Offer floating alignment to speed production and and lessen rejections. Can be applied after painting or porcelainizing panels eliminating the need for masking or retaping operations.

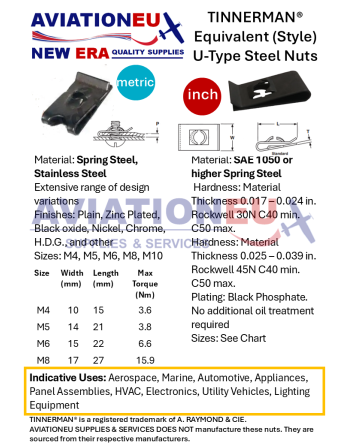

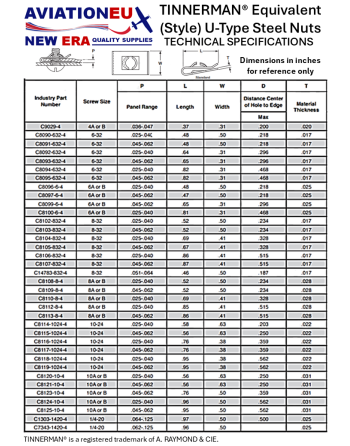

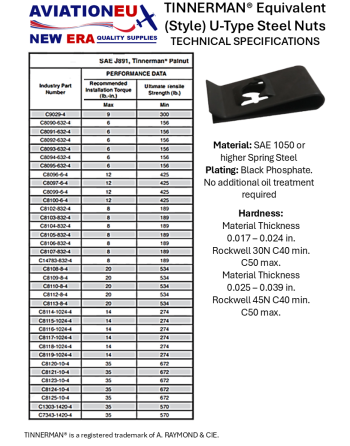

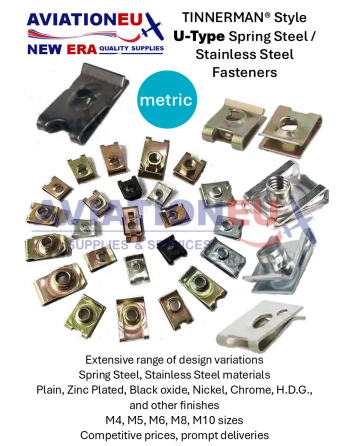

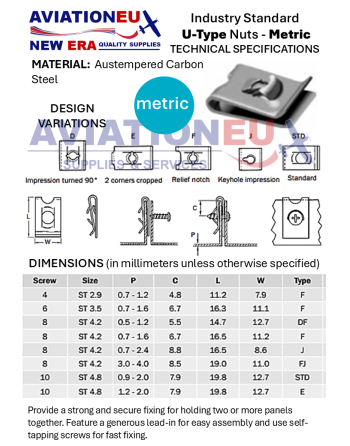

U-Type TINNERMAN® nuts (NAS396 Series), offered in U-Shaped and U-Nut Tapped Barrel styles, are made of spring steel with phosphate-coated with three coats of olive drab paint finish unless otherwise specified. Designed to fit standard AN530-AN531 type B sheet metal screws only. Available in different screw sizes & intended for use in many non-structural applications including appliances, panel assemblies, HVAC, automotive, electronics, aerospace, marine, utility vehicles & lighting equipment. Product Features: vibration proof, easy installation, no special tools, easily disassembled, reusable, used in place of clinch or weld nuts, correct misaligned mounting holes, no masking or retaping, retain holding power, corrosion proof, won’t freeze on threads.

Sourced from their respective manufacturers OEM parts of TINNERMAN® fasteners or their equivalents (separately listed) are offered in pieces but also in convenient packs as part of our own labelled (AVIATIONEU NEW ERA) product lines with a specified number of fasteners of the respective part number per pack indicated after the letters "PK" in our product reference number (SKU). Please refer to the Product Description Section for an indicative list of available packs.

Self-locking nuts (aka lock nuts) are widely used in applications in which motion or vibration can cause fasteners to become loose. Lock nuts conforming to DIN 980 stanard are all metal prevailing torque, hexagonal nuts and they  are available in two types, DIN 980 V-type (DIN980/V) with a distorted thread and DIN 980 M-type ((DIN980/M) with an embedded metal locking plate.

In DIN 980 V-type distorted thread nuts, certain teeth of the nut thread are deformed through die stamping resulting in the inner diameter of the nut thread being slightly smaller than the outer diameter of the bolt thread. Therefore, the friction force between the threads after the nut is tightened is far greater than that of the common thread, which can play an effective role in preventing loosing.

In DIN 980 M-type nuts, the nut is embedded with a metal locking plate after heat treatment. The inner diameter of the metal plate is slightly smaller than the outer diameter of the bolt thread. After the nut is tightened, the metal plate blocks the bolt thread, thus preventing loosening.

DIN 980 lock nuts must be tightened with tools (such as ratchet spanner) during installation. Although they can be can be used repeatedly, frequent disassemblies and installations are not recommended as the locking torque of the nut will decrease significantly.

Depending on the producer, DIN 980 lock nuts are manufactured in different metric thread sizes (M3 ~ M39) from carbon steel in various strength classes (such as  4, 6, 8, 10 and 12) or stainless steel in grades 70 and  80. They are offered in various finishes such as plain, black, zinc/yellow plated, H.D.G, and chrome plated.

Both DIN980/V and DIN980/M lock nuts are offered as part of our own (AVIATIONEU NEW ERA) product lines. Sourced from quality manufactuurers they are competitively priced and can be supplied in carbon steel or stainless steel, in different grades, metric thread sizes  and finishes .

For additional information please consult the supplied documentation.

Notes:

Different metric thread sizes are designated by the letter "M" indicating the nut's clearance diameter in mm.

Nut thread pitch indicates the distance between threads measured along the length of the nut expressed in mm.

In the case of stainless steel lock nuts, the stainless steel grades are denoted with codes such as A2 or A4 and dash numbers indicating the minimum tensile strength to be met by the material. For example, A2-70 relates to a lock nut made from 304 stainless steel with a minimum tensile strength of 700N/mm² (MPa).

Anchor nuts (aka nutplates or anchor plates) are terms used interchangeably and relate to stamped sheet metal fasteners with an internally threaded tube and a plate with two clearance holes for rivets. They are used in blind mounted panel applications in aerospace and other industrial sectors where hex nuts cannot be used or an attached nut is required for ease of maintenance.

Anchor nuts can be Fixed or Floating, the latter being easier to use due to their built-in nut (threaded hole) able to "float" slightly thus providing a convenient connection point for threaded rods, such as bolts, from the backside. In the case of Fixed anchor nuts, the built-in nut is static (i.e. without the capability to “float”) and the threaded rod must be positioned perfectly over the hole. Self-locking anchor nuts are those with a built-in locking mechanism preventing them from loosening over time from vibrations. They are extensively used in aerospace, automotive, and construction industries.

Depending on their intended application, nutplates conform to different military, aerospace, ISO or other industrial standards such as the German DIN, U.S. (ASME & ASTM, IFI, ANSI), British BS, Japanese JIS and others. They are offered as OEM parts under their respective brands or under our own labelled (AVIATIONEU NEW ERA) product lines intended as cost-effective alternatives to the respective OEM products. Listed in accordance with their standard of compliance, Fixed and Floating nutplates come in different materials (such as steel or CRES & finishes),  in single/double lug configurations and Metric ISO οr Unified thread sizes. There is currently no U.S. Military Standard (MS) specification for Metric nutplates.Depending on the selected product and availability, nutplates can be supplied with a dry film lube specified by the letter "L" in the respective part number. Those with countersunk rivet holes are specified by the letter "K" at the end of the part number.

Sourced from quality manufacturers, AVIATIONEU NEW ERA floating self-locking, low height two-lug nutplates conform to NASM 21059/21060 Standards superseding the respective MS21059/MS21060 without change in part numbers. They can be riveted to the back of a stationary panel using pop rivets or solid matching rivets (sold separately) allowing for some misalignment in assembly. NASM 21059 nutplates are made of cadmium plated carbon steel & those of NASM 21060 from corrosion resistant steel (CRES).They feature 125 KSI ultimate tensile strength (Ftu) and can withstand temperatures of 450°F (NASM 21059/21060) or 800°F (NASM 21060 when silver plated). Offered in different dimensions & Unified thread sizes, with plain or countersunk rivet holes & with dry film lubrication for corrosion resistance or without. Supplied in pieces or packs with the number of nuts per pack indicated after the letters "PK" in the product SKU. Appearing prices are in the unit of measurement used each time.

Anchor nuts can be Fixed or Floating, the latter being easier to use due to their built-in nut (threaded hole) able to "float" slightly thus providing a convenient connection point for threaded rods, such as bolts, from the backside. In the case of Fixed anchor nuts, the built-in nut is static (i.e. without the capability to “float”) and the threaded rod must be positioned perfectly over the hole. Self-locking anchor nuts are those with a built-in locking mechanism preventing them from loosening over time from vibrations. They are extensively used in aerospace, automotive, and construction industries.

Depending on their intended application, nutplates conform to different military, aerospace, ISO or other industrial standards such as the German DIN, U.S. (ASME & ASTM, IFI, ANSI), British BS, Japanese JIS and others. They are offered as OEM parts under their respective brands or under our own labelled (AVIATIONEU NEW ERA) product lines intended as cost-effective alternatives to the respective OEM products. Listed in accordance with their standard of compliance, Fixed and Floating nutplates come in different materials (such as steel or CRES & finishes),  in single/double lug configurations and Metric ISO οr Unified thread sizes. There is currently no U.S. Military Standard (MS) specification for Metric nutplates. Depending on the selected product and availability, nutplates can be supplied with a dry film lube specified by the letter "L" in the respective part number. Those with countersunk rivet holes are specified by the letter "K" at the end of the part number.

Sourced from quality manufacturers, AVIATIONEU NEW ERA MS21069/MS21070 series nutplates are fixed self-locking, two-lug, reduced rivet spacing low height miniature anchor nuts.  MS21069 series nutplates are made from cadmium plated steel while those of MS21070 series from corrosion resistant steel (CRES). They come in different Unified Thread sizes with plain or countersunk rivet holes on each side,  with or without a dry film lube. Sold in pieces but also in packs where the specified number of nuts per pack is indicated after the letters "PK" in the product reference number (SKU). Appearing prices are always for the units of measurement used each time. Matching rivets are sold separately.

For additional information please refer to the supplied documentation or contact us.

Anchor nuts (aka nutplates or anchor plates) are terms used interchangeably and relate to stamped sheet metal fasteners with an internally threaded tube and a plate with two clearance holes for rivets. They are used in blind mounted panel applications in aerospace and other industrial sectors where hex nuts cannot be used or an attached nut is required for ease of maintenance.

Anchor nuts can be Fixed or Floating, the latter being easier to use due to their built-in nut (threaded hole) able to "float" slightly thus providing a convenient connection point for threaded rods, such as bolts, from the backside. In the case of Fixed anchor nuts, the built-in nut is static (i.e. without the capability to “float”) and the threaded rod must be positioned perfectly over the hole. Self-locking anchor nuts are those with a built-in locking mechanism preventing them from loosening over time from vibrations. They are extensively used in aerospace, automotive, and construction industries.

Depending on their intended application, nutplates conform to different military, aerospace, ISO or other industrial standards such as the German DIN, U.S. (ASME & ASTM, IFI, ANSI), British BS, Japanese JIS and others. They are offered as OEM parts under their respective brands or under our own labelled (AVIATIONEU NEW ERA) product lines intended as cost-effective alternatives to the respective OEM products. Listed in accordance with their standard of compliance, Fixed and Floating nutplates come in different materials (such as steel or CRES & finishes),  in single/double lug configurations and Metric ISO οr Unified thread sizes. There is currently no U.S. Military Standard (MS) specification for Metric nutplates. Depending on the selected product and availability, nutplates can be supplied with a dry film lube specified by the letter "L" in the respective part number. Those with countersunk rivet holes are specified by the letter "K" at the end of the part number.

Sourced from quality manufacturers, AVIATIONEU NEW ERA MS21078 series nutplates are fixed self-locking, two-lug nutplates with elastic insert and plain rivet holes.  Made from cadmium plated steel they are available in different Unified thread sizes and replace respective AN366F series nutplates.  Sold in pieces but also in packs where the specified number of nuts per pack is indicated after the letters "PK" in the product reference number (SKU). Appearing prices are always for the units of measurement used each time. Matching rivets are sold separately.

For additional information please refer to the supplied documentation or contact us.

NAS parts are most well-known for state-of-the-art, high-strength, precision fasteners, electrical connectors, splices and terminations, rod end bearings, and many other types of hardware and components. The NA prefix relates to metric standards.

NAS 1794 Series self-locking counter bore replaceable nut elements are produced by various manufacturers. They are offered as OEM parts or parts falling under our own labelled (AVIATIONEU NEW ERA) product lines in different materials, finishes, thread sizes and dimensions in inches. Please refer to the supplied documentation.

Anchor nuts (aka nutplates or anchor plates) are terms used interchangeably and relate to stamped sheet metal fasteners with an internally threaded tube and a plate with two clearance holes for rivets. Initially designed and still extensively used in aerospace applications, they are today also used in automotive, motorsports, and other industries in blind mounted panel applications where hex nuts cannot be used or an attached nut is required for ease of maintenance. They can be Fixed or Floating, the latter being easier to install due to their built-in nut (threaded hole) able to "float" slightly thus providing a convenient connection point for threaded rods, such as bolts, from the backside. In the case of Fixed anchor nuts, the built-in nut is static (i.e. without the capability to “float”) and the threaded bolt must be positioned perfectly over the hole. Self-locking anchor nuts are those with a built-in locking mechanism preventing them from loosening over time from vibrations.

Anchor nuts are offered in Imperial (in.) and Metric thread sizes, in different materials (e.g. Carbon Steel, Steel alloys, CRES), finishes such as Cadmium or Cadmium Free Zinc Nickel platings (compliant to EU Regulations) with or without dry film lubrication. They come in various styles/configurations (e.g. with one or two lugs, full size or miniatures, countersunk, corner, right-angled bodies, etc.). They conform to different U.S., European and international standards such as the US Military MS and NASM, German DIN LN, French AFNOR NF, British BS, ISO and others.

Depending on the selected nutplate, aerospace anchor nuts are produced by different manufacurers, such as HOWMET AEROSPACE (formerly ARCONIC) or PAOLO ASTORI, and others, and offered as respective OEM parts or as parts of our own labelled (AVIATIONEU NEW ERA) product lines in the case of those used in industrial applications. Sold in pieces or packs of specified number of anchor nuts per pack indicated after the letters "PK" in the product SKU.

Anchor nuts manufactured i.a.w DIN LN 29681 standard are Metric self-locking floating one-lug anchor nuts. Depending on the manufactuer, they are made from Steel Alloys (25CrMo4,DIN 1.7214.4/1.7220.3, 25CD4, SAE 4135/ 4140, AISI 4135/4137) with Cadmium plating & MoS2 low friction coating. Suitable for use in temperatures up to 235°C. Their counterparts of DIN LN29668 Standard are made from Incoloy Alloy® A-286 (aka A286 Alloy Stainless Steel, an austenitic superalloy) and can be used for temperatures  up to 425 °C. Both feature a tensile strength of 900 MPa. Offered in different Metric thread sizes from HOWMET AEROSPACE (separately listed), PAOLO ASTORI and others as OEM parts. Depending on the part number they are sold mostly in pieces but also in packs where the number of anchor nuts per pack is indicated after the letters "PK" in the product SKU.

For additional information please refer to the supplied documentation or contact us.

Anchor nuts (aka nutplates or anchor plates) are terms used interchangeably and relate to stamped sheet metal fasteners with an internally threaded tube and a plate with two clearance holes for rivets. They are used in blind mounted panel applications in aerospace and other industrial sectors where hex nuts cannot be used or an attached nut is required for ease of maintenance.

Anchor nuts can be Fixed or Floating, the latter being easier to use due to their built-in nut (threaded hole) able to "float" slightly thus providing a convenient connection point for threaded rods, such as bolts, from the backside. In the case of Fixed anchor nuts, the built-in nut is static (i.e. without the capability to “float”) and the threaded rod must be positioned perfectly over the hole. Self-locking anchor nuts are those with a built-in locking mechanism preventing them from loosening over time from vibrations. They are extensively used in aerospace, automotive, and construction industries.

Depending on their intended application, nutplates conform to different military, aerospace, ISO or other industrial standards such as the German DIN, U.S. (ASME & ASTM, IFI, ANSI), British BS, Japanese JIS and others. They are offered as OEM parts under their respective brands or under our own labelled (AVIATIONEU NEW ERA) product lines intended as cost-effective alternatives to the respective OEM products. Listed in accordance with their standard of compliance, Fixed and Floating nutplates come in different materials (such as steel or CRES & finishes),  in single/double lug configurations and Metric ISO οr Unified thread sizes. There is currently no U.S. Military Standard (MS) specification for Metric nutplates.Depending on the selected product and availability, nutplates can be supplied with a dry film lube specified by the letter "L" in the respective part number. Those with countersunk rivet holes are specified by the letter "K" at the end of the part number.

Sourced from quality manufacturers, AVIATIONEU NEW ERA MS21047 series nutplates are fixed self locking elastic insert 2-lug anchor nuts made of cadmium plated steel with nylon insert and plain rivet holes. They replace those of AN366F series and are available in different Unified thread sizes to meet application requirements and replace respective nut plates. Sold in pieces but also in packs where the specified number of nuts per pack is indicated after the letters "PK" in the product reference number (SKU). Appearing prices are always for the units of measurement used each time. Matching rivets are sold separately.

For additional information please refer to the supplied documentation or contact us.

Anchor nuts (aka nutplates or anchor plates) are terms used interchangeably and relate to stamped sheet metal fasteners with an internally threaded tube and a plate with two clearance holes for rivets. Initially designed and still extensively used in aerospace applications, they are today also used in automotive, motorsports, and other industries in blind mounted panel applications where hex nuts cannot be used or an attached nut is required for ease of maintenance. They can be Fixed or Floating, the latter being easier to install due to their built-in nut (threaded hole) able to "float" slightly thus providing a convenient connection point for threaded rods, such as bolts, from the backside. In the case of Fixed anchor nuts, the built-in nut is static (i.e. without the capability to “float”) and the threaded bolt must be positioned perfectly over the hole. Self-locking anchor nuts are those with a built-in locking mechanism preventing them from loosening over time from vibrations.

Anchor nuts are offered in Imperial (in.) and Metric thread sizes, in different materials (e.g. Carbon Steel, Steel alloys, CRES), finishes such as Cadmium or Cadmium Free Zinc Nickel platings (compliant to EU Regulations) with or without dry film lubrication. They come in various styles/configurations (e.g. with one or two lugs, full size or miniatures, countersunk, corner, right-angled bodies, etc.). They conform to different U.S., European and international standards such as the US Military MS and NASM, German DIN LN, French AFNOR NF, British BS, ISO and others.

Depending on the selected nutplate, aerospace anchor nuts are produced by different manufacurers, such as HOWMET AEROSPACE (formerly ARCONIC) or PAOLO ASTORI, and others, and offered as respective OEM parts or as parts of our own labelled (AVIATIONEU NEW ERA) product lines in the case of those used in industrial applications. Sold in pieces or packs of specified number of anchor nuts per pack indicated after the letters "PK" in the product SKU.

Anchor nuts manufactured i.a.w DIN LN 29679 standard are Metric self-locking floating two-lug low profile anchor nuts. Depending on the manufactuer, they are made from Steel Alloys (25CrMo4, DIN 1.7214.4/1.7220.3, 25CD4, SAE 4135/4140) with Cadmium or Zinc-Nickel plating & MoS2 low friction coating. Suitable for temperatures up to 235°C. Feature a tensile strength of 1100 MPa. Their counterparts of DIN LN 65016 & LN 29693 Standard  Standard (*) are made from Incoloy Alloy® A-286 (aka A286 Alloy Stainless Steel, an austenitic superalloy) and can be used for temperatures  up to 425 °C. Offered in different Metric thread sizes from HOWMET AEROSPACE (separately listed), PAOLO ASTORI and others as OEM parts. Depending on the part number they are sold mostly in pieces but also in packs.

(*) LN 65016/29693 Standard is inactive for new design.

For additional information please refer to the supplied documentation or contact us.

A nylon-insert lock nut (also referred to as elastic stop nut, nut with a non-metallic insert  or nyloc nut) is a type of locknut with a nylon collar that increases friction on the screw thread. Nyloc nuts are widely used in products and structures subject to dynamic loads where motion or vibration can cause fasteners to become loose. Their design prevents the connection from loosening without the need for additional lock washers.The nylon insert is situated at the top of the nut and when tightened locks against the thread. The insert deforms elastically over the threads as tightening pressure is applied. The insert locks the nut against the screw as a result of friction, caused by the radial compressive force resulting from the deformation of the nylon. Nyloc nuts retain their locking ability up to 250 °F.

Metric hexagonal nylon-insert self-locking nuts are high anti vibration and anti loose fastening parts conforming to DIN 982 and DIN 985 standards. Different metric thread sizes are designated by the letter "M" indicating the nut's clearance diameter in mm. The main difference between DIN 982 & DIN 985 is the height of the nuts for same thread diameter. DIN 982 lock nuts (often termed as “P” Type) are taller than DIN 985 (aka “T” Type) ones. Lower profile  DIN 985 are used in places where height is limited, while standard height DIN 982 nuts are used in connections where increased strength and fixation are required. In addition, the size range of DIN 985 nuts is wider than that of DIN 982. DIN 985 Nylon self-locking nuts can be used in various mechanical and electrical products with temperature from – 50 ℃ to 100 ℃. Due to their significantly higher anti vibration and anti loose performance than other anti loose devices, their application ranges from  tanks, mining, agricultural, textile &  various kinds of machinery to automobiles and aerospace.

Both DIN 982 and DIN 985 lock nuts are offered as part of our own (AVIATIONEU NEW ERA) product lines. Sourced from quality manufacturers they are competitively priced and can be supplied in different materials (Steel, Brass, Carbon Steel, Alloy Steel & Stainless Steel), grades (Class 5, 6, 8 or 10), metric thread diameters (typically M3/3 mm to M30/30 mm or up to 48 mm for DIN 985 nuts), thread pitches and finishes (natural, electro zinc-plated, chrome plated, black oxide and others). Sold in pieces or packs with number of pieces per pack indicated after "PK" designation in product SKU.

Notes:

Nut thread pitch indicates the distance between threads measured along the length of the nut expressed in mm.

In the case of stainless steel lock nuts, the stainless steel grades are denoted with codes such as A2 or A4 and dash numbers indicating the minimum tensile strength to be met by the material. For example, A2-70 relates to a nylon-insert lock nut made from 304 stainless steel with a minimum tensile strength of 700N/mm² (MPa).

Anchor nuts (aka nutplates or anchor plates) are terms used interchangeably and relate to stamped sheet metal fasteners with an internally threaded tube and a plate with two clearance holes for rivets. They are used in blind mounted panel applications in aerospace and other industrial sectors where hex nuts cannot be used or an attached nut is required for ease of maintenance.

Anchor nuts can be Fixed or Floating, the latter being easier to use due to their built-in nut (threaded hole) able to "float" slightly thus providing a convenient connection point for threaded rods, such as bolts, from the backside. In the case of Fixed anchor nuts, the built-in nut is static (i.e. without the capability to “float”) and the threaded rod must be positioned perfectly over the hole. Self-locking anchor nuts are those with a built-in locking mechanism preventing them from loosening over time from vibrations. They are extensively used in aerospace, automotive, and construction industries.

Depending on their intended application, nutplates conform to different military, aerospace, ISO or other industrial standards such as the German DIN, U.S. (ASME & ASTM, IFI, ANSI), British BS, Japanese JIS and others. They are offered as OEM parts under their respective brands or under our own labelled (AVIATIONEU NEW ERA) product lines intended as cost-effective alternatives to the respective OEM products. Listed in accordance with their standard of compliance, Fixed and Floating nutplates come in different materials (such as steel or CRES & finishes),  in single/double lug configurations and Metric ISO οr Unified thread sizes. There is currently no U.S. Military Standard (MS) specification for Metric nutplates. Depending on the selected product and availability, nutplates can be supplied with a dry film lube specified by the letter "L" in the respective part number. Those with countersunk rivet holes are specified by the letter "K" at the end of the part number.

Sourced from quality manufacturers, AVIATIONEU NEW ERA MS21073/MS21074 series nutplates are fixed self-locking, low height corner, miniature anchor nuts. Those included in MS21073 series are manufactured from cadmium plated carbon steel while the MS21074 nutplates are produced from corrosion resistant steel (CRES). They are available in different Unified thread sizes, with plain or countersunk rivet holes on each side and come with or without a dry film lube. Sold in pieces but also in packs where the specified number of nuts per pack is indicated after the letters "PK" in the product reference number (SKU). Appearing prices are always for the units of measurement used each time. Matching rivets are sold separately.

For additional information please refer to the supplied documentation or contact us.

Anchor nuts (aka nutplates or anchor plates) are terms used interchangeably and relate to stamped sheet metal fasteners with an internally threaded tube and a plate with two clearance holes for rivets. They are used in blind mounted panel applications in aerospace and other industrial sectors where hex nuts cannot be used or an attached nut is required for ease of maintenance.

Anchor nuts can be Fixed or Floating, the latter being easier to use due to their built-in nut (threaded hole) able to "float" slightly thus providing a convenient connection point for threaded rods, such as bolts, from the backside. In the case of Fixed anchor nuts, the built-in nut is static (i.e. without the capability to “float”) and the threaded rod must be positioned perfectly over the hole. Self-locking anchor nuts are those with a built-in locking mechanism preventing them from loosening over time from vibrations. They are extensively used in aerospace, automotive, and construction industries.

Depending on their intended application, nutplates conform to different military, aerospace, ISO or other industrial standards such as the German DIN, U.S. (ASME & ASTM, IFI, ANSI), British BS, Japanese JIS and others. They are offered as OEM parts under their respective brands or under our own labelled (AVIATIONEU NEW ERA) product lines intended as cost-effective alternatives to the respective OEM products. Listed in accordance with their standard of compliance, Fixed and Floating nutplates come in different materials (such as steel or CRES & finishes),  in single/double lug configurations and Metric ISO οr Unified thread sizes. There is currently no U.S. Military Standard (MS) specification for Metric nutplates. Depending on the selected product and availability, nutplates can be supplied with a dry film lube specified by the letter "L" in the respective part number. Those with countersunk rivet holes are specified by the letter "K" at the end of the part number.

Sourced from quality manufacturers, AVIATIONEU NEW ERA MS21055/MS21056 series nutplates are fixed self-locking, low height corner nut plates. MS21055 series nutplates are manufactured from cadmium plated carbon steel while those in MS21056 series are produced from corrosion resistant steel (CRES). They are available in different Unified thread sizes, with plain or countersunk rivet holes on each side and come with or without a dry film lube. Sold in pieces but also in packs where the specified number of nuts per pack is indicated after the letters "PK" in the product reference number (SKU). Appearing prices are always for the units of measurement used each time. Matching rivets are sold separately.

For additional information please refer to the supplied documentation or contact us.

These AVIATIONEU NEW ERA hexagon locking nuts comform with ASTM A194 standard specification for carbon, alloy and stainless steel nuts used in high pressure, temperature or other special-purpose applications. They can be indicatively used in the process industries, such as petroleum and chemicals for pressure vessels, valves, flanges, and fittings. Sourced by certified manufacturers these nuts are competitively priced and offered in metric (M3 - M36 diameter) or inch (3/16" - 1.1/2") sizes, different thread types and grade range to meet respective design, service conditions, mechanical properties, and high temperature requirements. Please refer to ASTM A194  specification table for additional information. Sold in packs of 100 pcs each.  Appearing price is for reference only per pack. Please contact us for a quotation.

NAFCO USA is a manufacturer of self-locking nuts as well as different types of nutplates and press-in inserts and dome nuts. Their fasteners conform with National Aerospace Standards (NAS) developed and maintained by the U.S. Aerospace Industries Association (AIA) and served as the foundation for the development of aircraft, spacecraft, watercraft, ground vehicles, machinery, and electronics. The NA prefix in the part numbers of the fasteners relates to metric standards.

In the world of aerospace fasteners NAFCO USA has built a reputation for quality, affordable, and innovative products. NAFCO USA’s stressnut rivetless nutplates, are no exception. Their stressnut rivetless nutplates meet and exceed the requirements of aerospace standard NASM25027 and offer high resistance to push-out and torque. In addition, the rivetless design eliminates the need for additional drilled holes and rivet installation, allowing faster installation times. Time savings on installation translates into reduced labor costs. Other Features Include:

Increase substrate fatigue life up to 300%.

Installed with convenient split sleeve tooling.

Replaceable nut elements (NAS1794 standard).

Inch or metric unit versions.

Sealed or unsealed versions.

Do not require gang channels.

Reduced profile/weight versions available.

The NAS1423/NAS509 series hexagon nuts fall into the jam (aka check or thin) nut category. Jam nuts are a style of nut that features a low profile, typically half the height of standard nuts and diagonal drilled holes. Their minimal thickness allows them to fit in tight spaces where ordinary nuts might not fit. NAS1423 series jam nuts are manufactured from 4130/4340 cadmium plated steel alloy or unplated A 286 stainless steel (designated by the letter "C" in the part number). NAS509 series jam nuts NAS1423 series jam nuts are manufactured from 4130/4340 cadmium plated steel alloy or corrosion resistant steel passivated (designated by the letter "C" in the part number).

Sourced from quality producers, the NAS1423/NAS509 Series check nuts are offered as part of our own label (AVIATIONEU NEW ERA) product lines with Right or Left  Hand threads in different sizes in inches. Letters "R" and "L" in the end of the product reference number (SKU) indicate a Right or Left Hand thread respectively. Sold in pieces or packs of specified nuts per pack indicated after the letters "PK" in the product reference number (SKU).

For additional information please consult the supplied documentation or contact us.

Steel Nut Specifications:

Material - 4130 Alloy Steel Per AMS-S-6758

Finish - Cad Type II, Class 2 Per AMS-QQ-P-416

Heat Treat- 150 KSI Min Per AMS2759

Hardness - 34-38 HRC

Thread Series & Class: UNJF 3B (Unified National Fine thread series with external thread controlled root radius)

Note: UNJ, UNJC, UNJF and UNJEF thread series are almost identical to the respective UN, UNC, UNF, and UNEF threads except that the external J thread has a much larger root radius than the standard UN threads and inspection must be performed on this element. The Special UNJ threads are designated by the nomenclature UNJS. J screw threads feature a root radius which improves the tensile stress area of the fastener and helps to reduce the stress concentration factor in the thread thus making the thread stronger. Additionally, the requirement for high strength is achieved with 3A and 3B classes of fit. All pitch diameters and tolerances are based on the Unified Inch Standard.

National Aerospace Standards (NAS) are voluntary standards developed and maintained by committees and working groups of subject matter experts from member companies of the U.S. Aerospace Industries Association (AIA). These standards have served as the foundation for the development of aircraft, spacecraft, watercraft, ground vehicles, machinery, and electronics.

NAS parts are most well-known for state-of-the-art, high-strength, precision fasteners, electrical connectors, splices and terminations, rod end bearings, and many other types of hardware and components. The NA prefix relates to metric standards.

NAS 1791 and 1792 Series fasteners are Floating Self-Locking Nut Plates(*) with variable counterbore replacement nut elements and as supplied in one-lug (NAS 1792) or two-Lug (NAS 1791) configurations. Both form part of NAS high-strength, precision fasteners. They are offered in alloy/carbon steel or corrosion resistant (CRES) materials, in different finishes, thread sizes and dimensions in inches. They can be used in applications with 450°F maximum temperature requirement while those from silver plated A286 Stainless Steel can withstand temperatures up to 800°F.

Sourced from quality manufacturers they are offered as OEM parts of their respective manufacturers or as parts of the respective Standard under our own labelled (AVIATIONEU NEW ERA) product lines. Sold in pieces or packs with specified number of anchor nuts per pack as indicated by the number after the letters "PK" in the product reference number (SKU).

For additional information please consult the supplied documentation or contact us.

(*) Also termed as plate nuts, anchor nuts or anchor plates. Appearing lengths in NAS 1791 nut pllates are distance between centers of mounting holes.

HI-SHEAR Fasteners are patented fasteners of HI-SHEAR CORPORATION (Patent Holder), subsidiary of LISI AEROSPACE, a manufacturer of advanced aerospace fasteners and installation equipment used in space, military and commercial vehicles. Depending on the fastener, they are made by quality fastener manufacturers (licensees) in different  countries including but not limited to LISI AEROSPACE companies, HOWMET ALCOA / SIMMONDS / FAIRCHILD, PCC  SPS, and others.

HI-SHEAR nuts and collars are designed to fit with their related HI-LOK™/HI-TIGUE™ and HI-LITE™ pins  (separately presented) forming the respective fastener system. HI-LOK™ nuts and collars are designed to fit HI-LOK™ & HI-TIGUE™ pins. HI-LITE™ nuts and collars are designed to fit HI-LITE™, PULL-IN™, PULL-STEM™ & TAPER HI-LITE™ pins.

With a wide range of shapes, materials and coatings, they are suited for most of structural assemblies and are commonly used in the aerospace industry in tension and shear applications. Collars’ wrenching element is designed to break-away at a controlled preload. It has been tested over time and has proven its reliability when installed with non-torque-controlled tools. Main features of nuts and collars include:

- controlled preload

- wide variety of materials and coatings for installation in all structures

- suitable for shear or tension applications, with captive washer, self-aligning or self-sealing options

- limited access installation, using conventional tooling

- designed with a counterbore to fit nominal and oversized pins

- nuts allow customized torque and preload & low height design for low access areas

Please refer to the supplied documentation for additional information.

AN315/NASM315 Series hex plain nuts are manufactured from steel and cadmium plated per QQ-P-416A, Type II, Class 3, corrosion resistance steel or aluminum alloys. The AN315 nuts have been superseded by NASM315 Series. Similar to common nuts  but with a rugged construction they are designed and built with aviation grade materials and to specific aviation design specifications. They can carry the same high tension load as the AN310 castle nuts and require an auxiliary locking device such as a check nut or lock washer.

Sourced from quality producers, the AN315/NASM315 Series hex plain nuts are offered as part of AVIATIONEU NEW ERA product lines in different thicknesses and thread sizes in inches. The following letters are used to designate specific types of airframe nuts:

"C" before dash number for corrosion resistance steel nuts

"D" before dash number for aluminum-alloy nuts

"L" after dash number for left-hand thread

"R" after dash number for right-hand thread

For additional information please consult the supplied documentation or contact us.

Certification Details:

AN315 (REV. 10) (NOTICE 2)., AIR FORCE-NAVY AERONAUTICAL STANDARD: Nut, Plain, Castellated, Airframe (23 SEP 2002) [S/S BY NASM315]., AN315 REV. 10, dated 29 DECEMBER 1972, is hereby canceled and superseded by NASM315. The Part Identification Number (PIN) for AN315 REV. 10 and the part number for NASM315 are identical. The part numbers have not been changed.
