Stainless steel safety wire furnished in convenient 1 lb. dispensing container. Available in Type 302/304 stainless steel (soft temper) per MS20995.

SAE AISI(*) 1018 (G10180**) (separately presented) & 1020 (G10200**) mild/low carbon steel grades are are iron alloys with basically identical composition. Please refer to the supplied documentation for the comparison of SAE AISI 1018/1020 steel properties and additional information provided at the Product Description section. Technical data of supplied materials should be used ONLY FOR REFERENCE, NOT FOR DESIGN, and any decisions on their use remain entirely at the buyer discretion.

SAE AISI 1020 steel, aka C1020 steel in cold worked condition, is one of the most commonly used plain carbon steels. It is a low hardness and tensile strength carbon steel alloy with Brinell hardness ranging between  119 - 235 and tensile strength between 410 - 790 MPa. It features high machinability, high strength, high ductility and good weldability by most welding processes supporting its use in all industrial sectors. Due to its low carbon content, it is resistant to induction hardening or flame hardening but carburization or carbon nitriding can be applied to achieve a hardness value of more than  Rc65.  Normally used in turned and polished or cold drawn conditions.

Sourced from quality producers, SAE AISI 1020 steel tubes are offered as part of our own branded (AVIATIONEU NEW ERA) product lines. They can be furnished Normalized, Annealed or in other conditions, in different specifications, different shapes (cross sections), round, square, rectangular, etc. and dimensions in inches or millimeters (depending on the supplier) to meet project requirements. In the case of Metric round tubes, they are cold drawn seamless tubes available in different outer diameters and wall thicknesses in mm and pre cut or cut to order lengths in meters or centimeters. Those in inch system  are offered as DOM (Drawn Over a Mandrel***), with outer diameters and wall thicknesses in inches and lenghts in inches or feet.  Although they are welded tubes, the weld line becomes nearly undetectable during the manufacturing process and they are often referred to as seamless. Appearing prices for pre cut tubes are per piece in indicated dimensions.

(*) American Iron & Steel Institute (AISI), Society of Automotive Engineers (SAE).

(**)  Unified Numbering System ( UNS) Number, a designation system for Metals & Alloys.

(***) A process applied to tubing after its initial construction, allowing more exact ID/OD dimensions, a smoother finish, and a better alignment of the crystal lattice structure.

Rivet Pin Gauges from HI-SHEAR CORPORATION,  subsidiary of LISI AEROSPACE, can be used for inspection or measurement of correct grip length of HI-LITE™ / HI-LOK™ rivet pins. Different HI-SHEAR Pin Protrusion Gauges are offered for respective HI-LITE™ / HI-LOK™series pins. HI-SHEAR Grip Gauge Assemblies can be used to measure the “grip length” of HI-LOK™ and HI-LITE™ pins, shear lockbolts, structural screws and bolts. The HI-SHEAR 2-651 Grip Gauge Assembly includes one HI-SHEAR 2-612 Grip Gauge & one HI-SHEAR 2-615 Grip Gauge Slide. The 2-612 Grip Gauge measures in increments 1/16” to 3”(1 mm to 75 mm). Made from spring temper stainless steel, 3/4" x 6-1/4".

Solid shank rivets are relatively low-cost,  permanently installed fasteners used as structural parts in aircraft and other applications where reliability and safety consist a priority.  These rivets are produced in accordance with military and other international standards such as US Army-Navy (AN) standard and Mil-Spec (MS) that followed. AN426/MS20426 and AN470/MS20470 Series rivets are solid aluminum rivets with countersunk head or universal head respectively. Sourced from quality suppliers they are offered as part of our own labelled (AVIATIONEU NEW ERA) product lines. They are  available in different diameters and lengths and sold by the pound (lb). Those designated by the letter "A" in their part numbers are "soft" rivets fabricated from 1100-grade aluminum with a tensile strength of 16,000 PSI while rivets designated by the letters "AD" are fabricated from 2117 aluminum and heat treated to the T4 condition. They have a shear strength of 26,000 PSI and a tensile strength of 38,000 PSI. For additional information please refer to the article on an overview of our fasteners, other supplied documentation, the individual product presentations or contact us.

ATI® TOOLS 100A series (straight drive) and 101A series (offset drive) AN470/MS20470 universal-head cup shaped  rivets are manufactured from S2 high-grade shock-resistant steel and machined in accordance with MIL-STD GGG-R-425. Respective flush head rivets of ATI® TOOLS 100A/101A series are designated by the letter "F" after the series number (i.e. 100AF/101AF respectively. They feature protection with plastic coating to prevent damage during shipment and storage, blended radius between cup and chamfer with no sharp edges, which coin or mar skin, highly polished precision cup, free of machine marks and ridges and chamfered corners. Shank diameter 0.401". Available in different rivet sizes, body diameters and lengths in inches.

Anchor nuts (aka nutplates or anchor plates) are terms used interchangeably and relate to stamped sheet metal fasteners with an internally threaded tube and a plate with two clearance holes for rivets. Initially designed and still extensively used in aerospace applications, they are today also used in automotive, motorsports, and other industries in blind mounted panel applications where hex nuts cannot be used or an attached nut is required for ease of maintenance. They can be Fixed or Floating, the latter being easier to install due to their built-in nut (threaded hole) able to "float" slightly thus providing a convenient connection point for threaded rods, such as bolts, from the backside. In the case of Fixed anchor nuts, the built-in nut is static (i.e. without the capability to “float”) and the threaded bolt must be positioned perfectly over the hole. Self-locking anchor nuts are those with a built-in locking mechanism preventing them from loosening over time from vibrations.

Anchor nuts are offered in Imperial (in.) and Metric thread sizes, in different materials (e.g. Carbon Steel, Steel alloys, CRES), finishes such as Cadmium or Cadmium Free Zinc Nickel platings (compliant to EU Regulations) with or without dry film lubrication. They come in various styles/configurations (e.g. with one or two lugs, full size or miniatures, countersunk, corner, right-angled bodies, etc.). They conform to different U.S., European and international standards such as the US Military MS and NASM, German DIN LN, French AFNOR NF, British BS, ISO and others.

Depending on the selected nutplate, aerospace anchor nuts are produced by different manufacurers, such as HOWMET AEROSPACE (formerly ARCONIC) or PAOLO ASTORI, and others, and offered as respective OEM parts or as parts of our own labelled (AVIATIONEU NEW ERA) product lines in the case of those used in industrial applications. Sold in pieces or packs of specified number of anchor nuts per pack indicated after the letters "PK" in the product SKU.

Anchor nuts manufactured i.a.w DIN LN 29681 standard are Metric self-locking floating one-lug anchor nuts. Depending on the manufactuer, they are made from Steel Alloys (25CrMo4,DIN 1.7214.4/1.7220.3, 25CD4, SAE 4135/ 4140, AISI 4135/4137) with Cadmium plating & MoS2 low friction coating. Suitable for use in temperatures up to 235°C. Their counterparts of DIN LN29668 Standard are made from Incoloy Alloy® A-286 (aka A286 Alloy Stainless Steel, an austenitic superalloy) and can be used for temperatures  up to 425 °C. Both feature a tensile strength of 900 MPa. Offered in different Metric thread sizes from HOWMET AEROSPACE (separately listed), PAOLO ASTORI and others as OEM parts. Depending on the part number they are sold mostly in pieces but also in packs where the number of anchor nuts per pack is indicated after the letters "PK" in the product SKU.

For additional information please refer to the supplied documentation or contact us.

 A. RAYMOND TINNERMAN® & PALNUT® (aka PAL) of TINNERMAN PALNUT ENGINEERED PRODUCTS, INC. are leading brands in specialty clip-type fasteners including the world's largest selection of spring steel, stainless steel, and plastic engineered fasteners. Their fasteners replace traditional fastening methods with innovative solutions combining aesthetics and functionality. They are quick and easy to install, and do not require mounting tools.

TINNERMAN® spring steel nuts (aka speed or sheet metal nuts) are self-retaining fasteners serving the functions of both a lock washer and a nut for an easy & fast attachment of mating panels. Offered in different shapes (e.g. Flat U, J) styles & finishes they can be used as both blind and front mounting attachments without required special tools, skills or equipment, removed and reused. Riveting, welding, clinching, staking and other secondary fastening devices are eliminated.

Flat type (NAS 446) TINNERMAN® nuts are used to replace threaded nuts, lock washers, and spanner washers weighting less than other types of self-locking aircraft fasteners. Designed to fit standard AN530-AN531 type B sheet metal screws only. Can be applied faster, easier, and are vibration resistant. Provide maximum holding power at minimum cost per fastener. Turned-up ends prevent scoring of surfaces.

J-type TINNERMAN® nuts press easily into self-retained position over panel edges or in center-panel locations. Ideally suited for blind assembly or hard-to-reach installations. Offer floating alignment to speed production and and lessen rejections. Can be applied after painting or porcelainizing panels eliminating the need for masking or retaping operations.

U-Type TINNERMAN® nuts (NAS396 Series), offered in U-Shaped and U-Nut Tapped Barrel styles, are made of spring steel with phosphate-coated with three coats of olive drab paint finish unless otherwise specified. Designed to fit standard AN530-AN531 type B sheet metal screws only. Available in different screw sizes & intended for use in many non-structural applications including appliances, panel assemblies, HVAC, automotive, electronics, aerospace, marine, utility vehicles & lighting equipment. Product Features: vibration proof, easy installation, no special tools, easily disassembled, reusable, used in place of clinch or weld nuts, correct misaligned mounting holes, no masking or retaping, retain holding power, corrosion proof, won’t freeze on threads.

Sourced from their respective manufacturers OEM parts of TINNERMAN® fasteners or their equivalents (separately listed) are offered in pieces but also in convenient packs as part of our own labelled (AVIATIONEU NEW ERA) product lines with a specified number of fasteners of the respective part number per pack indicated after the letters "PK" in our product reference number (SKU). Please refer to the Product Description Section for an indicative list of available packs.

AVIATIONEU NEW ERA aircraft tolleys are offered as part of our own label product portfolio of Aircraft MRO Equipment and they are indispensable equipment for any Maintenance, Repair and Overhaul (MRO) facility.

Aircraft Build Trolley PN: 460007240 is intended for use in AIRBUS A320 Series aircraft to handle and support the MLG shock absorber after it has been removal. For more information and a quotation please contact us.

The 2024 aluminum alloy (with copper as the primary alloying element) is also known as aerospace grade aluminum. It is commonly used in aircraft structural applications due to its high strength and fatigue resistance and those requiring high stress & strain resistance in aviation and industrial applications. This alloy is stronger but less versatile than 6061, which is more corrosion resistant, easier to weld, and more suited to machining, but less strong than the 7075.

2024 aluminum alloy sheets/plates are offered as Annealed (O Temper, without heat treatment ) or Heat Treated in different tempers to attain their maximum strength, including the current listed T3 or others (such as T4,T5,T6 and T651) separately listed.

2024 T3 Alloy Aluminum sheets/plates are offered as part of AVIATIONEU NEW ERA product lines for a wide range of uses including aerospace, clock parts, computer parts, hydraulic parts, bolts, valves, nuts, pistons and gears. Sourced from quality producers, they are offered in different thicknesses & standard stocked or cut-to-order widths and lengths in inches. They can be furnished in different finishes, Untreated (Bare), Anodized or CLAD (sometimes referred to as ALCLAD) for improved corrosion resistance.

Anodization makes aluminum stronger, longer-lasting, and more durable in a wider variety of environments and applications. The surface becomes three times as hard as untreated aluminum, with increased resistance to abrasion, corrosion, and physical impact damage. CLAD sheets/plates are formed from high-purity aluminum surface layers metallurgically bonded to the aluminum alloy core material providing improved protection against fracture, fatigue crack growth & improved corrosion resistance.

Depending on the selected product & manufacturer they comply with US SAE AMS, ASTM specifications or other standards.

AVIATIONEU NEW ERA 2024 T3 Alloy Aluminum sheets/plates are sold in pieces or in bulk with US or Metric Ton (as specified) as the unit of sale. Transport to customer destination can be arranged at additional cost. Small quantities are usually shipped by air transport while for bulk quantities sea/sea-surface transport is used. Minimum Order Quantities (MOQ) depend on the required product. Approximate time for shipping is usually 1-2 months from the time of order placement and payment receipt, depending on the ordered quantity. Appearing prices are indicative per unit of sale.  Prices and availability are subject to confirmation with our co-operating suppliers before order confirmation.

Note: All AVIATIONEU NEW ERA metals are supplied free from oil stains, dents, inclusions, scratches, oxide discolorations, corrosion, or other defects, with PVC film cover, one/two side(s), depending on the producer & properly packaged for protection during the shipment.

For additional information, please refer to the Product Description section, our attached Brief Guide on Aluminum Grades & Temper Designations, or contact us.

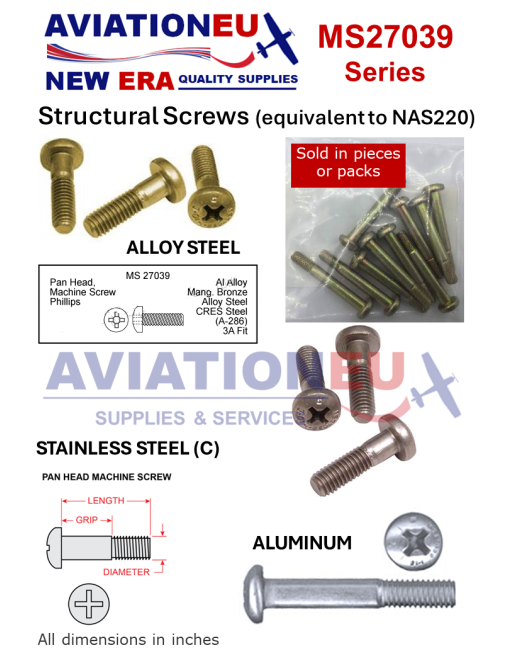

Structural screws are made of alloy steel, are properly heat treated, and can be used as structural bolts. Those commonly used in aircraft applications are manufactured to aerospace/military standards/specifications. They are offered as part of our own branded (AVIATIONEU NEW ERA) product lines structured in different series based on the standard of their conformance. Some of the screws commonly used include NAS204 through NAS235 and AN509/AN525 series.

MS24694 Series structural screws have a 100° countersunk Phillips head. They replace the respective AN509 series structural screws of materials and finishes. Minimum tensile strength for steel is 125,000 psi. They are fabricated from alloy steel and cadmium plated per specification QQ-P-416A, Type II, Class 3 or 300 Series Stainless Steel unplated designated by the letters "S" and "C" respectively in the product part number after MS24694 and before the size number.

Sourced from quality suppliers, AVIATIONEU NEW ERA MS24694 series structural screws are offered in different thread sizes and lengths in inches and sold in pieces or packs of specified number of screws designated after the letters "PK" in the product reference number (SKU). For more information, please refer to the individual product presentations, the supplied documentation or contact us.

AVIATIONEU NEW ERA ASTM A193 Grade B6 Series stainless steel stud bolts are manufactured from the ferritic grade AISI 410 stainless steel and can be heat-treated and machined to minimum of 110-ksi or 760 Mpa tensile strength. Like other fasteners in this seies, apart from their high tensile strength, they exhibit excellent resistance to corrosion, durability as well as a long functional work life. They can be used in different applications in industries that demand high tensile strength and corrosion resistance. Sourced by certified manufacturers they are competively priced and offered in different diameters and lengths. Sold by the piece (pc.) in increments of 10 pieces with Minimum Order Quantity (MOQ) 100 pieces. Appearing price is for reference only and differentiates based on wanted bolt sizes. Please contact us for a quotation.

Self-locking nuts (aka lock nuts) are widely used in applications in which motion or vibration can cause fasteners to become loose. Lock nuts conforming to DIN 980 stanard are all metal prevailing torque, hexagonal nuts and they  are available in two types, DIN 980 V-type (DIN980/V) with a distorted thread and DIN 980 M-type ((DIN980/M) with an embedded metal locking plate.

In DIN 980 V-type distorted thread nuts, certain teeth of the nut thread are deformed through die stamping resulting in the inner diameter of the nut thread being slightly smaller than the outer diameter of the bolt thread. Therefore, the friction force between the threads after the nut is tightened is far greater than that of the common thread, which can play an effective role in preventing loosing.

In DIN 980 M-type nuts, the nut is embedded with a metal locking plate after heat treatment. The inner diameter of the metal plate is slightly smaller than the outer diameter of the bolt thread. After the nut is tightened, the metal plate blocks the bolt thread, thus preventing loosening.

DIN 980 lock nuts must be tightened with tools (such as ratchet spanner) during installation. Although they can be can be used repeatedly, frequent disassemblies and installations are not recommended as the locking torque of the nut will decrease significantly.

Depending on the producer, DIN 980 lock nuts are manufactured in different metric thread sizes (M3 ~ M39) from carbon steel in various strength classes (such as  4, 6, 8, 10 and 12) or stainless steel in grades 70 and  80. They are offered in various finishes such as plain, black, zinc/yellow plated, H.D.G, and chrome plated.

Both DIN980/V and DIN980/M lock nuts are offered as part of our own (AVIATIONEU NEW ERA) product lines. Sourced from quality manufactuurers they are competitively priced and can be supplied in carbon steel or stainless steel, in different grades, metric thread sizes  and finishes .

For additional information please consult the supplied documentation.

Notes:

Different metric thread sizes are designated by the letter "M" indicating the nut's clearance diameter in mm.

Nut thread pitch indicates the distance between threads measured along the length of the nut expressed in mm.

In the case of stainless steel lock nuts, the stainless steel grades are denoted with codes such as A2 or A4 and dash numbers indicating the minimum tensile strength to be met by the material. For example, A2-70 relates to a lock nut made from 304 stainless steel with a minimum tensile strength of 700N/mm² (MPa).

AL6061 is an aluminium alloy, with magnesium and silicon as the primary alloying elements. It is one of the most common alloys of aluminum for general-purpose use. Commonly available in pre-tempered grades such as 6061-O (annealed) as well as tempered grades such as 6061-T6 or 6061-T651. It can be compared with AL5052 (the highest strength alloy of the more non-heat-treatable grades) as well as with AL6063 which  is similar in composition and mechanical properties. AL6061 main features include: heat-treatable, excellent machinability, excellent corrosion resistance, semi-smooth surface, lightweight, high-tensile strength. Commonly used in transportation components, recreation products, machinery and equipment, and consumer durables.

Extruded bars/rods from 6061 aluminum alloy are offered as part of our own branded (AVIATIONEU NEW ERA) product lines. They come in different cross sections such as round, rectangular or square. Competitively priced, they are sourced from quality producers, comply with ASTM specifications and offered as  T6/T651 tempered in different dimensions.

AVIATIONEU NEW ERA 6061 Aluminum square/rectangular bars are produced by extrusion and are offered in T6 or T651 Tempers, in different dimensions in inches and cut to order lengths in feet (in increments of one foot) to meet application requirements. They comply with ASTM-B221 and AMS-QQ-A-200/8 specifications. For additional information, please refer to our Brief Guide on Aluminum Grades & Temper Designations,  the individual product presentations or contact us.

Note: AVIATIONEU NEW ERA metals are supplied free from oil stains, dents, inclusions, scratches, oxide discolorations, corrosion, or other defects. In certain cases, metals are additionally protected with PVC film.

National Aerospace Standards (NAS) are voluntary standards developed and maintained by committees and working groups of subject matter experts from member companies of the U.S. Aerospace Industries Association (AIA). These standards have served as the foundation for the development of aircraft, spacecraft, watercraft, ground vehicles, machinery, and electronics.

NAS parts are most well-known for state-of-the-art, high-strength, precision fasteners, electrical connectors, splices and terminations, rod end bearings, and many other types of hardware and components. The NA prefix relates to metric standards.

NAS1473 Series Floating Self-Locking Two-Lug Capped Nut Plates (*) and their NAS1474 Series counterparts with reduced rivet spacing allow for a stronger, more secure hold when installing bolts on thin or unstable surfaces. These nut plates are capped, with the end of the bolt being fully protected. Both are are manufactured from cadmium plated steel or corrosion resistant (stainless) steel (CRES) by different manufacturers. They are offered  in different materials, finishes, thread sizes and dimensions in inches either as OEM parts of their respective manufacturers or as parts of our own labelled (AVIATIONEU NEW ERA) product lines.  They come with or without lubrication. Sold in pieces or packs of specified number of nut plates appearing in the product reference number (SKU) after the letters "PK".

The following code letters in their part numbers indicate the different materials and finishes used in their manufacturing ("K" indicates need for stiffening flange).

A -Steel nut & shell (dome) with Aluminum Alloy or Steel washer  cad plated per AMS-QQ-P-416, type II, class 2. Fuel Resistant Seal MIL-PRF-6855 (225 deg. F),Dry film lubricant AS5272 over cad plate.

S - Steel nut, dome and washer cad plated per AMS-QQ-P-416, type II, class 2. Fuel Resistant Seal MIL-DTL-25988 (350 deg. F). Dry-film lubricant per AS5272 over cad plate.

X - Same as A without dry film lubricant.

Y - Same as S without dry film lubricant.

C - A286 CRES nut, dome and washer passivated per AMS2700. Nut silver plated per AMS2410. Non-fuel resistant AMS3304 seal (450 deg. F).

F - A286 CRES nut, dome and washer passivated per AMS2700. Fuel resistant seal MIL-DTL-25988 (350 deg. F), dry-film lubricant per AS5272.  (350 deg. F).

R - A286 CRES nut, dome and washer passivated per AMS2700. Fuel resistant seal MIL-PRF-6855 (225 deg. F), dry-film lubricant per AS5272.

(*) also termed as plate nuts, anchor nuts or anchor plates. These terms are used interchangeably to describe the respective fasteners.

AVIATIONEU NEW ERA cladding metal alloy strips combine two or more different cladding materials to achieve the optimum of the best characteristics of the individual materials. These strips intended for use in different industrial applications. They are offered in a range of combinations of cladding materials in different thicknesses, widths and lengths meeting order requirements, they are competitively priced, sourced from certified manufacturers and produced in accordance with international standards.  Unit of measurement is 1 kilogram (kg) with Minimum Order Quantity (MOQ) 250 kilograms unless otherwise stated. Sea/sea-surface transport to customer destination is most commonly used. Appr. time for shipping: 3 months from the time of order payment. Appearing prices are indicative per unit of sale. Please refer to any attached documentation  and contact us for additional information/clarifications and quotation.

SOUTHCO® DZUS® retainers and accessories for use with SOUTHCO® DZUS® fasteners. SOUTHCO® DZUS® standard line quarter-turn retaining springs made of steel, zinc plated or stainless steel. The dash number represents the height ("H" dimension) of the spring. For cross reference between DZUS® old part numbers and respective SOUTHCO® part numbers please consult the supplied table.

The landing gears and doors used in commercial airplanes are moved by a set of actuating cylinders. For each door, a cylinder opens and closes the door. Landing gear door locks offered as  part of our own label  AVIATIONEU NEW ERA product portfolio of Aircraft MRO Equipment are high strength steel clamping tools which retain the door actuator in closed position. They fit around the actuator and secure two tension rods to the door Iinkage. For more information and a quotation please contact us.

PCC AVIBANK MANUFACTURING, INC., part of PRECISION CASTPARTS Corp.(PCC) is a manufacturer of fasteners & multi-component fastening systems & devices used on aircraft / aerospace, automotive, marine, communications, railway, computers, medical equipment, and many other applications. Their product portfolio includes Ball-Lok® quick release pins, adjustable diameter pins, adjustable diameter bolts, self-retaining bolts, struts, hold-open rods, latches, keeper assemblies, and panel fasteners. AVIBANK is a major supplier to commercial airlines and have received Parts Manufacturer Approval (PMA) from the FAA.

For more information on PCC AVIBANK product portfolio please consult the Product Description section and the supplied documentation.

RIPLEY® UTILITY TOOL® INFINITY Adjustable Cable Stripper is the industry’s most versatile, reliable and accurate adjustable heavy-duty tool for mid-span and end stripping on primary and secondary utility cables. It eliminates the need for traditional stripping knives, reducing the risk of cuts or lacerations. Its patent-pending, self-aligning design maintains optimum blade position to produce precise cuts for reliable splices & unions. Easily adjusts for 0.5″ to 2.5″ (12.7 mm to 63.5 mm) cable diameters with Standard & EPR optimised blades easily accommodating various jacket & insulation materials. Additionally it features recessed blade increasing safety & is easy replacement, adjustable blade depth & angle for greatest range of applications, detachable, ergonomic handles for use in tight spaces and optional blade depth gauge providing positive depth control while making blind cuts during mid-span applications.

The CHERRY® Nut-Plate family of fasteners offers an extensive range of head styles in a low cost, pull through style rivet. Rivet heads include the CCR/CCMR274, “Universal”, CCR/CCMR264, 100° Flush, and the CCR/CCMR244, 100° Reduced Flush head (NAS 1097). Sleeve materials include C1018 steel or A-286 CRES stainless steel. Single action installation tools are all that is required to complete this low cost fastening system. Recommended installation tools include the G29 hand tool, which is sold complete with pulling head, or the G902/G902-15 lightweight power tool with pulling heads sold separately.

For additional information please refer to the supplied documentation or contact us.
