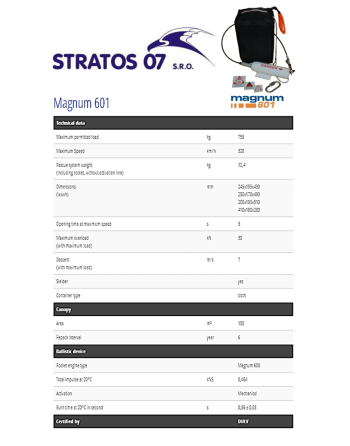

  • STRATOS 07 MAGNUM 601 Rescue System Specifications

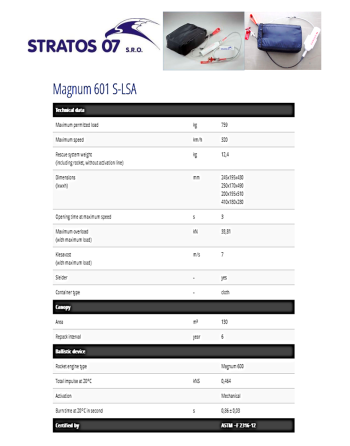

  • STRATOS 07 MAGNUM 601 S-LSA Rescue System Specifications

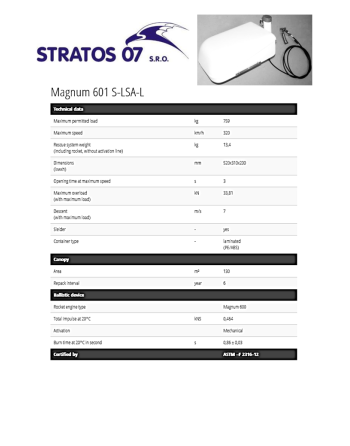

  • STRATOS 07 MAGNUM 601 S-LSA-L Rescue System Specifications

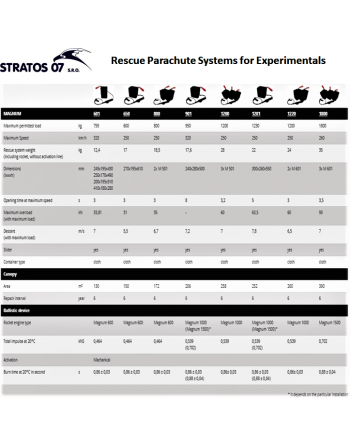

  • STRATOS 07 MAGNUM Rescue Systems for Experimentals

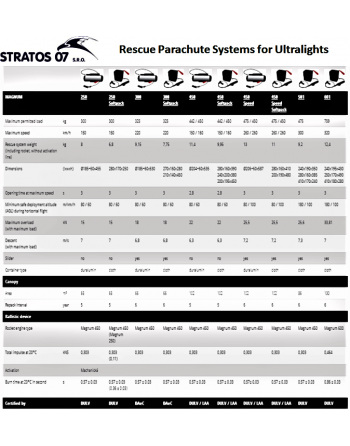

  • STRATOS 07 MAGNUM Rescue Systems for ULs

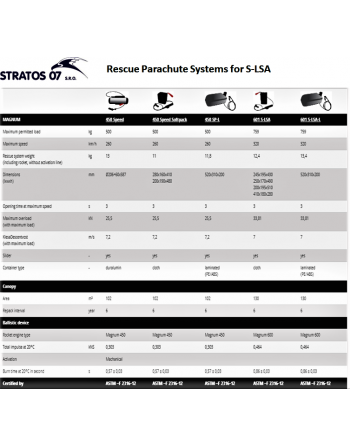

  • STRATOS 07 MAGNUM Rescue Systems for S-LSA

STRATOS 07 MAGNUM Whole Aircraft Rescue Parachute Systems (WARPS) SKU: STRATOS07-MAGNUM-WARPS

MAGNUM aircraft rescue ballistic parachute systems (also known as  Vertical Launch Systems, VLS) are manufactured by STRATOS 07 S.R.O with knowledge and long experience in the construction of system components including rocket motors. They include different series produced for many years (like 450, 450 Speed, 501, 601) & newer certificated rescue systems like Magnum 1201 & 1401 for heavier aircraft and higher deployment speeds. They are intended for use in hang-gliding, paragliding, powered hang-gliding, powered paragliding,  unpowered and powered gliders,  gyroplanes as well as a wide range of two- and multi-seat airplanes and helicopters, including Light Sport, Experimental and Ultralights with a maximum 3,960 pounds gross weight, and deployment speeds of up to 199 MPH. Magnum Ballistic Parachutes come in sofpacks or canisters. Rescue systems packed in the softpack are usually installed inside of the aircraft. Rescue systems packed in a duralminium container are installed mostly outside of the aircraft.

Please refer to tables of specifications and notes below for the selection of a right rescue system.

Notes:

The max take-off weight of the aircraft MUST NOT EXCEED the max allowable load of the rescue system.

If the aircraft Vne exceeds the max limiting speed for the rescue system deployment, mounting of the system should be done so that the pilot is informed of this speed.

MAGNUM ballistic parachute systems  are packaged in two parcels (one containing the parachute and the second containing the rocket). Because of the rocket, Haz-Mat shipping is required.

Appearing prices of MAGNUM rescue systems DO NOT INCLUDE cords between parachute and fuselage which are SOLD SEPARATELY. During the order, the length of activating cord from parachute to fuselage must be indicated. Other parts and accessories are also available at additional cost.

Mfr. P/N & Title

Volume discounts

Quantity Unit discount You Save
2 5% Up to €578.90
MAGNUM-601-S-LSA

Data sheet

Certification/Approval
Available as Certified and Non Certified product/part
Taric
8803300010 Other parts of aeroplanes or helicopters for use in civil aircraft
Unit of Measurement (UOM) / Sale
Each (ea.)

Specific References

New

1 other product in the same category

BRS AEROSPACE BRS Parachute System
Quick view

BRS AEROSPACE™ Whole...

BRS AEROSPACE™ has first invented the first Whole Aircraft Rescue Parachute System (WARPS) in 1980 currently being installed on more than 35,000 aircraft. Today the company offers a wide range of WARPS suitable as retrofits to Cessna series 172 and Cessna 182, as standard installations on Cirrus SR20 and SR22 models but also for installations on LSA and experimental aircraft.

BRS WARPS are offered in 3 different types:

Canister. The BRS Canister is waterproof when the original factory seal remains intact, making it the perfect design for exterior installations. With a six year repack schedule and versatile mounting hardware, it is one of the most popular systems.

Softpack. The BRS Softpack is best suited for aircraft manufactur-ers that require a ballistic parachute mounted inside their aircraft. When mounted internally, this system also has a six year repack schedule.

VLS - Vertical Launch System. Built specifically for aircraft with limited interior space, the VLS (Vertical Launch System) installs on top of the wing or fuselage. Upward firing works well with pusher designed aircraft

A small solid-fuel rocket is used to pull the parachute out from its housing and deploy the canopy fully within seconds. Typically on ultralight installations the rocket is mounted on the parachute container. On larger aircraft installations the rocket may be remotely mounted. The current version, BRS-6. has a separate rocket installation that can be removed from the parachute so that the parachute can be sent for re-packing without the problems of trying to ship the rocket along with it. Typically the parachute requires repacking every six years and the rocket requires replacing every 12 years.
