MITCHELL AIRCRAFT PRODUCTS, Inc. is a well known manufacturer of tachometers, gauges, and instruments the general aviation industry, built under an FAA-approved quality system.

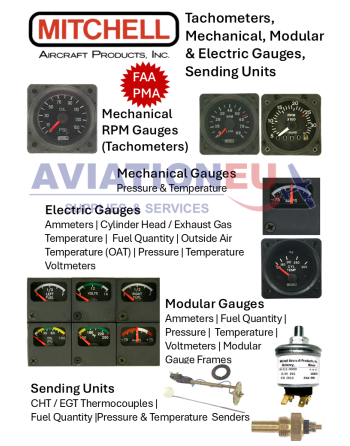

Their product range includes:

Mechanical 3-1/8″ Clockwise, & Counter-Clockwise, 2, 2-1/4″ Mechanical Recording & Electric Lighted Tachometers,

Electric Gauges (Ammeters, Cylinder Head Temperature, Exhaust Gas Temperature, Fuel Quantity Gauges, Outside Air Temperature, Pressure & Temperature Gauges, and Voltmeters,

Mechanical Pressure &Temperature Gauges

Modular Gauges (Ammeters, Blank, Fuel Quantity,Pressure, Temperature Gauges, and Voltmeters, Modular Gauge Frames. This line of FAA PMA  miniature square engine gauges is ideal for a wide variety of general aviation applications. They measure nearly 1-1/2″  and are stackable. The modular design allows them to be plugged from the front of the panel. The units are internally lighted. Complete standard panels are also available. If individual gauges are ordered, appropriate backplate with pigtail must be ordered to mount and connect the gauge. If more than one gauge are ordered to be mounted together, a special order clustering requires custom backplates.

Sending Units (CHT & EGT Thermocouples, Fuel Quantity & Pressure Senders, 1/8″ & 5/8″ Temperature Senders.

MITCHELL FAA PMA'd D1-211 Series  modular 1-1/2 " fuel quantity square  gauges can be stacked in horizontal and/or vertical rows in any position in the aircraft panel. These  modular gauges are internally lighted and are plug removable from the front of the panel for easy maintenance. Available in different sender resistances for the indication of fuel quantity in the aircraft's left or right fuel tank.

MITCHELL FAA PMA'd D1-211 Series  modular electric 12V (PN D1-211-5074) & 24V (P/N PE-111-4074) fuel quantity gauges are lighted and easily installed in a 2-1/4" panel hole. They feature a 2 year factory warranty.

The gauges and senders must be ordered separately.

For the 12V Fuel Quantity Gauge D1-211-5074 the matching sender is PS-211-8038, 10-180 Ohm. For 24V operation, P/N PE-111-4074  resistors for each instrument must be ordered.

MITCHELL Pressure Senders 80 PSI (PN PS-211-9002) and 150 PSI (PN PS-211-9040) are offered for use with D1-211-6089 and D1-211-6092 FAA PMA Pressure Gauges respectively. Both have 2 terminals (one terminal to be grounded).

MITCHELL EGT Gauge 0-1600 Deg. F, PN D1-211-6101 requires PN PS-211-8162 sender (probe).
